山推 SD22F
不含税价格
向卖家询价
6
收藏
分享
保存搜索打印
信息
类别
伐木机
品牌/型号
山推 SD22F
生产年份
2020
使用小时
5 小时
附加选项
未使用
设备所在位置
jining
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
06656305
详细信息
最新检验记录
yes
发动机
Cummins NT855-C280S10
发动机输出功率
175 kW (238 马力)
变速器
SHANTUI
运输状态重量
24700 公斤
运输尺寸(长x宽x高)
5495×3725×3402 m
制造国
中国
配件
绞盘
驾驶盘
其他信息
China shantui bulldozer SD22F forest lumbering type with winch
Shantui bulldozers are the most cost-effective products comparing with other brands bulldozers around the world.
Shantui Large Horsepower Forest Lumbering Type Bulldozer (SD22F)

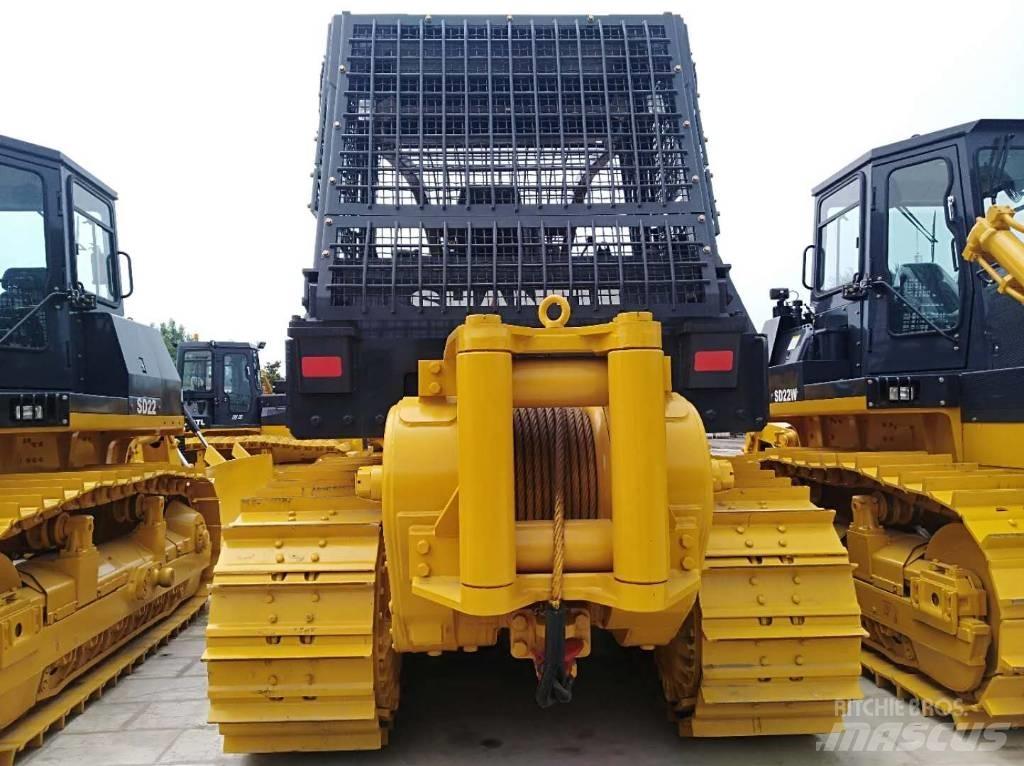

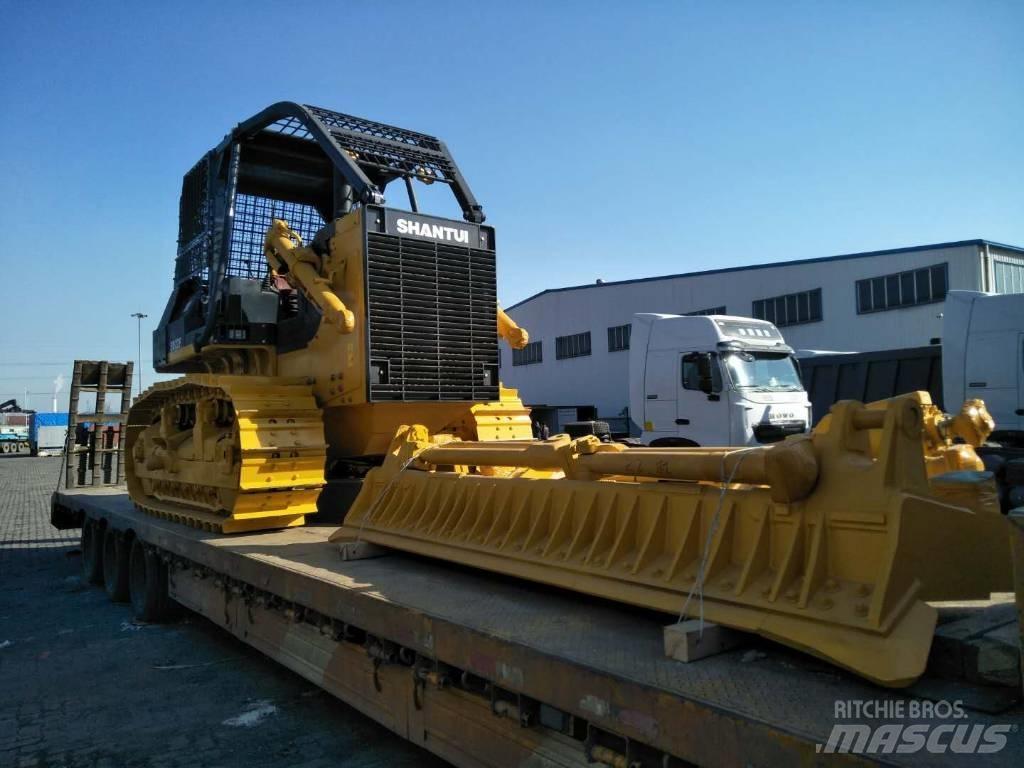

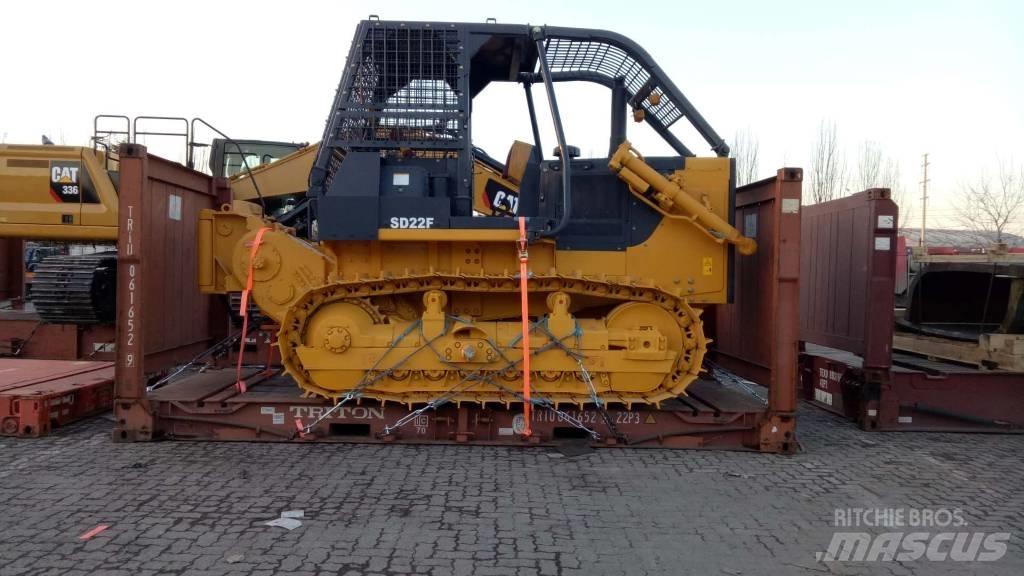

The SD22F forest type bulldozer is specially designed for operations in wooded areas. The SD22F has advanced performance, high reliability, low fuel consumption and convenient maintenance. It's equipped with a ROPS canopy and cab, a wider track (610 mm) and a mechanical winch. The SD22F has excellent maneuverability and self-rescue capabilities. The SD22F easily adapts to logging, stacking, hauling and transporting work in wooded areas.
Following is specifications for 220HP series of SD22F bulldozers
[Product Parameter]
PRODUCT SD22F
(FOREST LOGGING)
PERFORMANCE PARAMETERS Operatiing Weight (kg) 24700
Rated horsepower (kw/hp) 175/1800
Minimum turning radius (mm) 3300
Ground pressure (kpa) 66
ENGINE Model Chongqing cummins NT855-C280S10
Emission China I
Type In-line,direct injection,water cooled,4-cycles,turbocharged
No.of cylinders×Bore×stroke (mm×mm) 6×140×152
Piston displacement (L) 14
Horsepower/rpm (kw/rpm) 175/1800
Maximum torque (N.m/r/min) 1030/1250
DIMENSIONS Length(mm) 5495
Width(mm) 3725
Height(mm) 3402
TRAVELING PERFORMANCE Forward/Reverse(km/h) F1:0-3.6 F2:0-6.5 F3:0-11.2 R1:0-4.3 R2:0-7.7 R3:0-13.2
Gradeability(deg) 30
Clearance(mm) 405
TRANSMISSION Torque convertor 3-element, single stage, 1-phase
Gear box Planetary gear and powershift transmission, hydraulically actuated, forced lubrication
Main drive Spiral bevel gear, single-stage speed reduction, splash lubrication
Steering clutch Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake
Brake Wet, contracting band,foot operated with hydraulic booster
Final driver spur gear,double reduction ,splash lubrication
UNDERCARRIAGE Suspension Swing type of sprayed beam,suspended structure of equalizer bar
Track gauge (mm) 2000
Shoe width (mm) 560
Track length on ground (mm) 3050
Number of shoes (each side) 41
Pitch (mm) 216
Carrier rollers (each side) 2
Track rollers (each side) 7
WORKING HYDRAULIC SYSTEM Pressure (MPa) 14
Working pump Gear pump
Valve Multi-way valve
Bore of blade lift cylinder (mm) φ120
Bore of blade tilt cylinder (mm) φ200
TANK CAPACITY Fuel tank capacity (L) 450
Working hydraulic tank capacity (L) 110
WORKING EQUIPMENT Blade width (mm) 3725
Blade height (mm) 1315
Blade capacity (m³) 6.4
Max.Drop below ground of blade 1210
Lift height of blade 540
Type of ripper Single shank/3 shanks
Maximum digging depth of ripper (mm) Single 695 Three 666
Maximum lifting height of ripper (mm) Single 515 Three 555
[Product Strengths]
1.This product is equipped with special lumbering ROPS shelter/cab. The wide (610mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms.
2.The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator's safety.
[Applicable Working Conditions]
Forest lumbering and road barrier clearance operations
[Current sales conditions]
As one of the most popular Shantui products, this bulldozer has been sold all over the world.显示更多
