山推 sl50wn
不含税价格
向卖家询价
8
收藏
分享
保存搜索打印
信息
类别
轮式装载机
品牌/型号
山推 sl50wn
生产年份
2020
使用小时
5 小时
附加选项
未使用
设备所在位置
jining
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
8AA99556
详细信息
最新检验记录
yes
毛重
17100 公斤
最大起重能力
5000 公斤
车型
铰链式
车厢类型
封闭式驾驶室
排放标准
第IIIA阶段
发动机
WD10G220GE23
料斗容积
3 m3
发动机输出功率
162 kW (220 马力)
发动机制造商
WEICHAI
最大速度
35 千米/小时
运输尺寸(长x宽x高)
8005×3026×3410 m
原色
Yellow
状态/质保
1 year or 2000 working hours
轮胎品牌
SHANTUI
制造国
中国
成交条件
FOB, CFR, CIF, EXW
配件
空调
其他信息

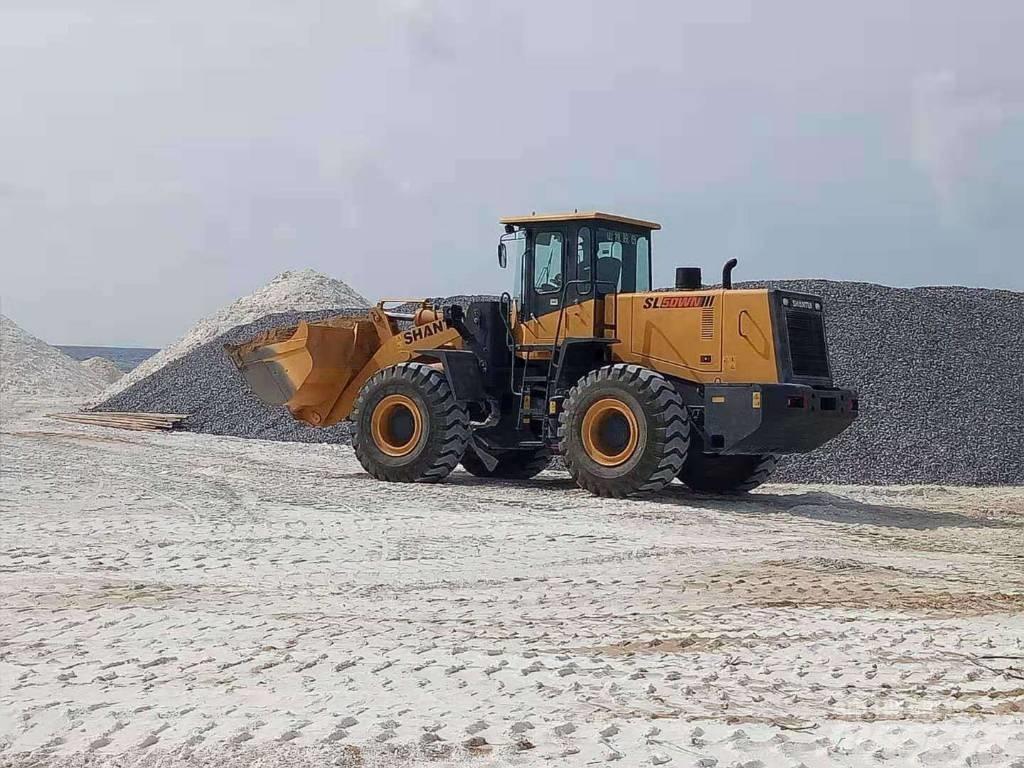

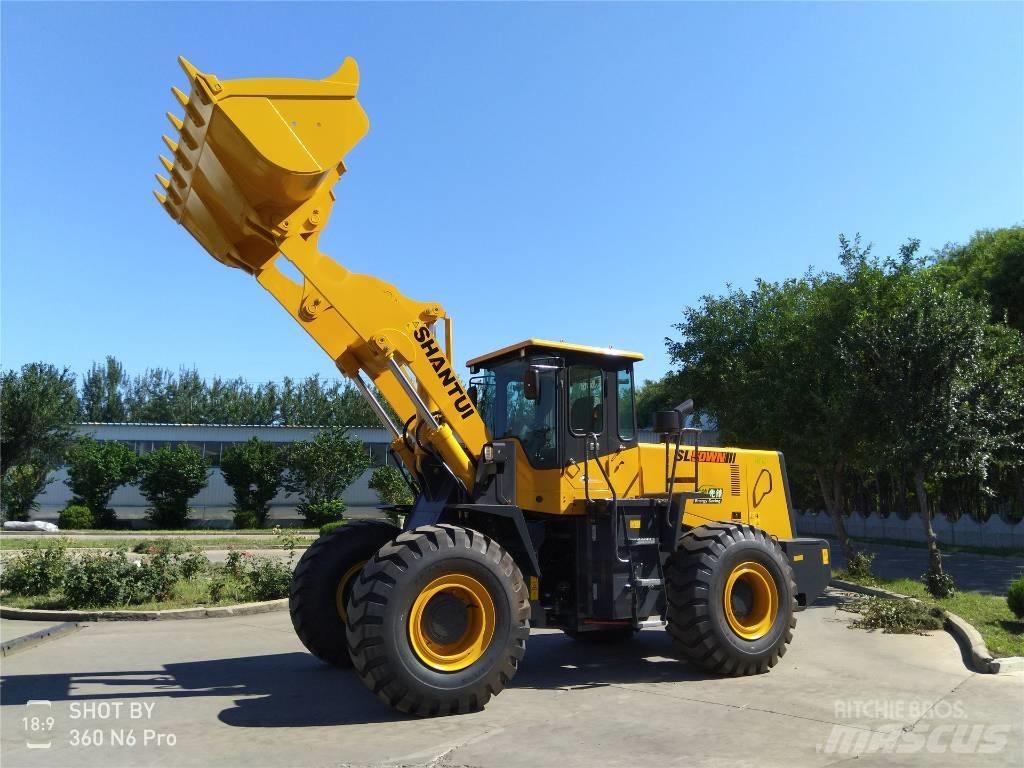

This series is Shantui's best-selling wheel loader. It offers tremendous stability and has pilot controls designed for reduced work intensity and increased safety and comfort for the operator. It has an advanced Z-type reverse tipping mechanism with large breakout force and high efficiency. It also has the latest in dual pump (combined)technology to improve fuel savings and work efficiency.
[Product Parameter]
Operating weight(kg) 17100/17180/17900
Related loading(kg) 5000
Bucket capacity (m³) 3.0
Maximum lifting force (KN) 185
Static tipping load (full turn)(kg) 10000
Dumping height (Standard /Long)(mm) 3200/3300/3700
Dumping reach (Standard /Long)(mm) 1230/1230/1270
Engine model WD10G220GE23 SC11CB220G2B1 6CTA8.3-C215
Engine type In-line, water-cooled, 4-cylinder, direct injection, turbocharged
Rated power(Kw) 162 162 160
Rated speed(rpm) 2000 2000 2200
Lifting time(s) 5.6
Lifting, dumping and lowering(s) 10.6
Forward (km/h) 1st 0-7 2nd 0-12 3rd 0-25 4th 0-35
Reverse(km/h) 1st 0-7 2nd 0-12 3rd 0-25 -
Maximum climbing ability(°) 30
Overall dimensions(Standard Arm)(mm) 8005×3026×3410
Overall dimensions(Extended Arm)(mm) 8135×3026×3410
Overall dimensions(Long Arm)(mm) 8450×3026×3410
[Technical Features]
1.Weichai new generation Blue Engine II energy-saving engine conformed to China-II emission regulation and reduces the malfunction rate by 30% and saves the fuel by >10%.
2. The single-stage two-phase three-element torque converter and the Hangzhou Advance WG180 electronically controlled transmission are adopted for power transmission, featuring good power matching and stable motions. The split structures ease the repairs and maintenances. The transmission includes four forward gears and three reverse gears. This product is especially suitable for long-distance heavy-load operations (such as earthworks and mines) and features more powerful operations and faster motions.
3. It guarantees outstanding site adaptability and flexibility and strong operation stability and can handle common heavy-load operations with ease.
4. By minimizing the torque difference between front and rear drive shafts at turns, it prevents the slip difference between front and rear wheels and ensures the coincided wheel paths between front and rear wheels to improve the service life of tires and trafficability of machine and reduce the energy loss.
5. The optimized 3,200mm loading and unloading height, features extensive operation scope of the machine. The high strength boom in plate thickness of 46mm, which is beyond the industry design, guarantees outstanding loading performance and the carrying capacity against high torsional torque. The bucket is capable of automatic leveling function to achieve high loading and unloading efficiency and low labor strength.
6. The design optimized Z-shaped single rocker tilting mechanism features powerful operations and high efficiency, with the breakout force at 185KN.
7. With the adoption of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine feature high resistance against load and distortion, high firmness and compactness, and good stability.
8. Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your choice.
9. The articulated structure of tapered roller bearings is adopted for front and rear frames, featuring reliable operations and easy maintenances.
Our Advantage
1, Multiple products: Various wheel loader series.
2, Favorable price: Factory outlet.
3, Short delivery period: Factory outlet.
4, Flexible business terms: Supported by reliable insurance and financial platforms.
5, Perfect after-sales service: Global after-sales service network.
Our Market
Nowadays, Shantui products have a quite good reputation in Africa, Europe, America, and Asia.显示更多
