3 Kare ECOSPRAY
不含税价格
6
收藏
分享
保存搜索打印
信息
类别
其他路面施工机械
品牌/型号
3 Kare ECOSPRAY
生产年份
2021
附加选项
翻新
设备所在位置
Kyiv, Київська область
国家
乌克兰
马斯客 ID
211EDF30
定价
选择币种
详细信息
其他信息

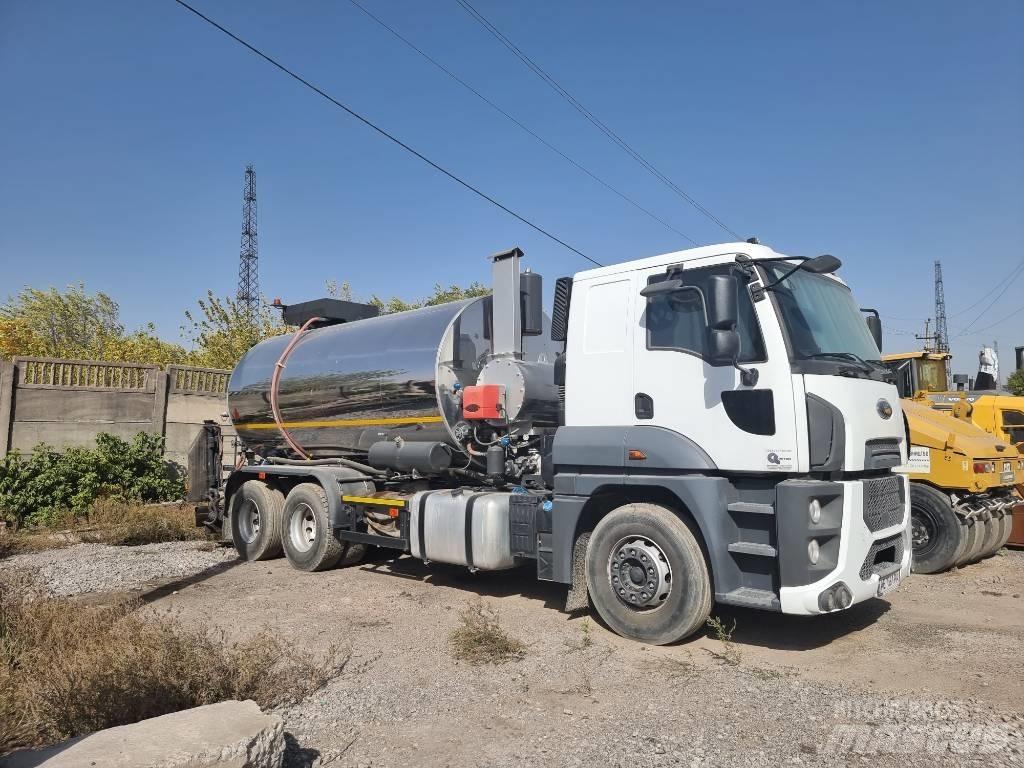

ECOSPRAY14 ASPHALT SPRAYER

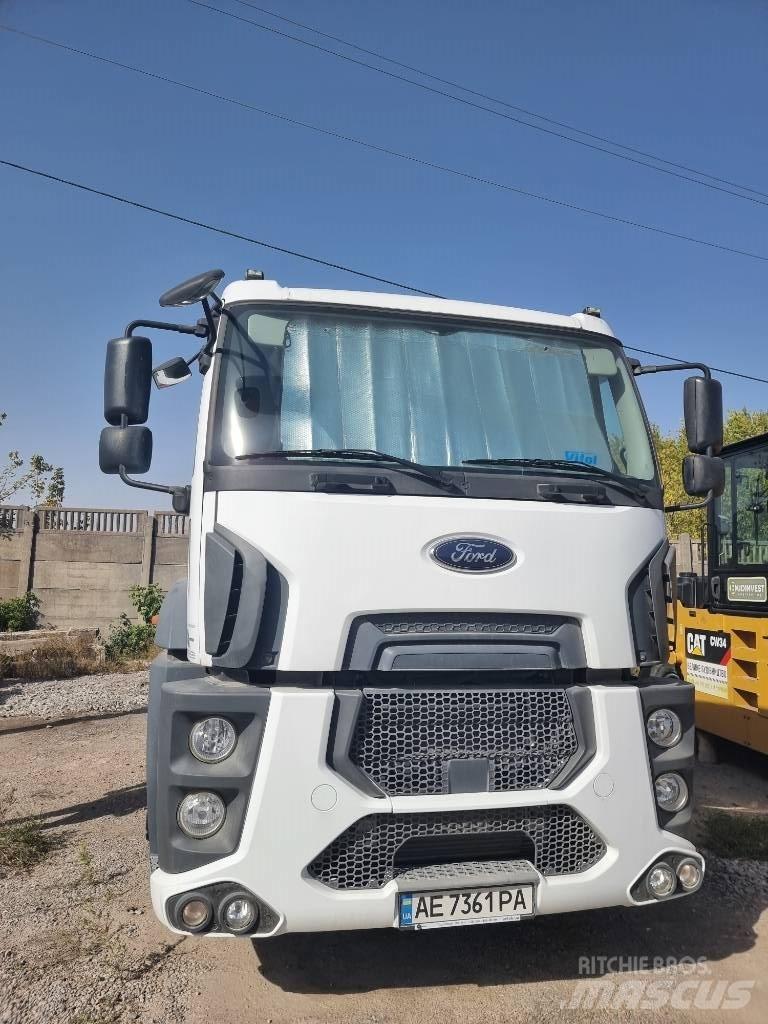

Ford Truck 2533 LR
2021 MODEL
34250 км
Tank: 14 m³
Spray Bar Length: 4.8 m
Heated by thermal oil
Automatically controlled
Sprayer Tanker
Main Features:
• 14.000 lt capacity according to chassis and capacity of the truck.
• Thermal oil heated with a diesel burner.
• 85000-110000 Kcal/h thermal oil heater
• Spraying capacity control via automatic control system.
• Perfect accuracy of spraying quantity with full balanced circulation of spray bar.
1) TANK
Quantity : 1
Capacity : 14.000 lt
Walls steel plate thickness : 5 mm
Body steel plate thickness : 4 mm
Feet steel plate thickness : 5 mm
Isolation : 50 mm rock wool, covered with 1 mm stainless steel
# of surge plates : 2
2) HEATING SYSTEM
Circulating oil : Heat transfer oil
Circulation pump : Centrifugal Type
Circulation pump motor : 1,5 kw 3000 rpm
Burner : BALTUR
Fuel Type : Diesel
Heating flame pipe : 1 ½”
Control system : Analogue thermostatic control
Hot Oil Heating Unit : Bitumen tank, bitumen pump, spray bars and circulation system
3) HYDRAULIC POWER TRANSMISION & CONTROL SYSTEM
Hydraulic pump : LINDE 55 cc proportional hydraulic pump
Bitumen pump hydraulic motor : LINDE 35 cc piston type
Hydraulic Valve : Proportional electrically controlled
Drive : via PTO on driveline of truck transmission
4) BITUMEN PUMP
Type : Helical gear type thermal oil jacketed bitumen pump
Speed Control : Digital Operator panel display ( lt/min )
Maximum pressure : 10 bar
Control system : Automatic controls from driver cabin
5) SPRAY BAR & CIRCULATION SYSTEM
Type : Square cross section with double compartment for perfect circulation
Standard Width : 3.600 mm
Main Bar width : 2.400 mm ( 600 mm 4 pcs )
Left Bar (max.) : 600 mm ( 600 mm 1 pcs )
Right Bar (max.) : 600 mm ( 600 mm 1 pcs )
Bar control system : Pneumatic controls from driver cabin
Nozzle Valve control system : Pneumatic controls from driver cabin
Nozzle types : 1 Set for Emulsion, 1 Set For Bitumen & PMB
Control system : Digital Operator panel display ( lt/m² )
6) OPERATOR PANEL
Type : Specially developed automatic control system.
Speed Control : Via Speed control radar
Control system : From driver cabin
LCD Screen : Vehicle speed (m / min), Sprayed distance (m), Pump Capacity (l / min), Sprayed capacity (lt/m2)
7) PRESSURIZED AIR
Pressurized air supply : Truck compressor
8) REAR CONTROL PANEL
Type : Manual control
9) ACCESSORIES & OTHER EQUIPMENTS
5.5 kW generator set w/ spare parts
1 set of spray nozzles for bitumen spraying
6mt length bitumen transfer flexible pipe.
6 kg fire extinguisher cylinder.
No.1 head lights for rear side for night operations.
Rotary warning light显示更多
