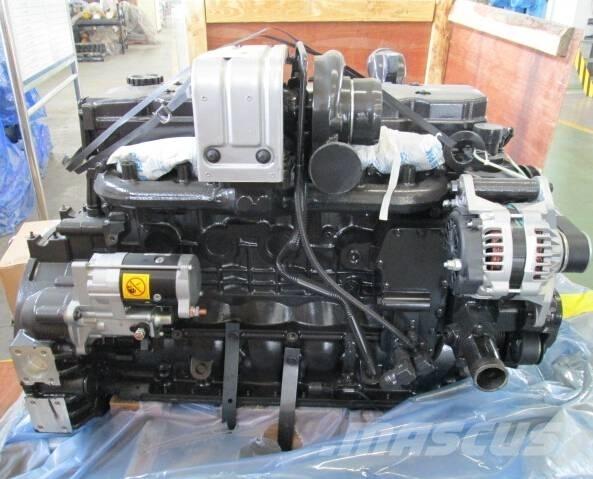

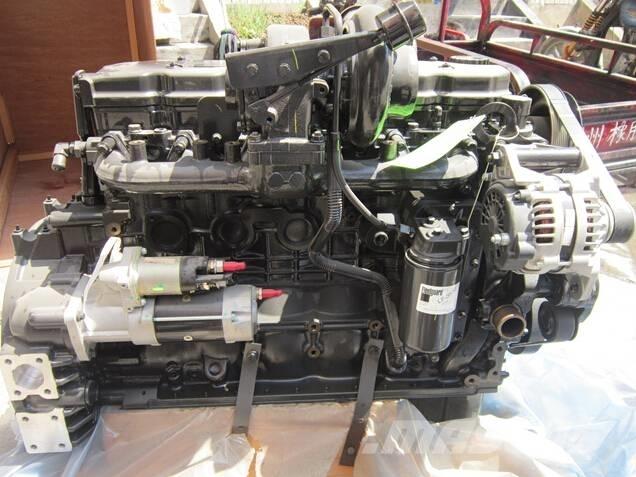

康明斯 QSB6.7-C155

General Information of Cummins QSB6.7-C155 Diesel Engine for Construction Engine Model QSB6.7-C155 Engine Type 6 Cylinders in Line Displacement 6.7 L Bore*Stroke(mm) 107 * 124 Compression Ratio 17.3:1 CPL Number 43862 Net Weight (with flywleel & alternator) 520 Kg Overall Diemension(L*W*H) 1111mm*716mm*960mm Technical Specification of Cummins QSB6.7-C155 Diesel Engine for Construction Certification Euro III Aspiration Turbocharged & Intercooled Fuel System Wuxi weihu Pump Electrical System(Starter Motor/Alternator) 12V/500A; 24V/250A Lowest Starting Temp.(with/without auxiliary system) -12℃/-24℃ Engine Cooling Fluid Volume 7.0 L Performance Data of Cummins QSB6.7-C155 Diesel Engine for Construction Rated Power/Speed 116kW/155HP @ 2200rpm Max.Torque/Speed 622 N.m @ 1500 rpm Fuel Consumption @ Rated Power 29 l/hr Idel Speed 750 rpm Max. Continuous Running Altitude 2000 m
