康明斯 KTA19-C525

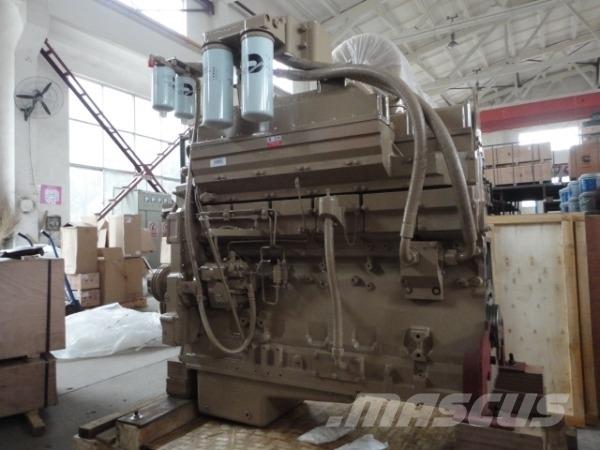

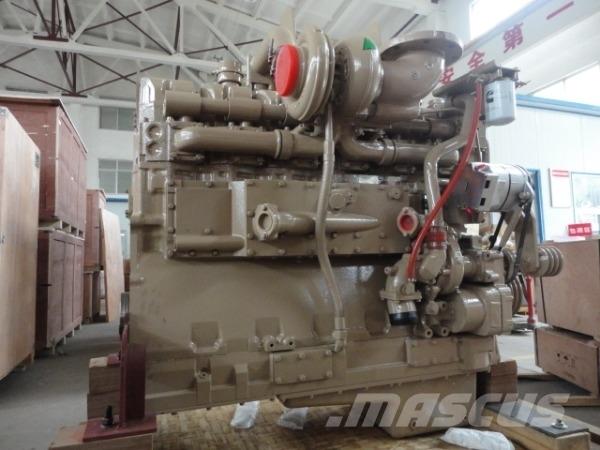

Engine Model: KTA19-C525 Engine Type: 6 Cylinders in Line Displacement: 19 L Rated Speed: 2100 rpm Rated Power: 373 kW(525 HP) Max. Torque/Speed: 1870 N.m @1500 rpm Aspiration Method: Turbocharged-Intercooled Emission Standard: Euro I Fuel Consumption: 210 g/kW.h Cummins KTA19-C525 Industrial Diesel Engine General Information Engine Model KTA19-C525 Engine Type 6 Cylinders in Line Displacement 19 L Bore*Stroke(mm) 159*159 Compression Ratio 13.9 : 1 Net Weight (with flywleel & alternator) 2073Kg Overall Diemension(L*W*H) 2151mm*966mm*1704mm Technical Specification Certification Euro I Aspiration Turbocharged-Intercooled Fuel System Direct Injection Pump Electrical System(Starter Motor/Alternator) 12V/24V Lowest Starting Temp without auxiliary system -12℃ Cooling Method Water Cooled Performance Data Rated Power 373 kW/525 HP Rated Speed 2100 rpm Max.Torque/Speed 1870 N.m @ 1500 rpm Fuel Consumption 210 g/Kw.h Max. Continuous Running Altitude 2000 m
