康明斯 C325-20

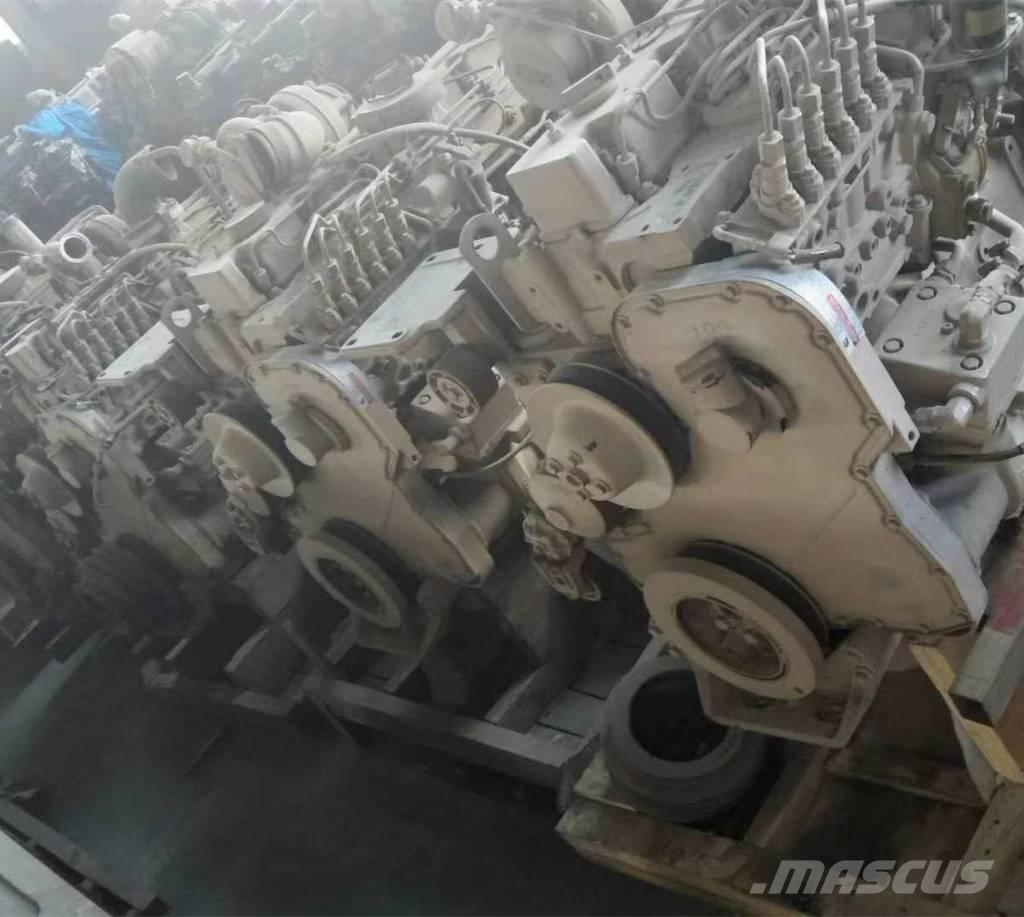

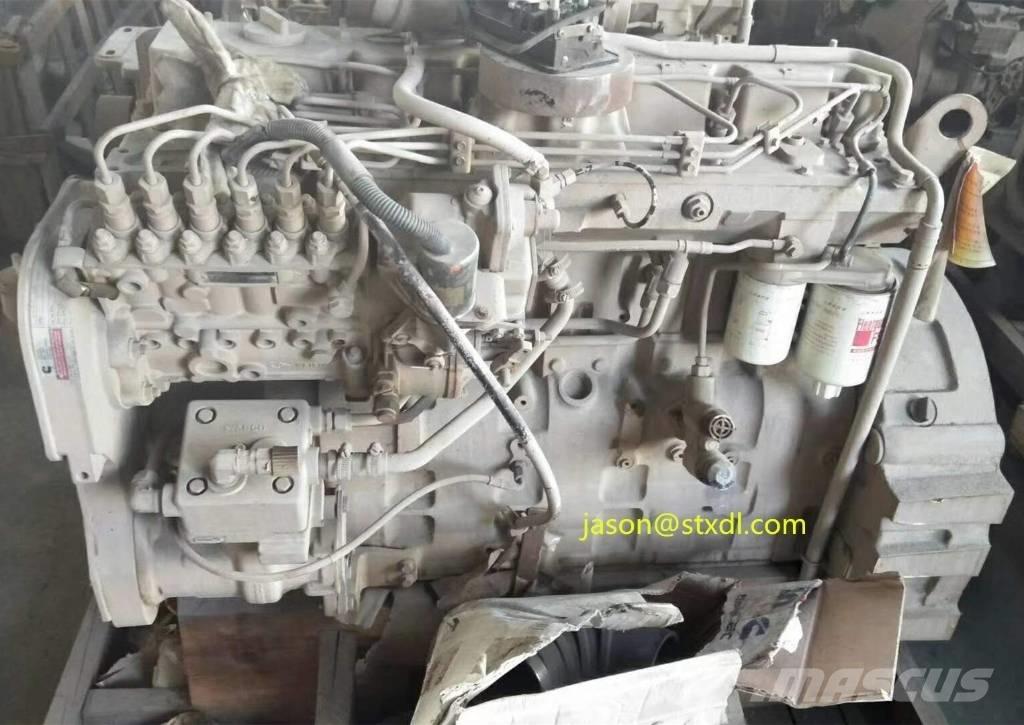

Cummins C325-20 Diesel Engine for Vehicle General Information of Cummins C325-20 Diesel Engine for Vehicle Engine Model C325-20 Engine Type 6 Cylinders, in Line Displacement 8.3 L Bore*Stroke(mm) 114 * 135 Compression Ratio 18 : 1 CPL Number 8484 Net Weight (with flywleel & alternator) 665 Kg Overall Diemension(L*W*H) 1129mm*719mm*1082mm Technical Specification of Cummins C325-20 Diesel Engine for Vehicle Certification Euro II Aspiration Turbocharged & Air-Air Inter-cooled Fuel System Bosch P7100 Pump Electrical System(Starter Motor/Alternator) 24V/510A Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃ Engine Cooling Fluid Volume 12.3 L Performance Data of Cummins C325-20 Diesel Engine for Vehicle Rated Power/Speed 239kW/325HP @ 2200rpm Max.Torque/Speed 1175N.m @ 1400 rpm Fuel Consumption @ Rated Power 65.4 l/hr Idel Speed 750±100 rpm Max. Continuous Running Altitude 2000 m
