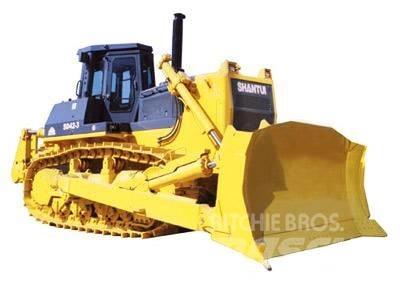

山推 SD42-3

ITEM 　UNIT SD42-3 L×W×H (Ripper not included) mm 9630×4315×3955 (Ripper included) Operating weight (Ripper not included) t 53 (Ripper included) Engine - Cummins KTA19-C525 Rated power kW/rpm 310/2000 Gradeability ° 30 Blade type - Semi-U blade Blade width mm 4315×1875 Dozing capacity m3 16 Ma× drop below ground of blade mm 700 Lift height of blade mm 1545 Ripper type - Single ripper Ripping depth of ripper mm 1400 Lifting height of ripper mm 1130 Number of carriers (each side) - 2 Number of track rollers (each side) - 7 Number of track shoes (each side) - 41 Width of track shoe mm 610 Track gauge mm 2260 Ground length and ground pressure mm/MPa 3560-0.123 Pitch mm 260.35 Forward speed km/h 0–3.7 0–6.8 0–12.2 Reverse speed km/h 0–4.4 0–8.2 0–14.8
