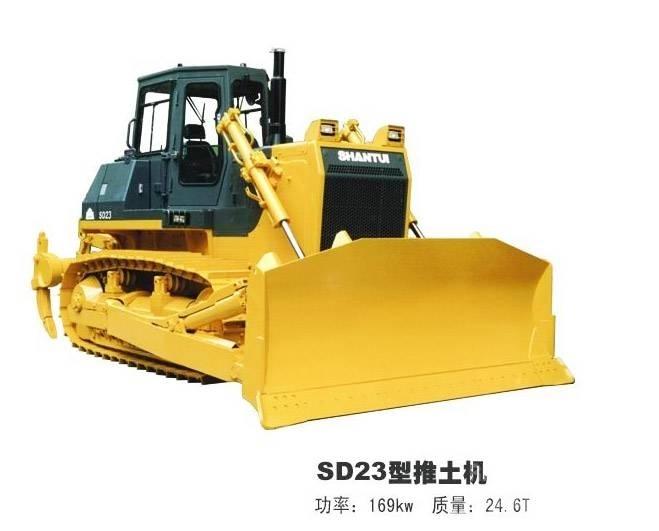

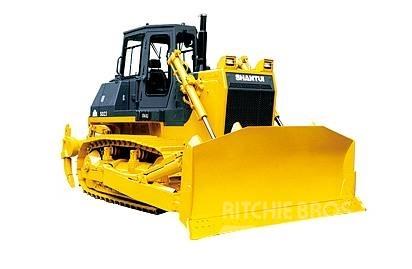

山推 SD23

ITEM 　UNIT SD23 L×W×H (Ripper not included) mm 5874×3725×3360 Operating weight (Ripper not included) t 24.6 Engine - Cummins NT855-C280S10 Rated power kW/rpm 169/2000 Gradeability ° 30 Blade type - Straight tilt bladeU-bladeAngle blade Blade width mm Straight tilt blade 3725×1395U blade3860×1379 Angle blade4365×1107 Dozing capacity m3 Straight tilt blade 7.8 U blade 8.4Angle blade 5.4 Ma× drop below ground of blade mm 540 Lift height of blade mm 1210 Ripper type - Single ripperThree-shank ripper Ripping depth of ripper mm Single ripper 695Three-shank ripper 666 Lifting height of ripper mm Single ripper 515 Three-shank ripper 555 Number of carriers (each side) - 2 Number of track rollers (each side) - 7 Number of track shoes (each side) - 39 Width of track shoe mm 560/610/660 Track gauge mm 2000 Ground length and ground pressure mm/MPa 2840-0.078 Pitch mm 216 Forward speed km/h 0–3.8 0–6.8 0–11.8 Reverse speed km/h 0–4.9 0–8.5 0–14.3
