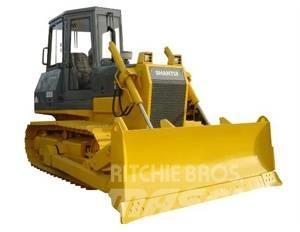

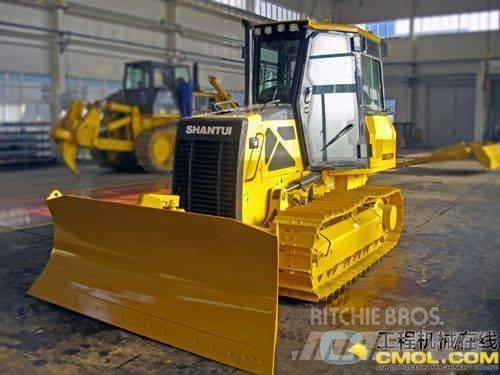

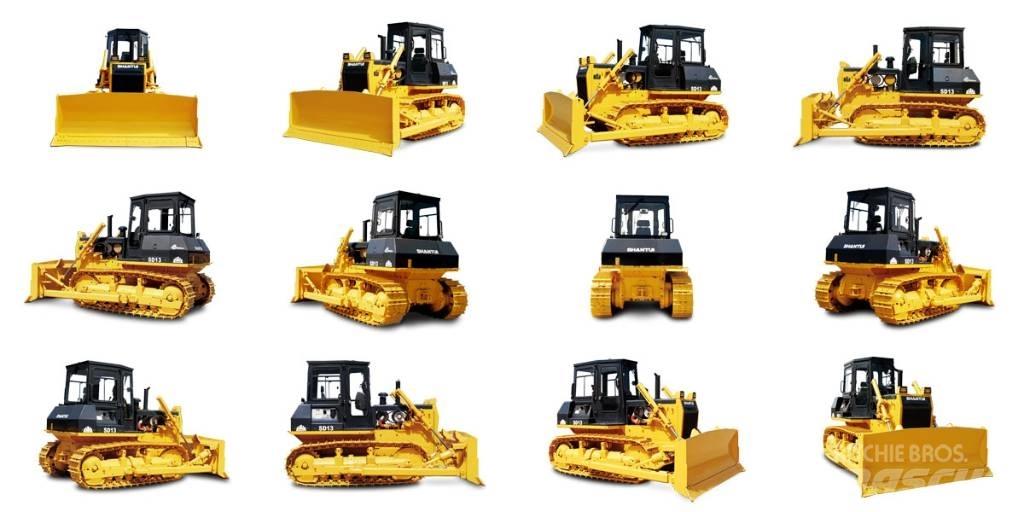

山推 SD08 Series

ITEM UNIT SD08-3 L×W×H (Ripper not included) mm 3973×2553×2785 Operating weight (Ripper not included) t 7.65 Engine - Weichai WP4G90E235 Rated power kW/rpm 63/2350 Gradeability ° 30 Blade type - Straight tilt blade Blade width mm 2553×890 Dozing capacity m3 2.02 Ma× drop below ground of blade mm 383 Lift height of blade mm 850 Ripper type - - Ripping depth of ripper mm - Lifting height of ripper mm - Number of carriers (each side) - 1 Number of track rollers (each side) - 6 Number of track shoes (each side) - 41 Width of track shoe mm 460 Track gauge mm 1450 Ground length and ground pressure mm/MPa 2185-0.038
