BIK FC-70
不含税价格
向卖家询价
9
收藏
分享
保存搜索打印
信息
类别
其他货车
品牌/型号
BIK FC-70
生产年份
2025
附加选项
未使用
设备所在位置
Milford, Massachusetts
国家
美国
马斯客 ID
71802990
详细信息
电源类型
柴油机
发动机输出功率
357 kW (485 马力)
发动机制造商
PACCAR
变速器
Eaton Ultrashift Plus Automated 18 spd
前轮尺寸
425 / 65R22.5
其他信息
Boom Details

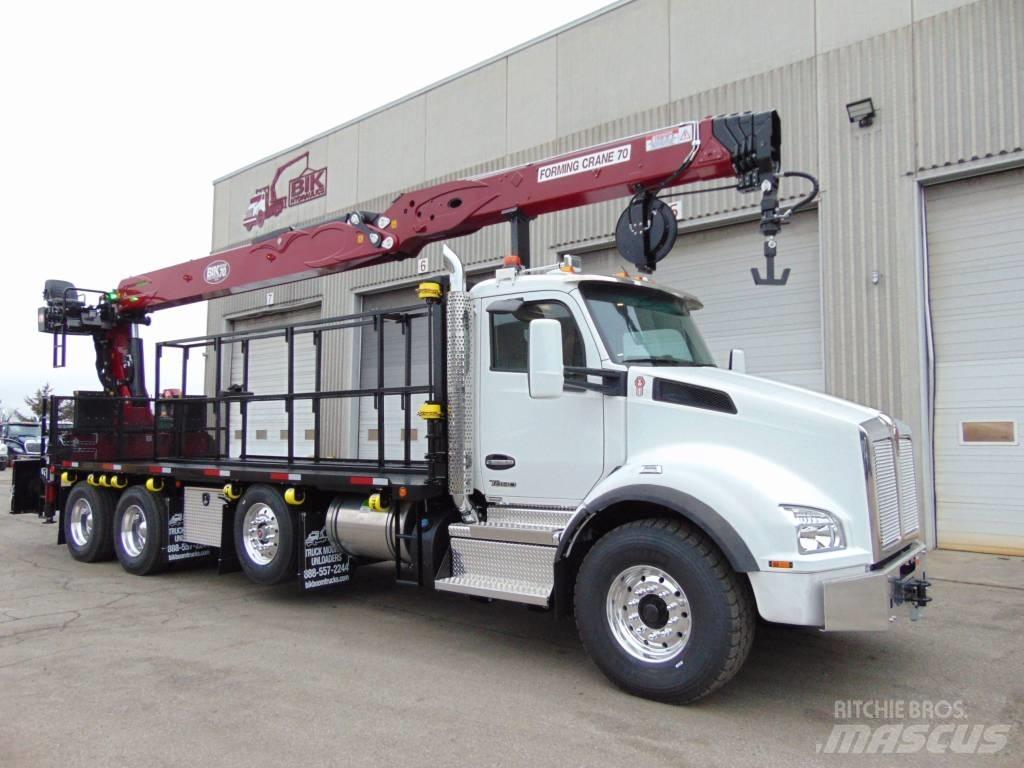

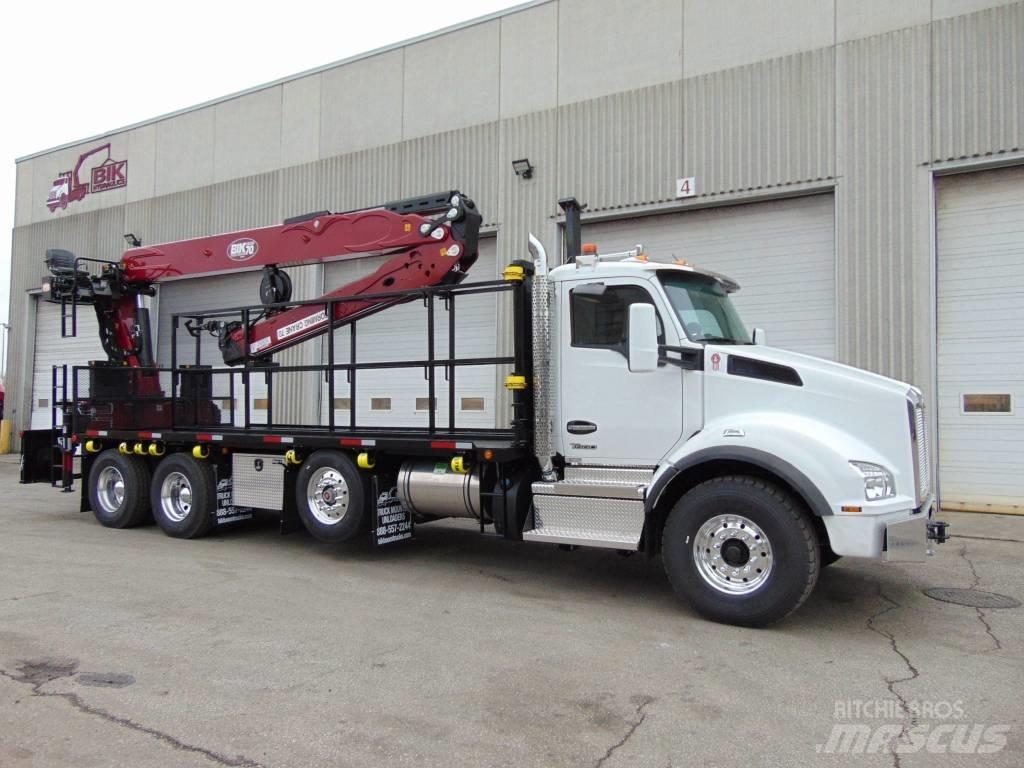

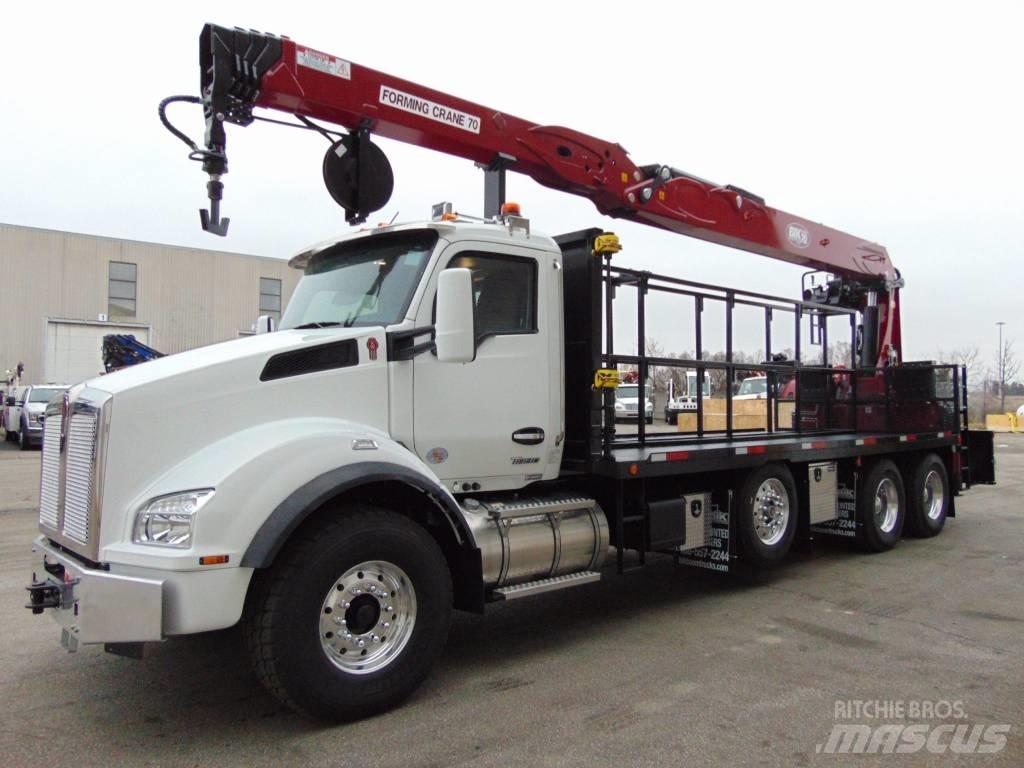

NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER
4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
Horizontal Capacities are:
10,340 lb @ 22’
4,300 lb @ 45’
2,600 lb @ 60’
2,250 lb at max reach
Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
Hydraulic Hook Rotator with T-Hook at End of Boom
DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase.
Deck Details
NEW – 22’6″ LOW PROFILE STEEL CHECKER PLATED DECK
Installed on Pre-Engineered 6” Main Sill Sub Frame & Extension with X-Braces for Torsional Support
Tied to Truck Frame by Sheer Plating at Front, Center and Rear
Top welded 3” cross members
Checker plate steel deck surface
66” + headboard, Removable Center Divider with 4-vertical mounted winch straps to wrap around cages for transport
8 – under deck sliding tie-down winch straps on passenger side
Winch bar holder and winch bar, dual ladder access at front
Reflectors and side lights as required by DOT standards.
Truck Details
NEW – KENWORTH T880 4-AXLE TRUCK – 86,000 lbs GVWR
Cab White, Paccar 485 hp, 1,650 ft/lb Torque
Jake Brake, Eaton Ultra Shift Plus 18 Spd Automated Transmission
20,000 lb Front Steer Axle with 425/65R22.5 Tires on Aluminum Rims
20,000 lb Self-Steer Pusher Axle Installed Ahead of Tandem
46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
54” Spread at TA, Double Frame
Options Including: A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP3 w/Bluetooth, Air Driver’s Seat and Standard Pass Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock-ups, Trailer Air Tow Package, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc…
Also Included:
Two Sets of Aluminum Stabilizer Pads with Holders Mounted on Truck
24” Aluminum Checker Plate Storage Box, Hydraulic Rotator
1” Drawplate Installed at Rear显示更多
BIK Boom Trucks - Etobicoke, ON
41 Claireville Drive M9W 5Z7 Toronto Ontario 加拿大
