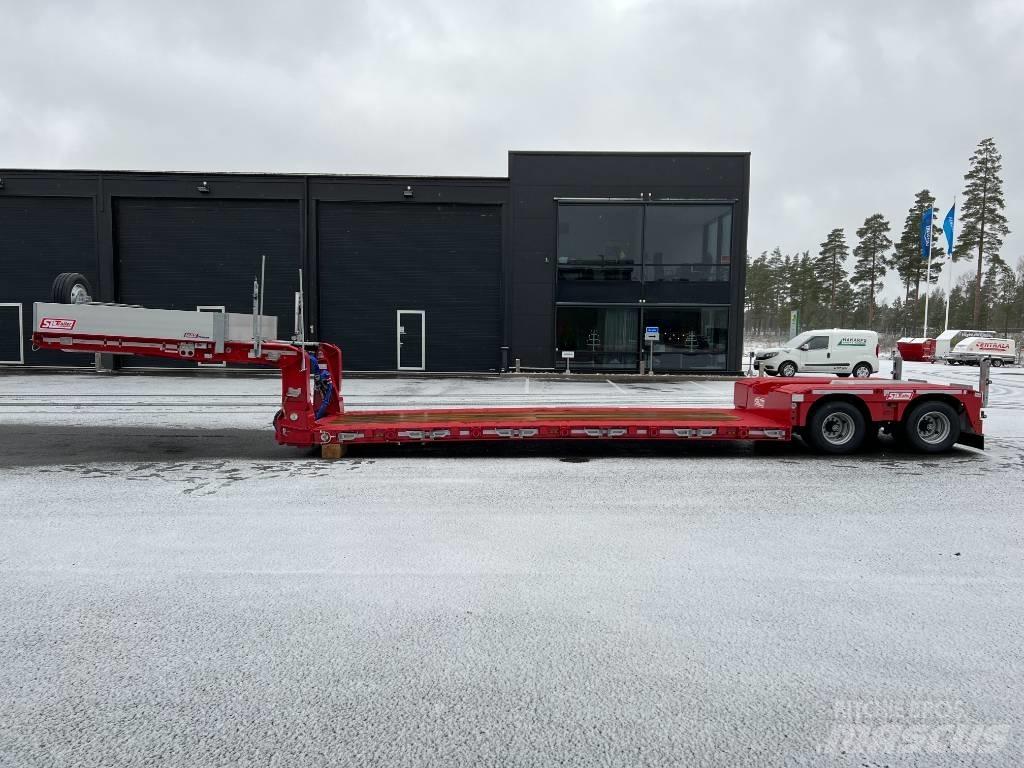

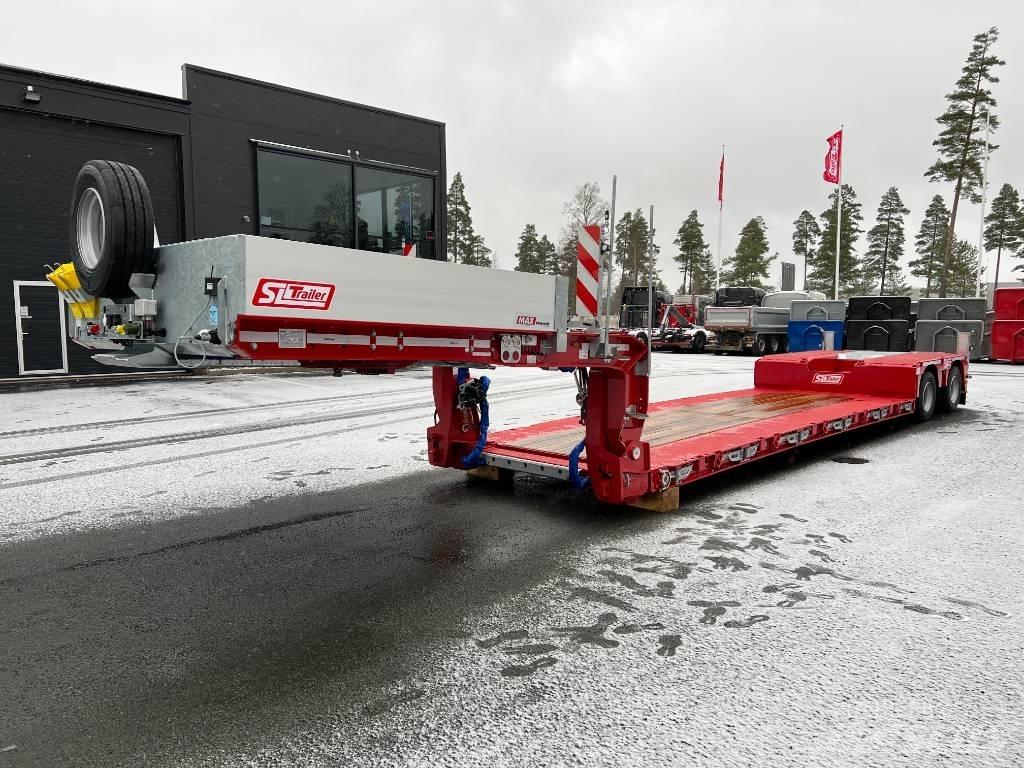

MAX Trailer 510-Z-2L

鼓式制动器, 中央润滑系统, 强制转向装置

• Totalweight: 47 000kg • Kingpin: 23 000kg • Axels: 24 000kg • Gooseneck length: 3 750mm • Lowbed length: 6 850mm • Extension: 5 500mm • Over axles: 2 765mm • Loading height lowbed: +/- 325 mm • Loading height over axles: 900mm • Width: 2 540mm • Coupling height 1200mm • 2" kingpin • 12-tons BPW axles with airsuspension and drum brakes • Hydraulic steered axles from KP or with remote controll • Tyre 245/70R17,5 on steel rims 3PMSF according to choice of manufacturer - 1pcs spare wheel on front wall • Central greasing 2 pumps- BEKAMAX • Multifaster coupling for hydraulic between gooseneck and lowbed • 5x2 stake pockets in the outer beam - for 100 x 50mm stakes • Prepared for container locks in the loading platfrom (without holders and locks) • Galvanized outriggers, 230mm / side • Aluminiumsideboards on the gooseneck, 400mm high • 1 pcs toolbox on the gooseneck 1 350 x 400 x 400mm • 2 pairs warning boards extendable of 400mm with LED position light and holder to put a flashing beacon • Load manometer for the axles • Nato socket on the front wall for the hydraluic functions • Partial HRM - metallization RAL- 3002 - Röd
