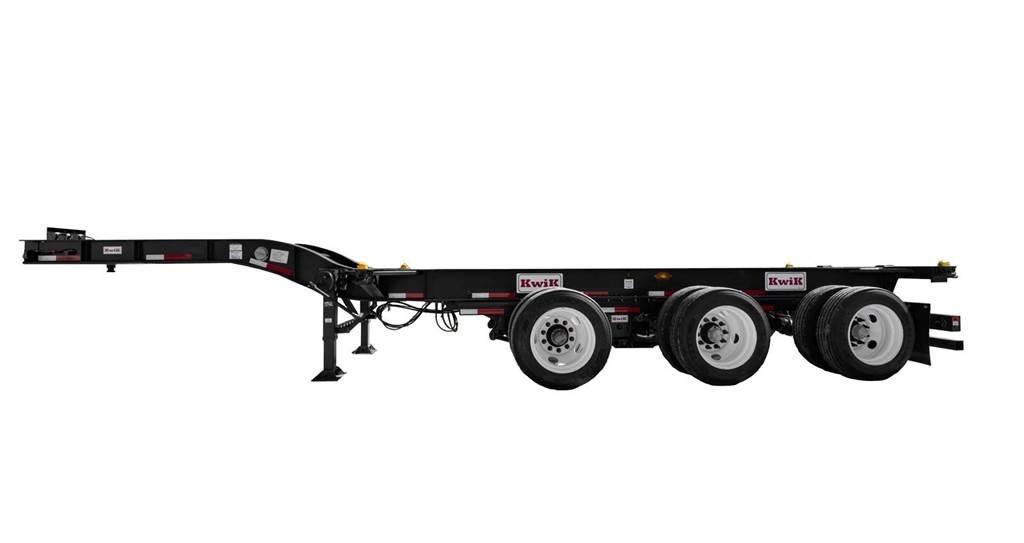

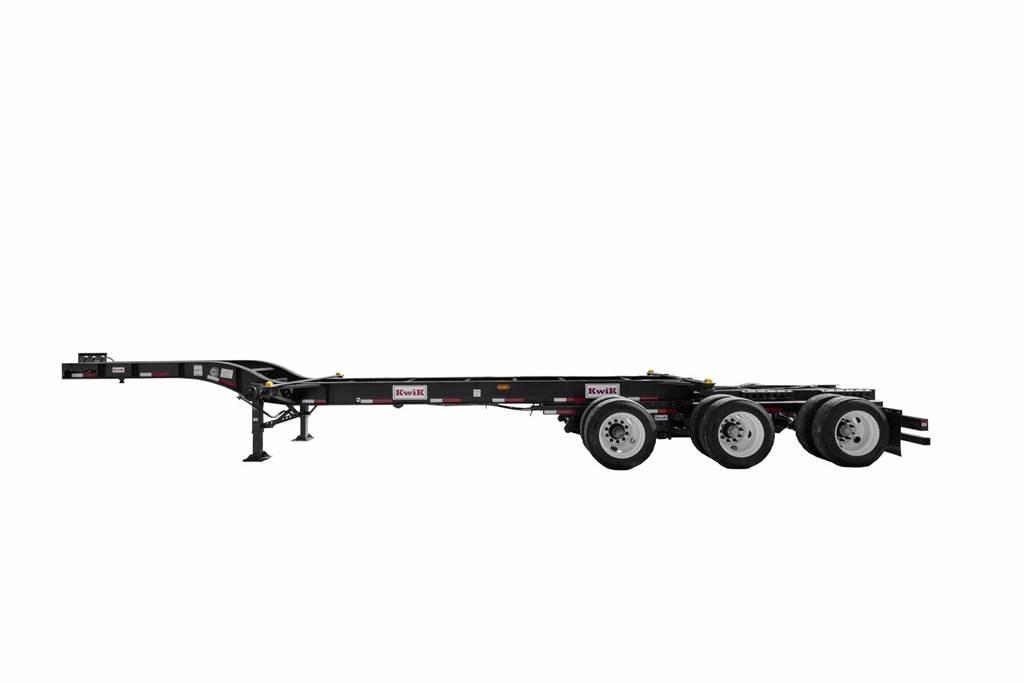

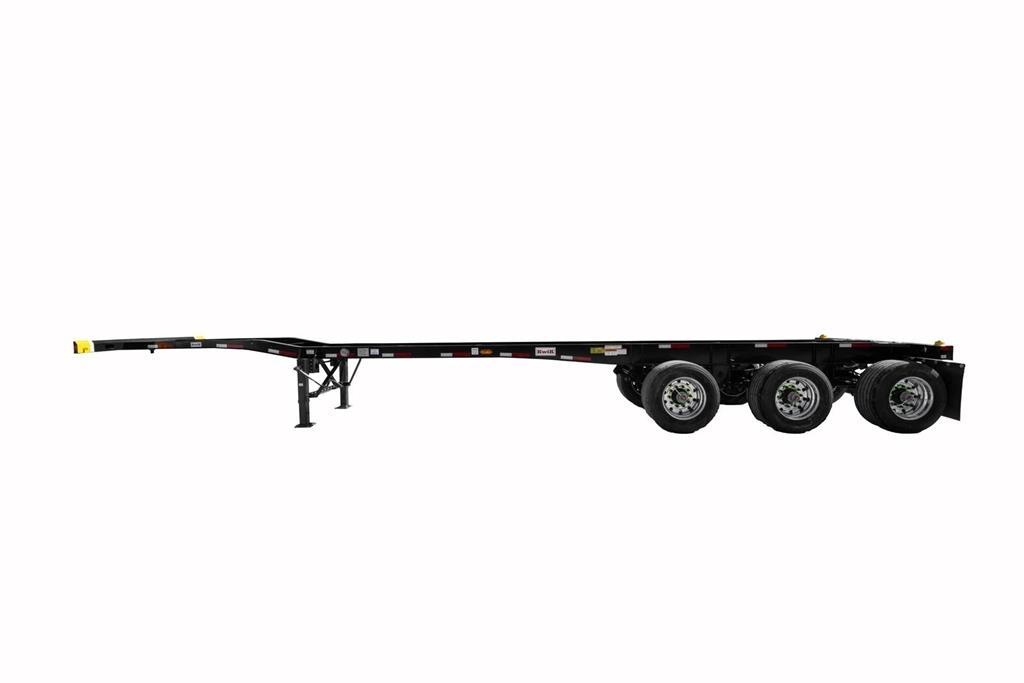

2025-2026 40ft long Gooseneck Triaxle Spring Suspension Slider Chassis extends from 33ft (closed) to 40ft PURPOSE: Designed to carry 20ft ISO TANK CONTAINERS weighing up to 60,000 lbs (conditions apply) CONTAINERS: (1) loaded 20ft ISO Tank Container STANDARD DIMENSIONS: LENGTH: 40’ WIDTH: 102” FIFTHWHEEL HEIGHT: 47” KINGPIN SETTING: 14” AXLE SPREAD: 120” DECK HEIGHT: 44” TARE WEIGHT: 8,500 LB (+/- 3%) (Chassis only) GVWR: 68,500 LB (Chassis, Container & Net Payload) – conditions apply FRAME RATING: 69,500 LB GCWR: 80,000 LB (Chassis, Container, Net Payload & Tractor) STANDARD SPECIFICATIONS / FEATURES: MAIN BEAMS: Fabricated main beams Structural and fabricated Slider Frame Assembly CROSSMEMBERS: Fabricated KING PIN: 5/16” plate with 2” diameter double spool king pin. SLIDER: Frame on Frame slide, (friction slide – grease applied for sliding purpose) TWISTLOCKS: Standard Retractable & Non-Retractable twistlocks LANDING GEAR: Standard 2-speed 19” Landing Gear, crank handle on driver side SUSPENSION: 60” spread spring suspension with single leaf springs AXLES: 71 ½” Track, 5” Round, 22,500 lbs with 60” centers HUBS & DRUMS: Standard steel hubs & cast drums – 10-hole Hub-Piloted BRAKES: 16 ½” X 7” quick-change brakes with non-asbestos lining WHEELS: (12) 8.25 X 22.5 10-hole Radial Steel disc Wheels TIRES: (12) 255/70R22.5 - 16 Ply Radial Tires BRAKE SYSTEM: Standard Valve System for service and emergency brakes. 4S/2M WABCO/Meritor ABS system w/RSS (Roll stability system) ELECTRICAL SYSTEM: 12v w/modular wiring and plug type connectors. 7-way pin electrical plug for ABS System. Sealed wiring harnesses. LED Lights with flange mounts. PAINT: Zinc rich primer with Topcoat Urethane finish COLOR: BLACK MISCELLANEOUS: Mudflaps, logos, decals & Unit Numbers KWIK Conspicuity Striping Registration Holder
