BIK FC-67
不含税价格
向卖家询价
6
收藏
分享
保存搜索打印
信息
类别
起重车
品牌/型号
BIK FC-67
附加选项
未使用
设备所在位置
Milford, Massachusetts
国家
美国
一般等级
1
2
3
4
5
马斯客 ID
90E09C39
详细信息
其他信息

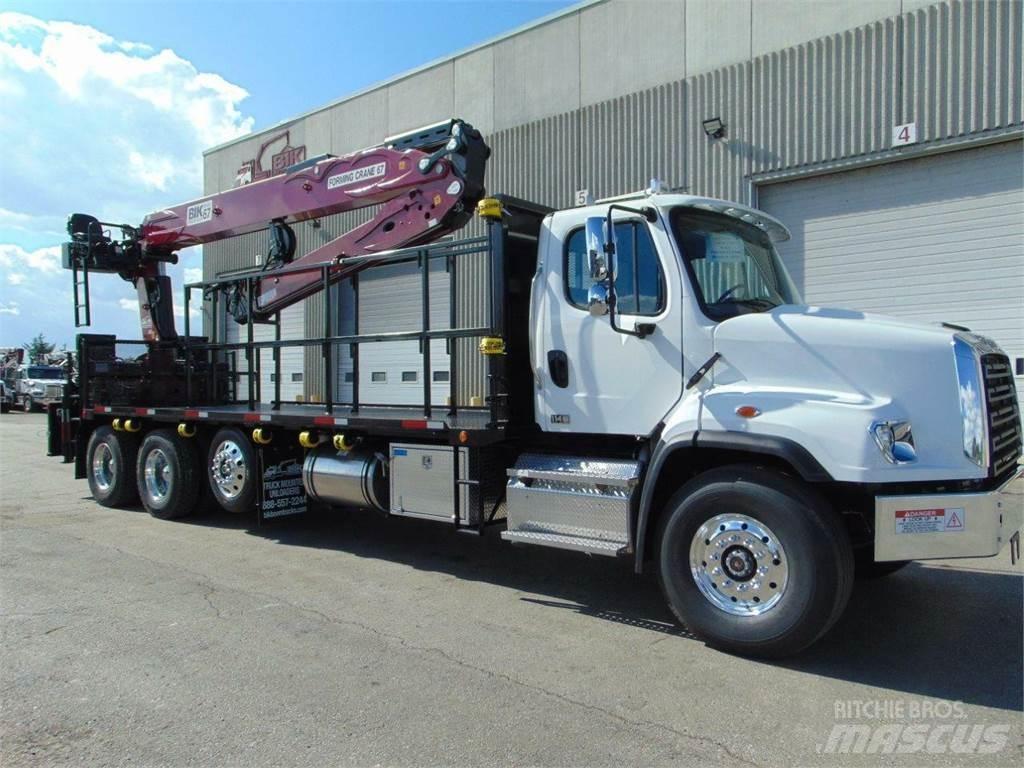

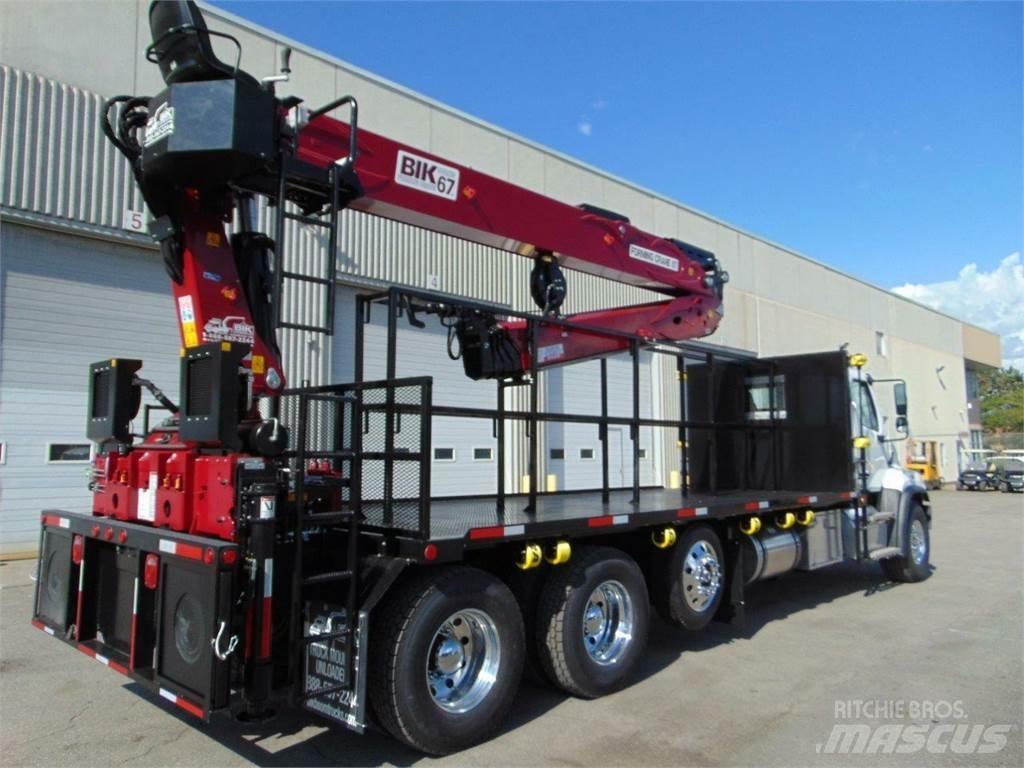

BOOM DETAILS
N
EW – BIK SERIES FORMING CRANE FC-67 UNLOADER
4 Hyd. Extensions to 67’ Horizontal Reach
Rearward 70’ Simulated Reach with Reverse-Mount
Horizontal Capacities are:
7,400 lb ... 28’
3,100 lb ... 55’
2,600 lb ... 62’
2,300 lb ... 67’
Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
Rack & Pinion Type 390 Degree Non-Continuous Rotation, Mechanical Stop Between Main Boom and Boom Unit
Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
Two Hydraulic Oil Coolers, High Pressure Return Filter and Return Line Filter
Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
Hydraulic Hook Rotator with T-Hook at End of Boom
SCANRECO Proportional Radio Remote Control Included: 2 Batteries, In-Cab Charger, and Back-up Cord
Crane Painted BIK Red, Load Chart on Boom in FT. & LBS.
Load Tested & Installed End-of-Frame on Pre-Engineered Sub Base
DECK DETAILS
NEW –
22’ 4” X 102” STEEL CHECKER PLATE FLAT DECK INSTALLED
Checker Plate Steel Deck Surface
66”+ Headboard with Removable Center Divider and 2” Lip Around Deck for Form Cage Handling
24” Removable Rear Tailboard, Winch Bar Holder and Winch Bar
Ladder, Reflectors and 5 Side Lights
Integrated Torque Box with X-Bracing and Sheer Plating Mount to Frame for Optimum Stability
Primed/Painted Gloss Black

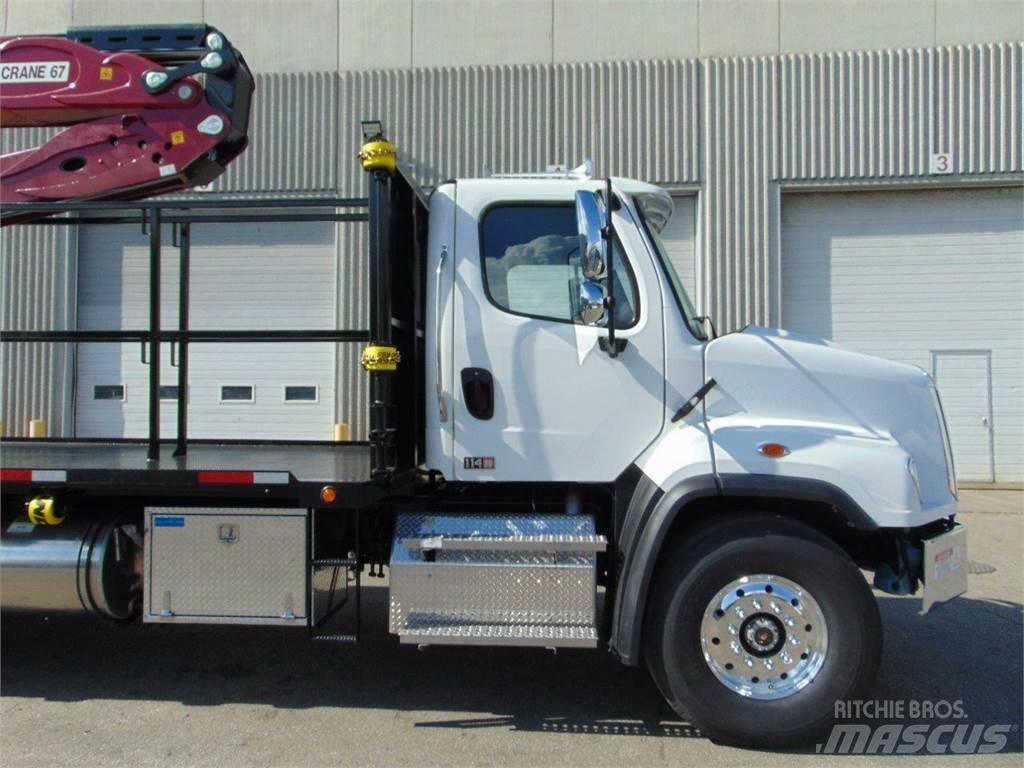

TRUCK DETAILS
New
– Freightliner 114SD 4-Axle Diesel Truck:
79,000 lb GVWR
12L Cummins Desiel, 460 hp,
Fuller 8LL stand trans
20,000 lb fronts with 425/65R22.5 Front Floatation tires on
Alum rims
13,000 lb self steer lift axle ahead of t/a
46,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on aluminum rime, Double-Frame Chassis
Truck Features Include:
Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…
Also Included:
Two sets of Aluminum stabilizer pads with holders mounted on truck
24” aluminum checker plate storage box, hydraulic rotator
1” drawplate installed at rear
显示更多
BIK Boom Trucks - Milford, MA
177 Central St. 01757 Milford Massachusetts 美国
2
