三一重工 SCP160H4
不含税价格
3
收藏
分享
保存搜索打印
信息
类别
越野叉车|叉装车
品牌/型号
三一重工 SCP160H4
生产年份
2020
使用小时
384 小时
设备所在位置
DeSoto, Texas
国家
美国
一般等级
1
2
3
4
5
马斯客 ID
2D5A816D
定价
选择币种
详细信息
电源类型
柴油机
最大起重能力
15876 公斤
变速器
Dana HR32000
发动机
QSB 6.7
发动机输出功率
165 kW (225 马力)
发动机制造商
Cummins
其他信息

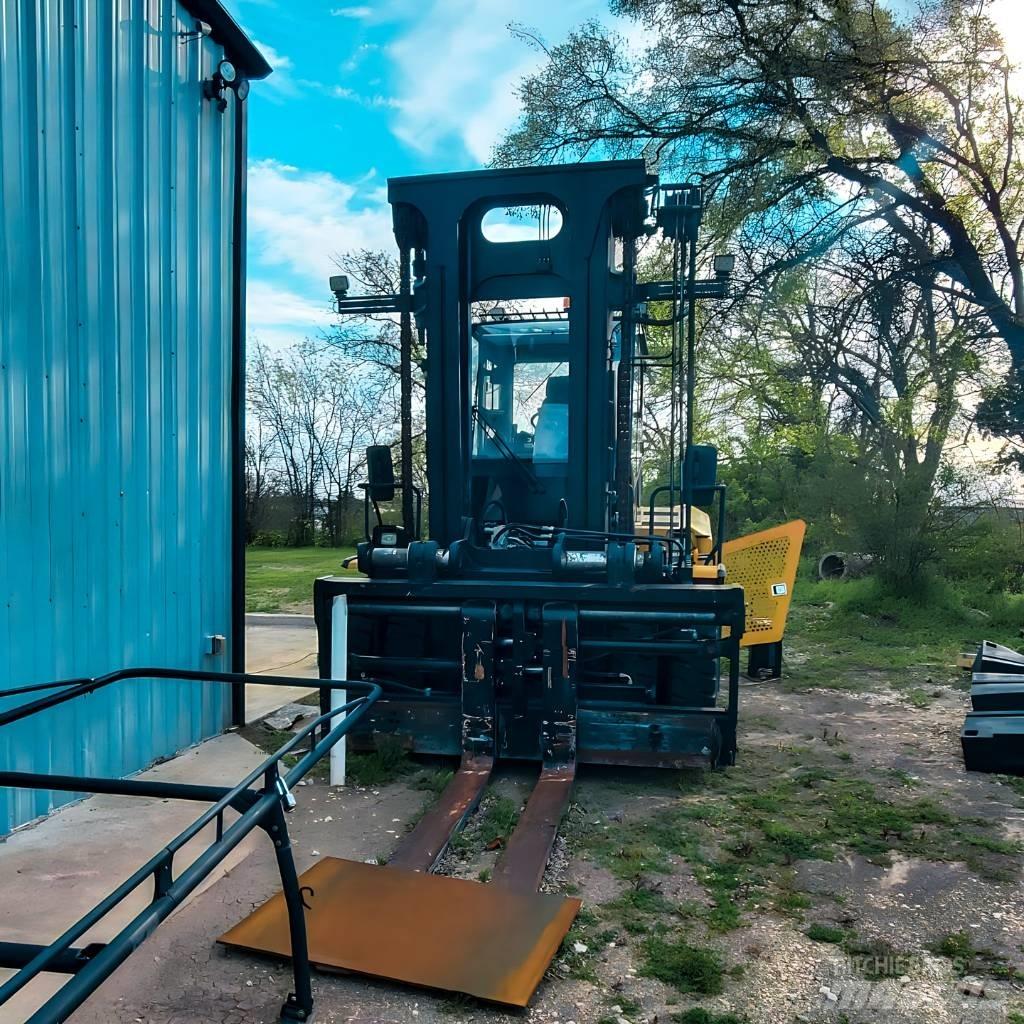

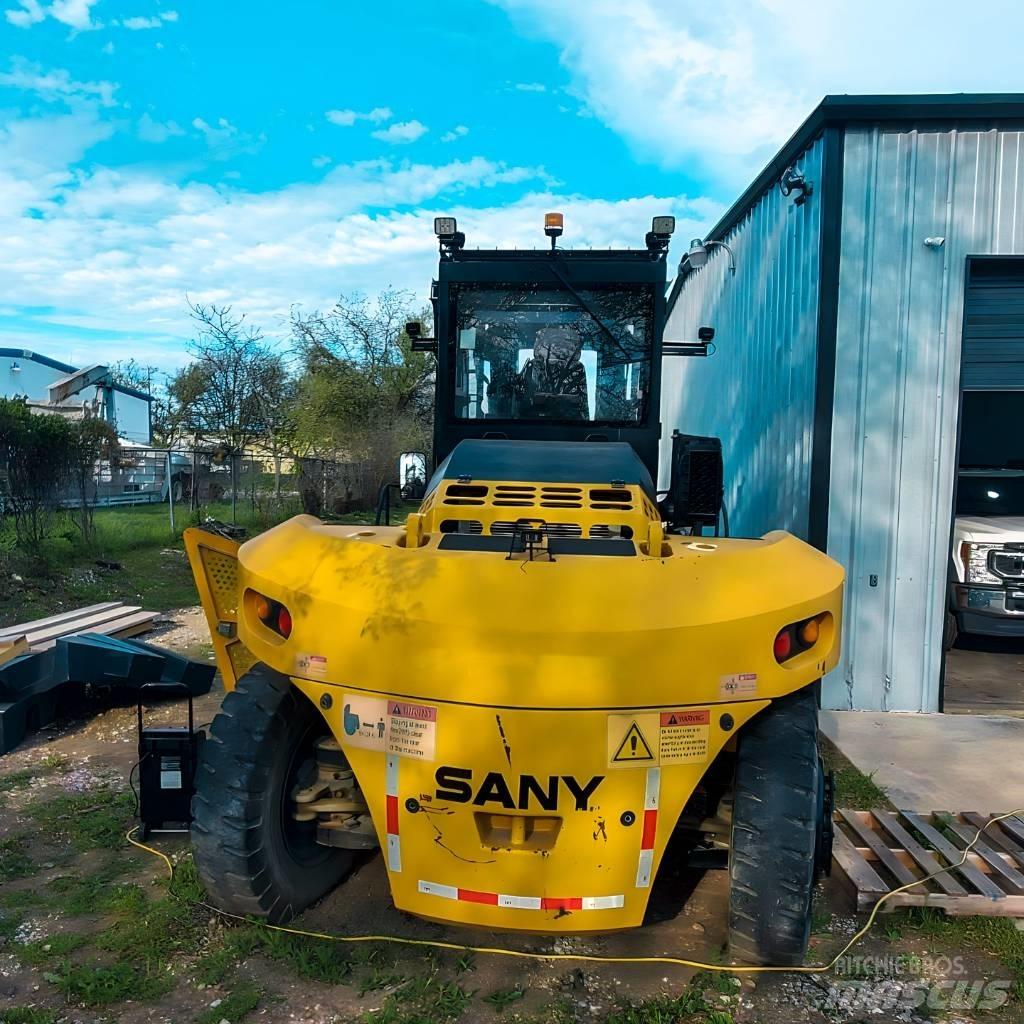

2020 Sany SCP160H4 Heavy Duty Forklift, Cummins QSB 6.7 Diesel, 2W, Tier 4 Final, Veriable Geometry Turbocharger, Piston Pump-Supported Hydraulics, Automatic Fire Suppression, Rear Camera and Radar, 35,000 lbs Rated Load Capacity, Low 384 Hours!
(NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.) - Call for Price!
Introducing the 2020 Sany SCP160H4 Heavy Duty Forklift, a reliable and durable industrial machine designed to enhance your productivity and efficiency in your warehouse or construction site. This used unit has been impeccably maintained with low 384 hours, ensuring a smooth and uninterrupted performance for years to come.
Here are some of the standout features of this impressive forklift:
*Heavy-duty capacity: With a lifting capacity of 35,000 lbs, this forklift is built to handle the toughest and heaviest loads with ease.
*Ergonomic design: The operator's cabin is designed for maximum comfort and safety, featuring adjustable seats, easy-to-use controls, and clear visibility.
*Standard Advanced safety features: Equipped with multiple safety features, including automatic fire suppression, rear camera and radar, backup alarm, and emergency stop switch this forklift ensures the safety of both the operator and the surrounding personnel.
*Smooth operation: Thanks to its advanced hydraulic system and reliable engine, this forklift delivers a smooth and efficient operation, minimizing downtime and maximizing productivity.
*Easy maintenance: With its simple and easy-to-access maintenance points, this forklift can be serviced quickly and conveniently, reducing maintenance costs and downtime.
Overall, the 2020 Sany SCP160H4 Heavy Duty Forklift is a top-performing, reliable, and cost-effective choice for any heavy-duty lifting needs. Don't miss out on this opportunity to enhance your operations with this exceptional machine.
Specifications
General
-Rated Load Capacity: 35,000 lbs
-Load Center: 48"
Hydraulic Tank Capacity
-Main: 99 gal
-Fuel Tank Capacity: 106 gal
Engine & Powertrain
-Make: Cummins
-Model: QSB 6.7L
-Fuel Type: Diesel
-Emission Tier: EPA Tier 4 Final
-HP: 225
-Governor Speed: 2,200 RPM
-Turbocharger: Variable Geoometry
-Cylinders: 6
-Alternator AMPS: 100A 24V
-Drive Axle: Kessler D91
-Transmission: Dana HR32000
-Number of gears fwd rev: 3 3
-Battery Capacity: 24 V 120 Ah
-Brakes: Wet disc
-Parking Brake: Dry disc
-DEF tank capacity: 38 L 10 gal
Weights
-Total Truck Weight without Load: 55,100 lbs
-Axle Loading with Load: Front - 82,000 lbs Rear - 8,400 lbs
-Axle Loading without Load: Front - 26,000 lbs Rear - 29,100 lbs
Wheels
-Tire Type: Pneumatic
-Tire Size: Drive - 12.00-24 18PR Steer - 12.00-24 18R
Dimensions
-Mast Tilt, Fwd (α) Back (β): 12º 15º
-Mast Height Lowered: 148"
-Mast Height Extended: 212"
-Lift Height: 157"
-Cab Height: 139"
-Length to Load Face: 225"
-Width: 105"
Fork
-Width: 8"
-Length: 96"
-Carriage Width: 100"
-Fork Spread (in-in) Minimum: 11"
-Fork Spread (out-out) Maximum: 90"
-Minimum Ground Clearance: 12"
-Aisle width (with load length): 346"
-Outside turning radius: 201"
Performance
-Travel Speed: with load - 16 mph without load - 17 mph
-Lifting Speed: with load - 69 ft/min without load - 79 ft per min
-Lowering Speed: with load - 79 ft/min without load - 79 ft per min
-Drawbar pull-Max: 31,000 lbf
-Gradeability @ 1 mph (1.6 km per h): with load - 29%显示更多
