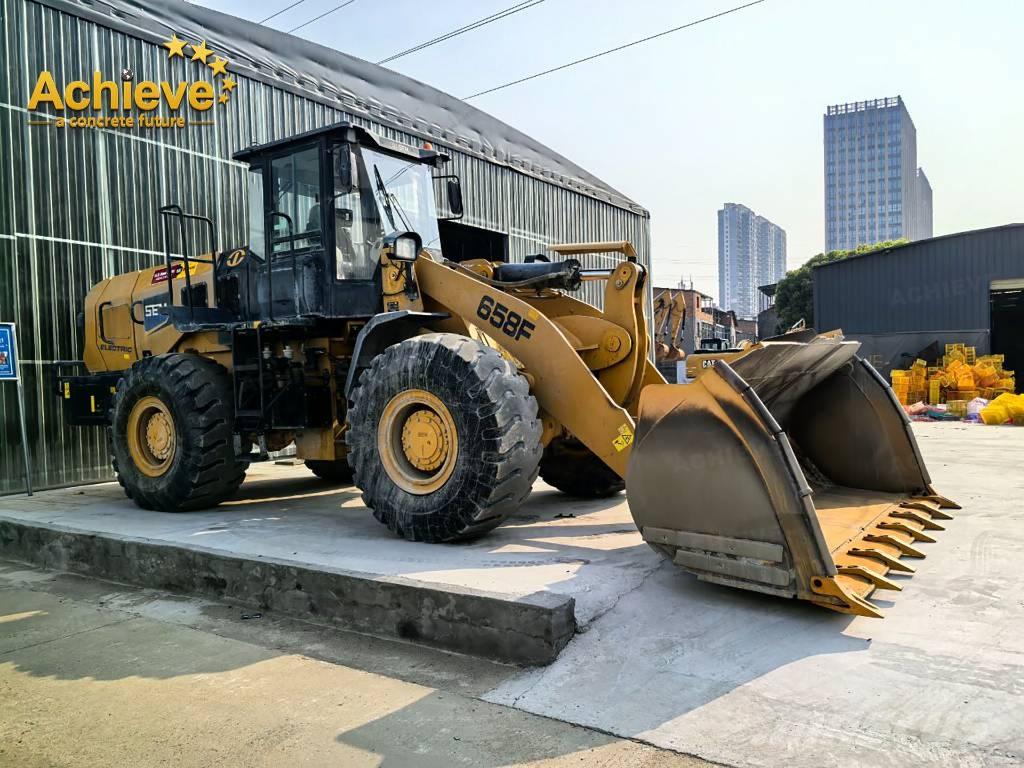

山工 665f

Mountain Machinery 665F Rated Capacity: 6,500kg (for standard configuration) Operating weight (standard): 20,500 kg Bucket capacity: 2.9-5.5m³ Model Model Mountain Machinery 665F Main technical parameters Rated load capacity 6,500kg (for standard configuration) Operating weight (standard) 20,500kg Bucket capacity 2.9-5.5m³ wheelbase 3,400mm Overall machine size 8,704*3,092*3,458mm Traction 188kN digging force 220kN Unload height 3,050mm Bucket hinge pin height 4,196 (for standard arm) Gearbox Gearbox type Electronically controlled fixed-axis power shifting Transmission shift gear F2/R1 Transmission model SEM TR220 Forward gear I 11.6km/h Forward Gear II 38.5km/h Reverse gear I 15.5km/h Drive axle Main transmission type Single-stage spiral deceleration Wheel side reduction type The first planet slows down Swing Angle +/- ±11° motor Engine model WD10G240 Power rating 178kW Rated speed 2,000r/min Displacement 9.7L Working hydraulic system Working hydraulic system type Double pump confluence hydraulic system Boom lift time 5.7s The working device action time is three items 9.8s The working pressure of the working device system 20MPa Braking system Driving brake type Air top oil caliper disc brake Parking brake type Internal hoof drum brake Steering system Steering hydraulic system type Constant variable hydraulics preferential steering Steering pump type Variable piston pump System pressure setting 18MPa Steering Angle (L/R) 38±1° tyre Tire size 23.5-25 Tire type Bias tires Level 20 Pattern type L-3 Note: Product parameters may vary due to different country regulations or configurations, the above information is for reference only, please contact your local dealer for details.
