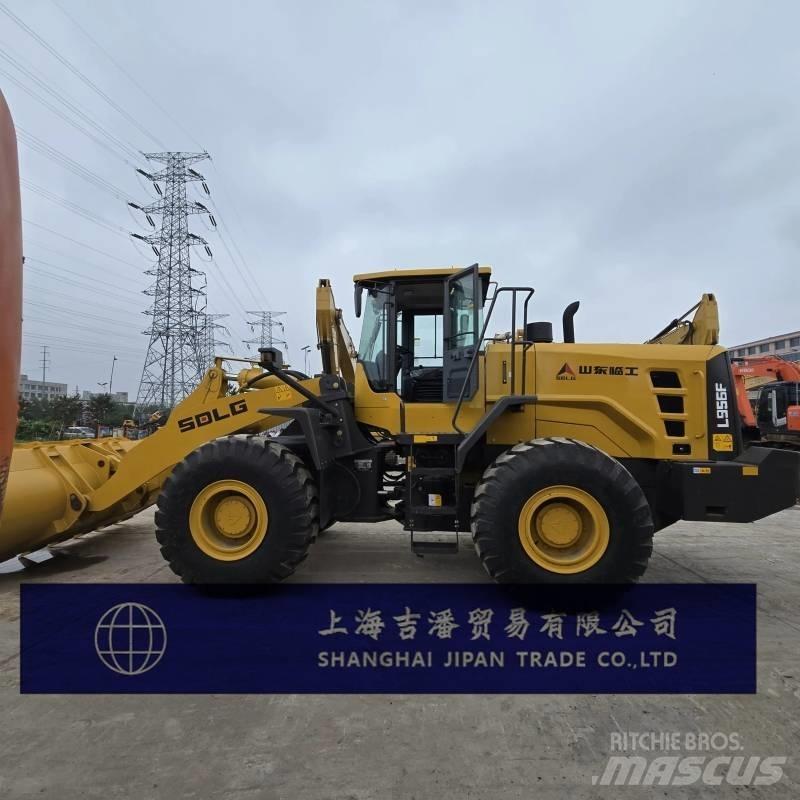

山东临工 L 956 F

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Shandong Lingong L956F loader Basic performance Rated load capacity (tons) : 5-6 tons Rated load capacity (kg) : 5000 The operating weight of the entire machine (kg) is 16,700 Bucket capacity (m³) : 2.8 (2.7-4.5) Maximum unloading height (mm) : 3080 Unloading distance (mm) : 1130 Digging force (lifting force) (kN)175 Engine Engine model: WP10G220E343 Rated power (kw/rpm)162/2000 Maximum torque (N.m)980/(1300-1500) Displacement (L)9.726 The cooling method is water cooling Working forms: in-line, water-cooled, four-stroke, direct injection Oil capacity Fuel tank (L)300 Hydraulic oil tank (L)240 Engine oil (L)20 Transmission The gear setting is two in the front and one in the back Maximum speed (km/h)38 Driving speed: 1st gear (km/h)0-13 Driving speed: 2nd gear (km/h)0-38 Steering system Steering Angle: 36 The operating time of the working device The sum of the three items (s) is 9.8 Technical parameters Overturning load (kg)110 The maximum traction force (kN) is 160 Overall machine dimensions The overall length of the machine is 8150 mm Overall width (mm) : 3024 Overall height (mm) : 3426 Minimum ground clearance (mm)435 Wheelbase (mm) : 3300 Track (mm) : 2250
