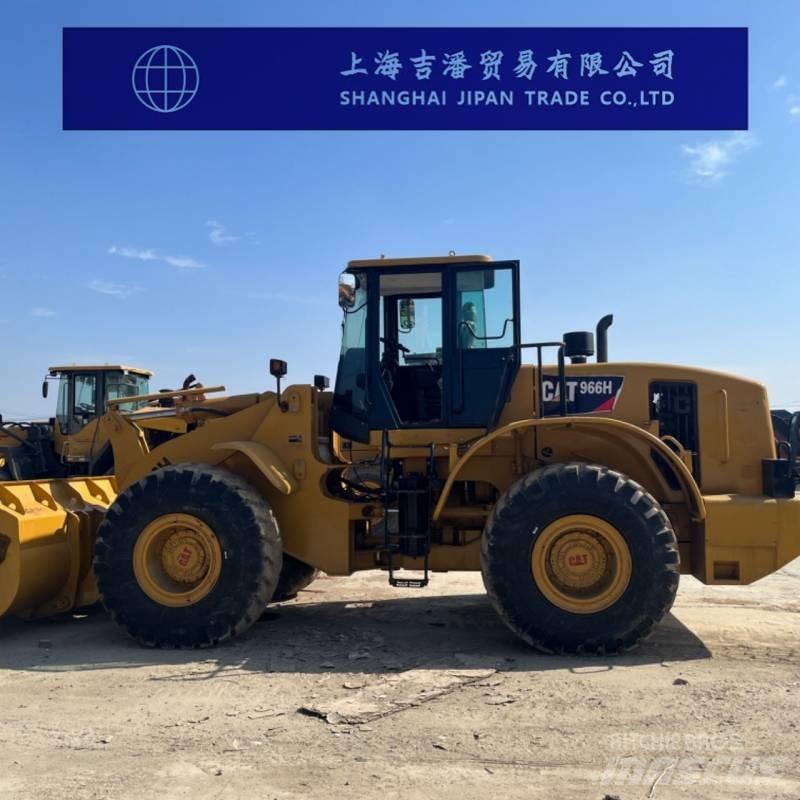

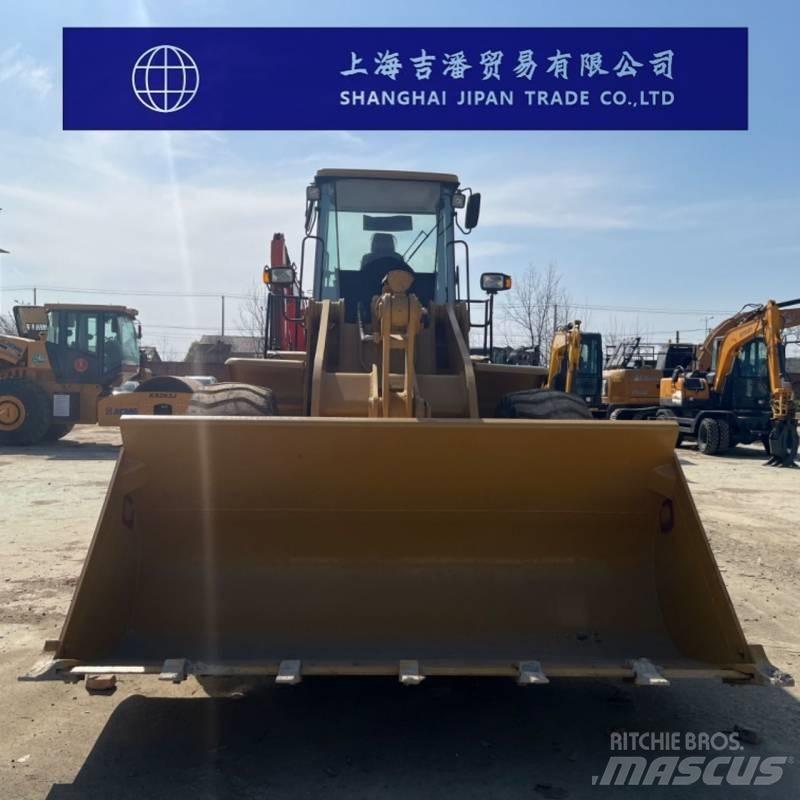

卡特 966 H

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Cat 966H loader Basic performance The operating weight of the entire machine (kg) is 23,698 Bucket capacity (m³) :3.4-4.2 Maximum unloading height (mm) :3005 Rated load capacity (in tons) :over 6 tons Engine Engine model: Caterpillar Cat C11 ACERT Displacement (L)11.1 Rated power (kw/rpm) :195kw Cylinder diameter × stroke (mm) :130×140 Oil capacity Fuel tank (L)380 Hydraulic oil tank (L)110 Coolant (L)39 Transmission The driving speed is 6.7/7.4 in first gear (km/h) Driving speed: 2nd gear (km/h)12.6/13.9 The driving speed is in 3rd gear (km/h), 22.1/24.3 The driving speed is 37.4 km/h in 4th gear Hydraulic system At the rated speed (l/min), the flow rate is 305 The operating time of the working device Lift (s)5.9 Uninstall (s)1.6 Lower the empty bucket (s)2.4 The sum of the three items (s) is 9.9 Technical parameters The distance (mm) from the rear axle to the hinge point is 1725 Overturning load (kg) 15,474 Overall machine dimensions Minimum ground clearance (mm) :496 Bucket width (mm) :3145 Wheelbase (mm) :3450
