CRS NI Trommel 1620

不含税价格

Compnay LOGO
Images11
CRS NI Trommel 1620 原料分级设备
CRS NI Trommel 1620 原料分级设备
CRS NI Trommel 1620 原料分级设备
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
原料分级设备
品牌/型号
CRS NI Trommel 1620
生产年份
2019
使用小时
3100 小时
设备所在位置
Llangyfelach
国家
英国
马斯客 ID
F535BDF0

定价

选择币种

详细信息

内部库存编号
SH2023/06
文件
SH2023-06-CRS-NI-Static-Trommel-Line-Recycling-Plant-Machinery-Ltd.pdf
其他信息

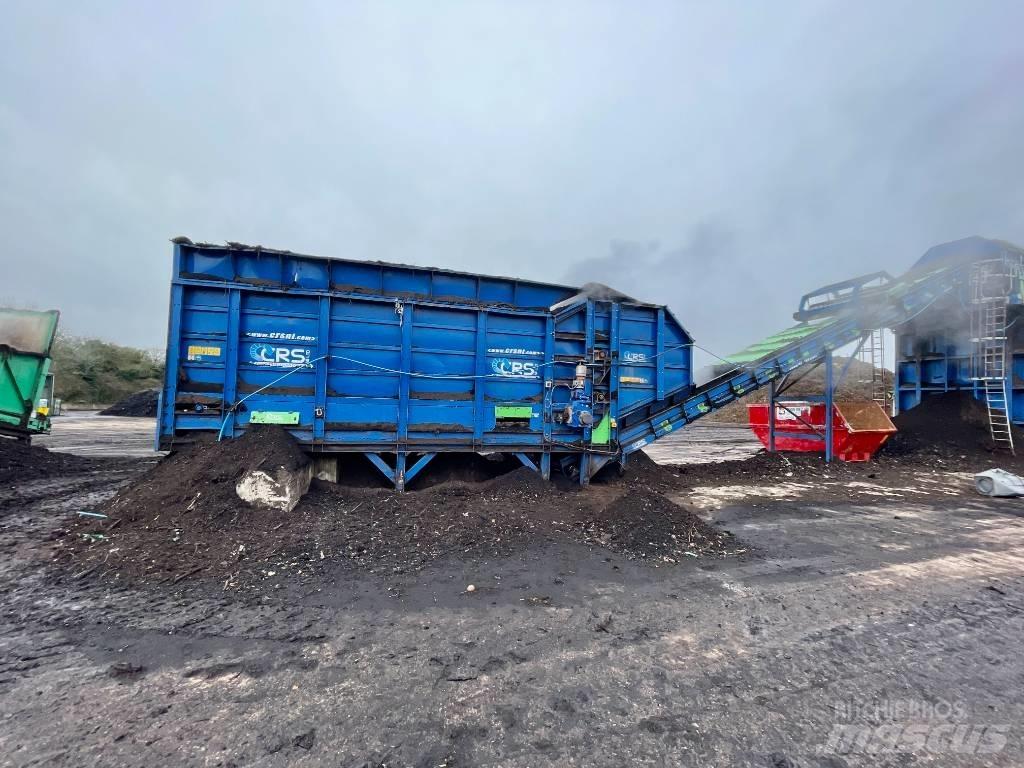

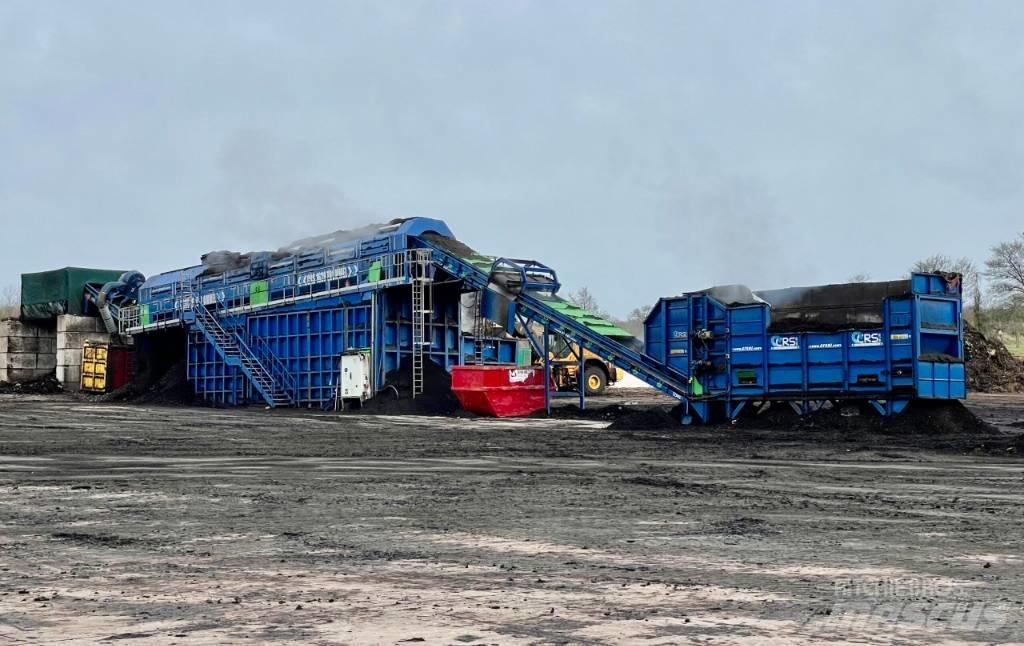

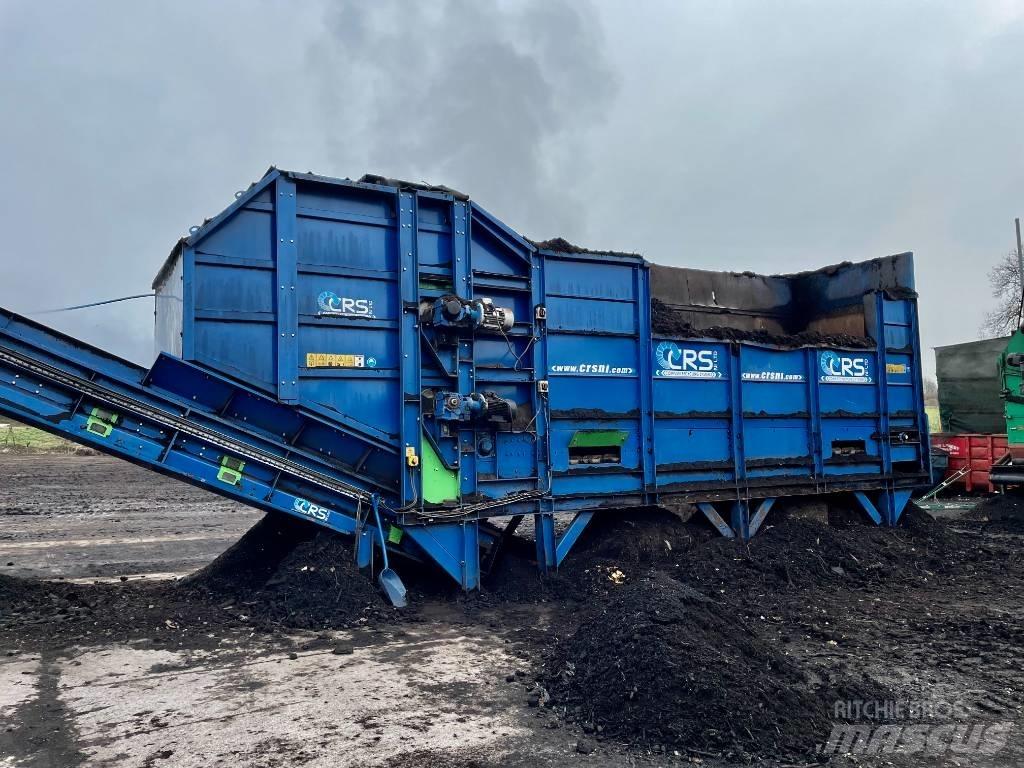

Comprising of following: Feed Hopper 1400 mm wide steel slatted conveyor with Nord 3 kw Electric motor drive. Twin dosing drums 5.5kw Electric motor drive each. Dimensions: 11 m long x 3 m wide x 4.5 m high. Trommel Feed Conveyor 15.5 m long x 1200 mm wide belt. Nord 7.5 kw Electric motor drive. Conveyor Tek 1200 mm wide Overband Magnet with 1.5Kw Electric motor drive. Trommel Screen 1620 Comprising of two drums linked together total length of 19.4 m, diameter 2 m. Drum No1: Fitted with 15 mm square punch plates. Driven by all 4 wheels 5.5kw Electric motor drive each. Drum No2: Fitted with 15 mm & 25 mm square punch plates. Driven by 2 wheels on discharge end only 5.5kw Electric motor drive each. Mounted on supporting structure complete with including access platform & stairs. Dimensions: 2.7 m wide x 2.9 m high. Reject Out feed Conveyor. 8.5 m long x 1200 mm wide belt. Nord 5.5 kw Electric motor drive. Air Vacuum system over conveyor belt with 18.5 kw Electric motor drive fan unit. Electrical control panel The system is still currently operating price excludes dismantling and removal from site显示更多

Recycling Plant & Machinery

Bryntywood SA5 7LP Llangyfelach Swansea 英国
