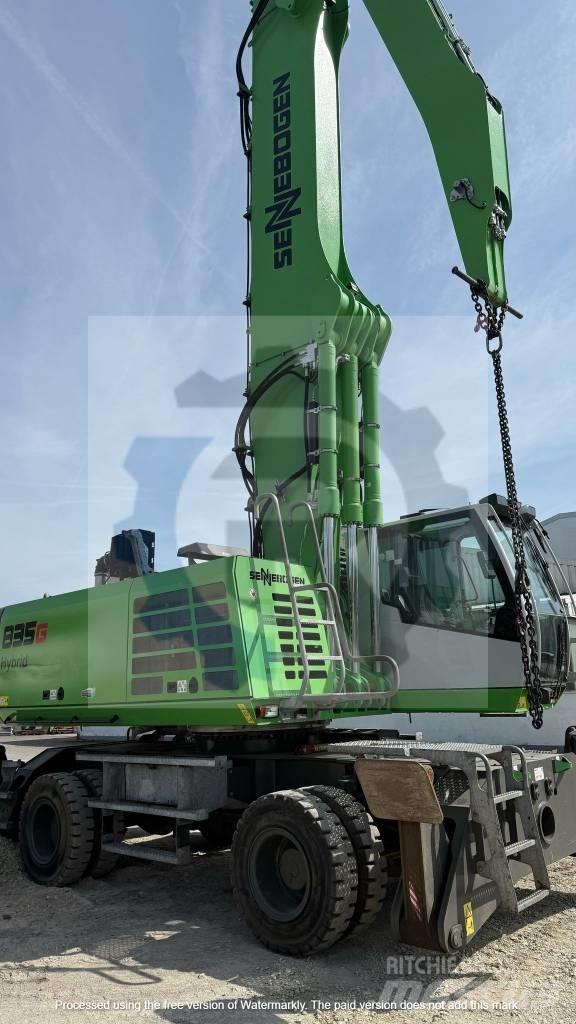

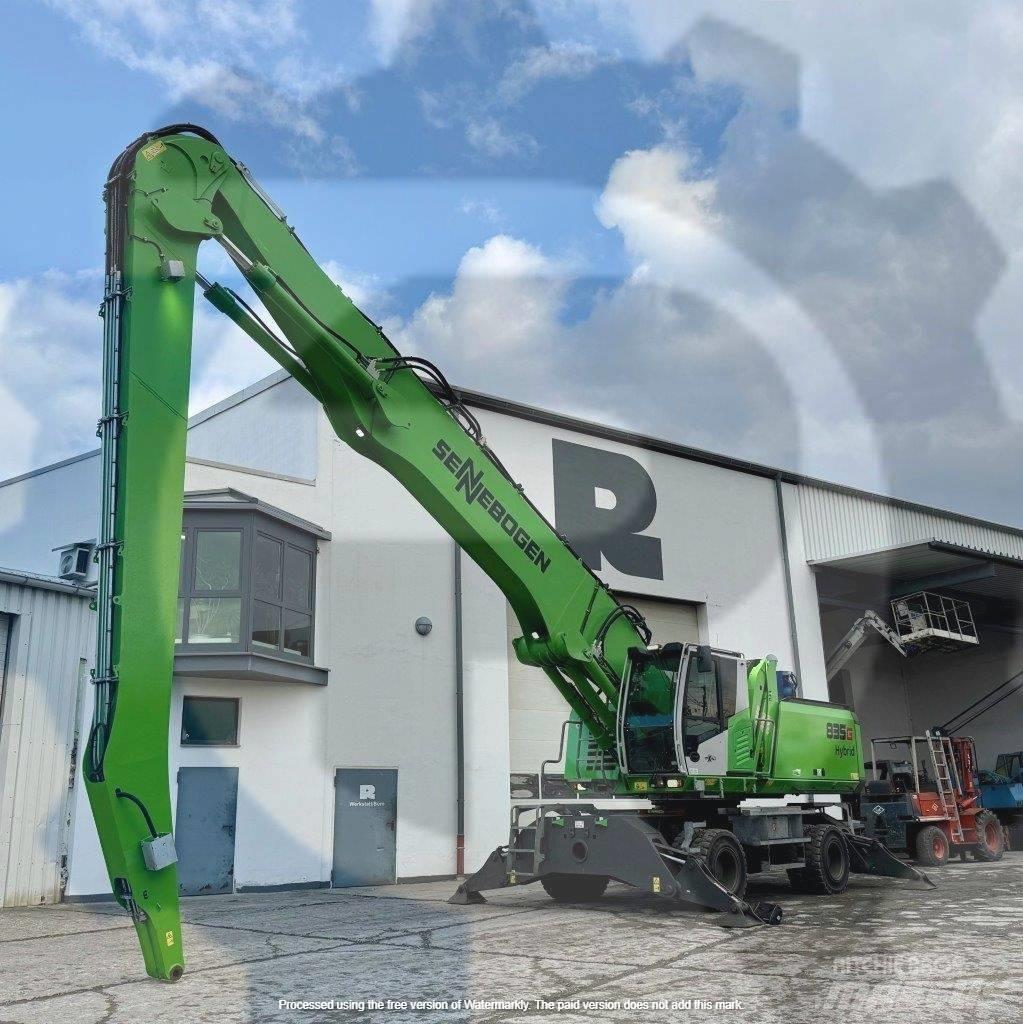

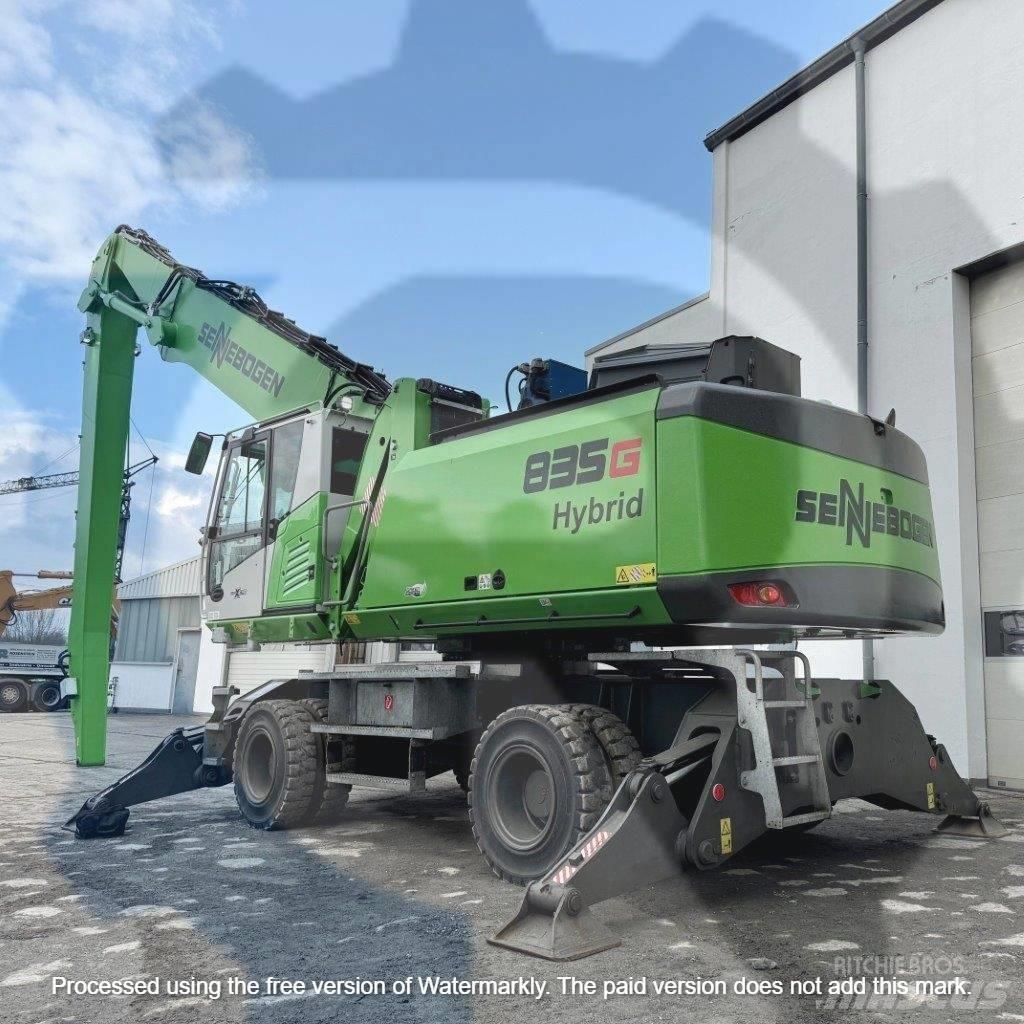

Sennebogen 835G
不含税价格
向卖家询价
27
收藏
分享
保存搜索打印
信息
类别
工业挖掘机
品牌/型号
Sennebogen 835G
生产年份
2023
使用小时
2800 小时
附加选项
演示
设备所在位置
PÄRNU, Pärnumaa
国家
爱沙尼亚
一般等级
1
2
3
4
5
马斯客 ID
4F3B24A5
详细信息
电源类型
柴油机
底盘状态
95 %
毛重
43500 公斤
车厢类型
升降式
发动机输出功率
210 kW (286 马力)
排放标准
Stage V / Tier IV Final
发动机制造商
Cummins
轮胎尺寸
12.00 - 20
原色
Yes
发动机
6 cyl inline
制造国
德国
成交条件
EXW
证书
EPA环境保护署, CE认证
其他信息
Here we are again offering a top material handler from the premium manufacturer SENNEBOGEN.
Description :
835 M Hybrid - Series G – with mobile undercarriage - CUMMINS engine B6.7 - C260 FR95884,
Operating point standard 210kW/ 1,800min-1,
Exhaust emissions regulation (EU)
2016/1628 Stage V / US EPA Tier 4 final, water-cooled included
Electrically heated water separator with 24V fuel pre-filter - Pre-separator for air filters - Diesel particulate filter (DPF) - Automatic idle stop for diesel engines - Eco circuit for diesel engine - SENNEBOGEN control and diagnostic system SENCON - Reversing the direction of rotation - Cleaning the coolers - Automatic central lubrication for equipment - Automatic pinion-tooth lubrication for slewing ring - Emergency control to ensure machine availability limited operation by bridging the main functions
UNDERCARRIAGE
Mobile undercarriage MP41, for diesel machines, with 4-point support. All-wheel drive with 2-speed powershift
transmission
Solid rubber tires 12.00-20 (8-fold)
Joystick steering
Support plate 525x414mm. - Lighting Package Basic
2x built-in headlights in the upper structure frame at the front left and right,
2x taillights. 1x LED work lamp with magnetic attachment and
5m supply line, for flexible positioning in the maintenance area - Camera system - Basic package with 2 cameras includes: 1x colour monitor 7''
with 4-way splitting (expandable to up to 4 cameras),
2x colour cameras with 115° image angle for the rear and
right side space monitoring of the machine
CAB ADJUSTMENT
Cabin adjustment G280, can be raised hydraulically by 2.8m
CAB AND EQUIPMENT
SENNEBOGEN MAXCAB comfort driver's cab, vibration-damped - Air-suspended comfort driver's seat - Multi-function armrests for the driver's seat - Sliding door including sliding window - Sun blind for the windshield and roof window - Integrated microphone for a hands-free system - Automatic heating and air conditioning with fresh air and recirculated air filters -Seat belt / 2 inch - standard -Windscreen wiper for front and roof window with washer system -Cabin windscreen and roof window in armoured, Sun blind for the windshield and roof window -Radio with USB port, DAB, MP3 and Bluetooth function
UPPERSTRUCTURE
Additional ballast 1.4t integrated in the counterweight
SENNEBOGEN Hydro-Clean: Hydraulic fine filter system with water absorption, contamination indicator (increased oil
purity and oil service life),
Standard handling equipment type K18 consisting of: Compact boom 10.1m straight and grab arm 7.9m curved with
special handling kinematics,
Lifting and stick cylinders with end position cushioning,
Pipe rupture protection for stick and lifting cylinders.
Limit switch for stroke up/down and handle on/off.
Boom Damping 835G – reduces equipment sway and dampens abrupt movements
Generator system 20kW, 230V, 100% ED, maintenance-free with safety circuit against short circuit and overload,
insulation monitoring 4-pole
Generator, hydraulically driven, can be switched off during non-generator operation without hydraulics dissipation.
Operating and display device in the cabin (performance data from existing magnetic plates
may do not exceed the generator output)
PAINTWORK
Standard paintwork: upper carriage, boom RAL 6018 green, cab RAL 7038 and undercarriage RAL 7022 gray
LIGHTING PACKAGES
1 LED headlight on the cabin roof to the rear
2 LED headlights on the handle: 1 on the left and 1 on the right
1 LED spotlight on the compact boom below
1 LED spotlight on the compact boom at the top
1 LED headlight on the front cabin roof
2 LED headlights on the side of the upper structure: 1 on the left and 1 on the right
Price upon request.
This machine is available immediately
We can offer affordable transport using our own low-loader.
We ship our machines worldwide.
We prepare all export documents显示更多
