Manufacturer:
PTC
Model:
32HFV
Year of manufacture:
2019
Working hours:

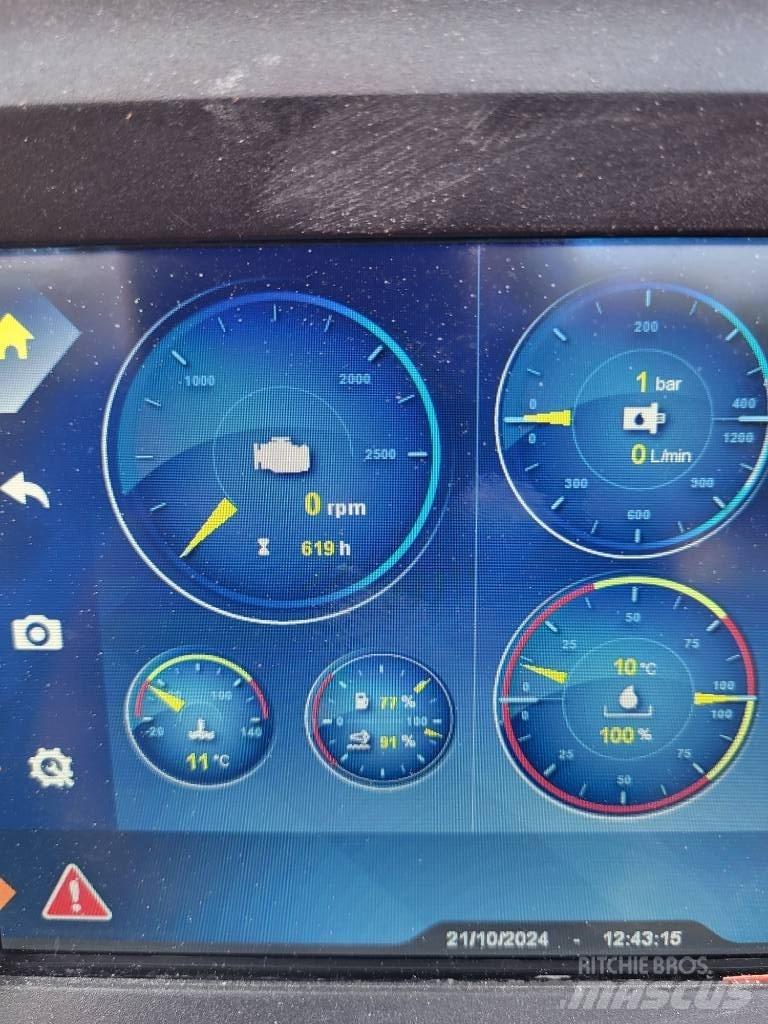

619
Key Features:
• High Frequency and Variable Moment Vibro Hammer with PTC 120T clamp and PTC 650VO Power Pack
• 380 hours
• Used on one project
• CE marked
• Comes with 28 meter hydraulic hoses
• 32 HFV hammer spec - eccentric moment 0-32 m.kg
• Hydraulic power 383 kw/ 521 hp
• Max Centrofugal force 1893 kN
• Max Line pull capacity 600 kN
• Vibrating weight without clamp 3920kg
• Total weight without clamp 6300kg
• PTC 120T clamp weight 700kg
• Clamping force 1200kN

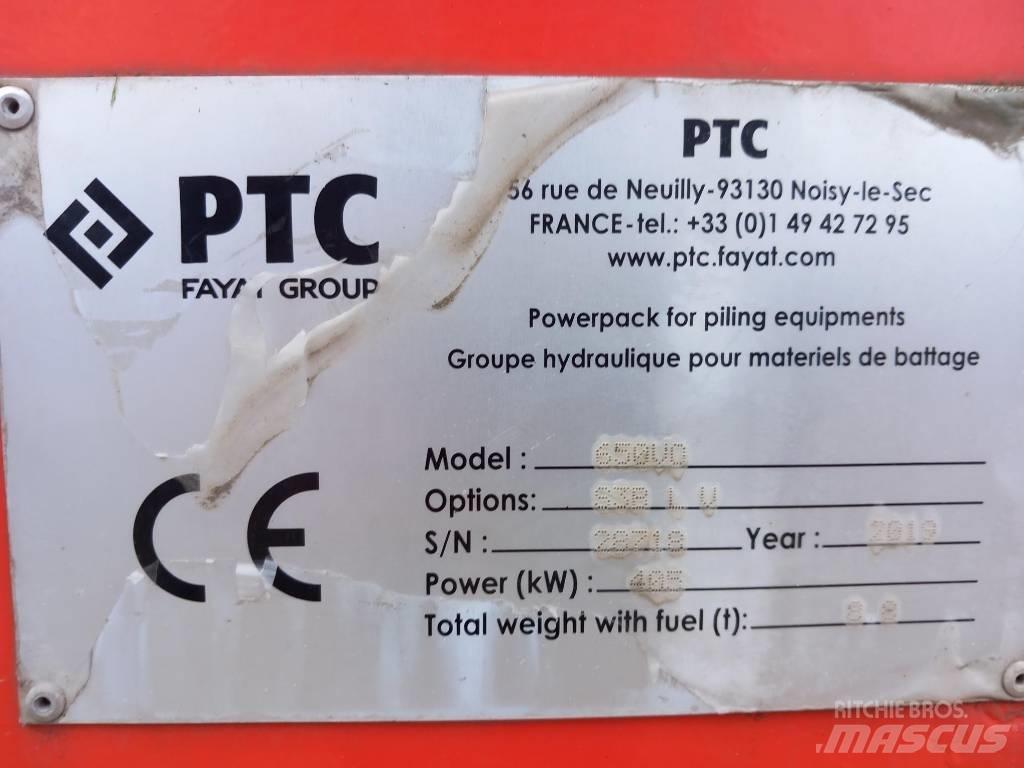

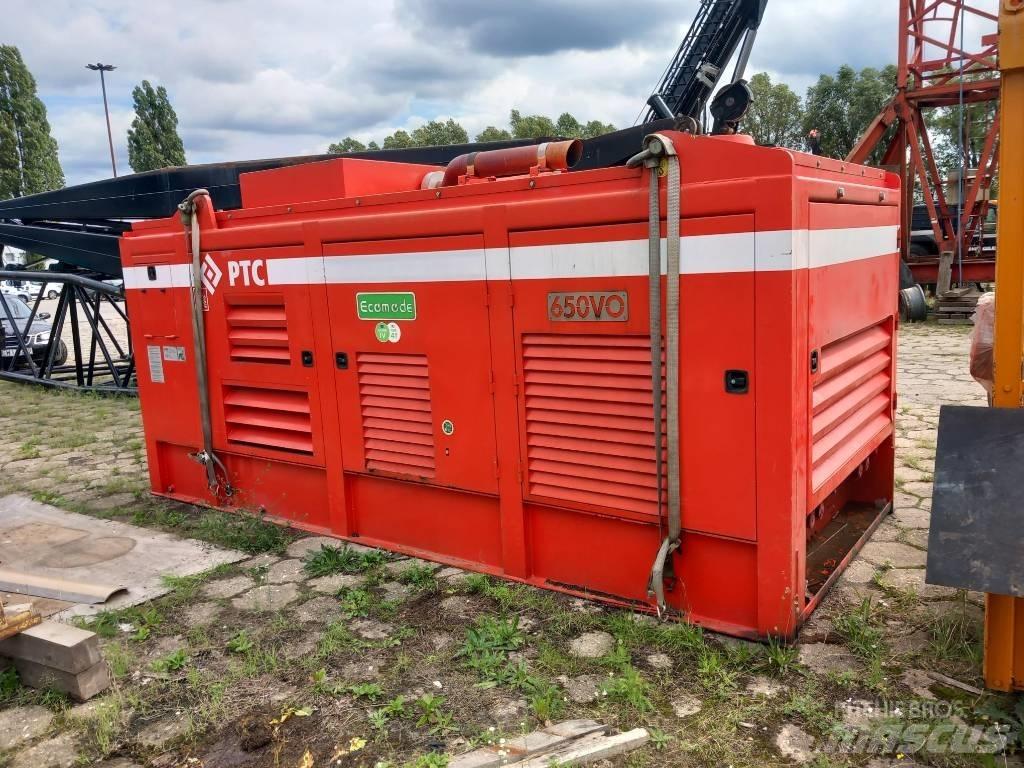

• Supply pressure 320 Bar650VO power pack power 405kW/550 hp
• Weight with fuel 8.8 tons
• Nominal oil flow 650 l/min
• Pressure 350 barHFV - High Frequency and Variable Moment Technology
• Allows to adjust the amplitude at any time; it is highly recommended for vibration-sensitive applications: city centers, or near existing structures (bridges, highways, metro)显示更多
