石川岛 IC70-2

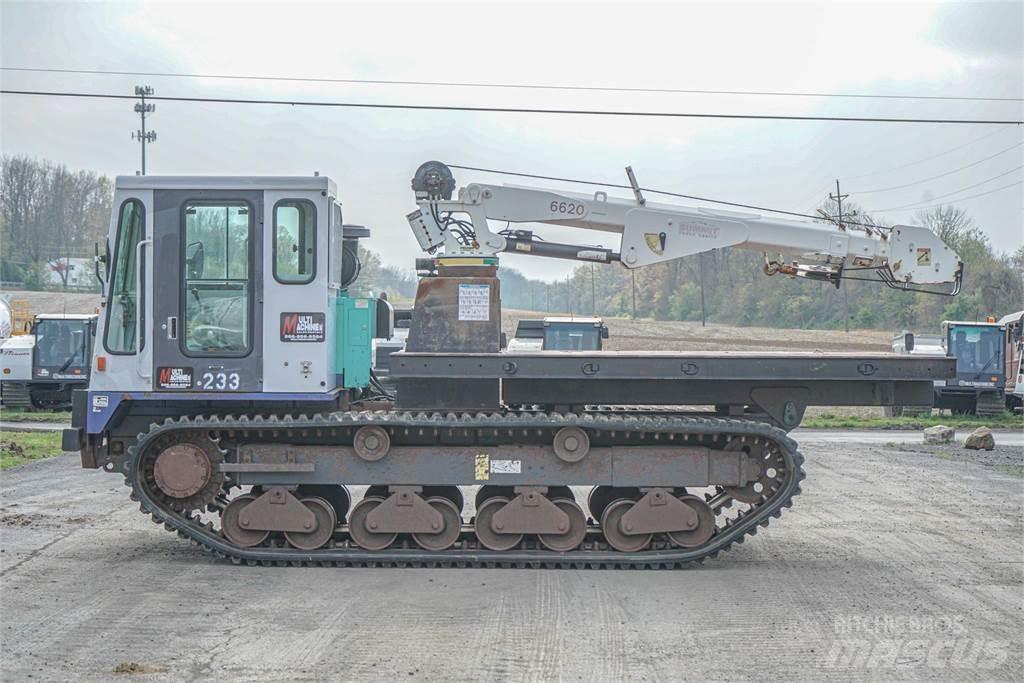

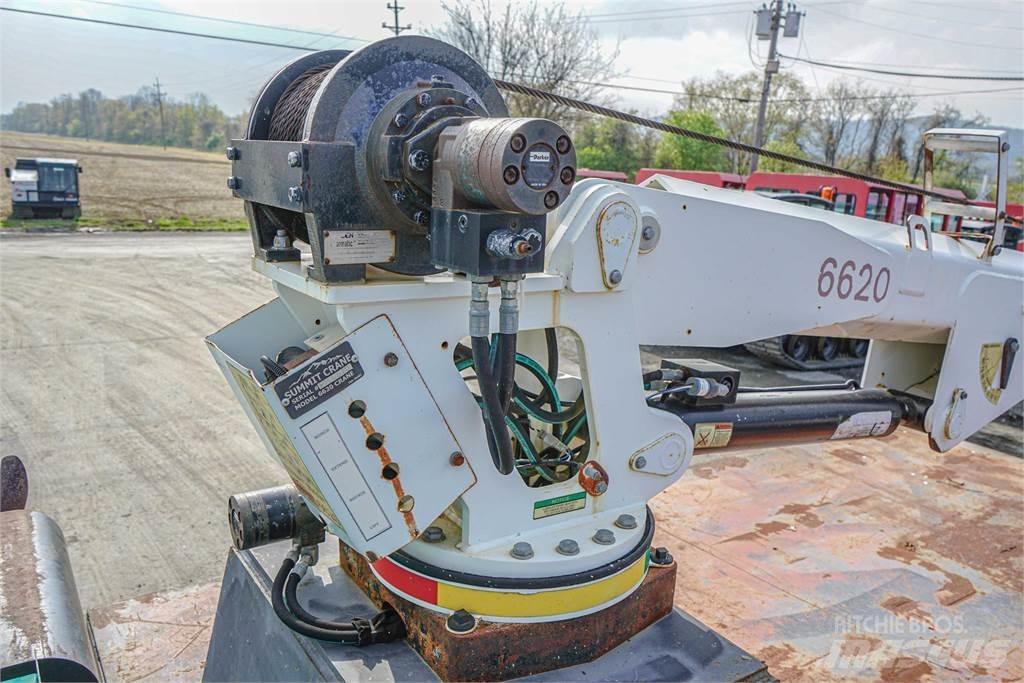

Description: The IHI IC70 can be modified for any job needs, allowing this machine to be ready to work in any conditions, anytime, anywhere! Rubber tracked dumpers like this allow you to go anywhere without much effort and still maintain fairly low ground pressure. We outfit our crawler carriers with everything, from concrete mixers to hydro vacuums to custom applications. This machine is outfitted with a flatbed with a 7 ton capacity and a hydraulic crane with 6000 lb. capacity. If you have any questions regarding rental, purchase, or anything else regarding this machine, do not hesitate to Contact Us. Machine Specifications- Machine Weight: 20,680 lbs Max Payload: 14,300 lbs Engine: Mitsubishi 6D16TLI Horsepower ... 2,200 RPM: 224 hp Fuel Capacity: 52 Gallons Top Speed: 7.5 MPH Ground Pressure (Empty): 2.40 psi Ground Pressure (Loaded): 4.10 psi Gradeability: 30° Side Stability: 50° Ground Clearance: 19.5 Length: 20’5” Width: 8’6” Height: 10’5” Weight: 22,000 lbs. Crane Specifications Max Lifting Capacity: 6,000 lbs. Boom Length: 10’7” Max Horizontal Reach: 20’8” Max Vertical Reach: 22’ Max. Winch Line Pull Speed: 60 ft/min Boom Elevation: -5° to +80° Crane Rating: 380,00 ft-lbs. AirConditioning: Yes EngineMake: MITSUBISHI EngineModel: 6D16T ROPSType: Enclosed BaseDriveSpeed: 7.5 mph
