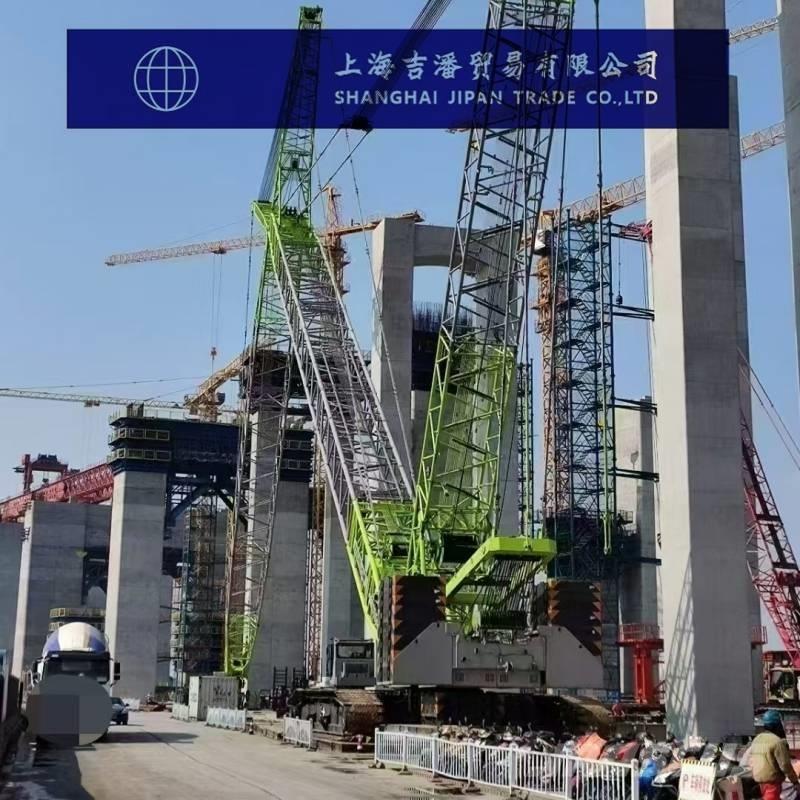

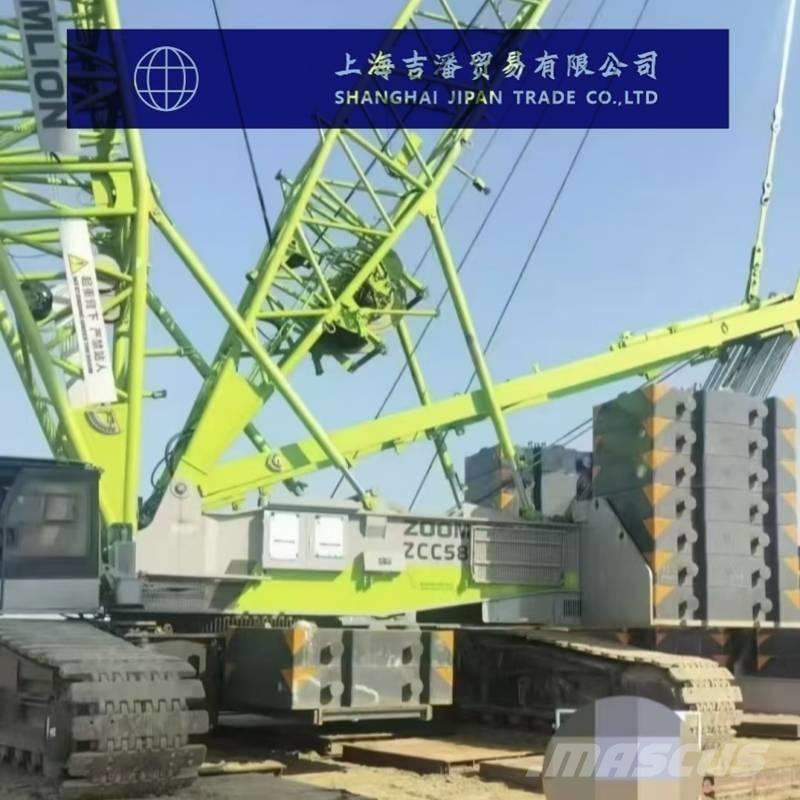

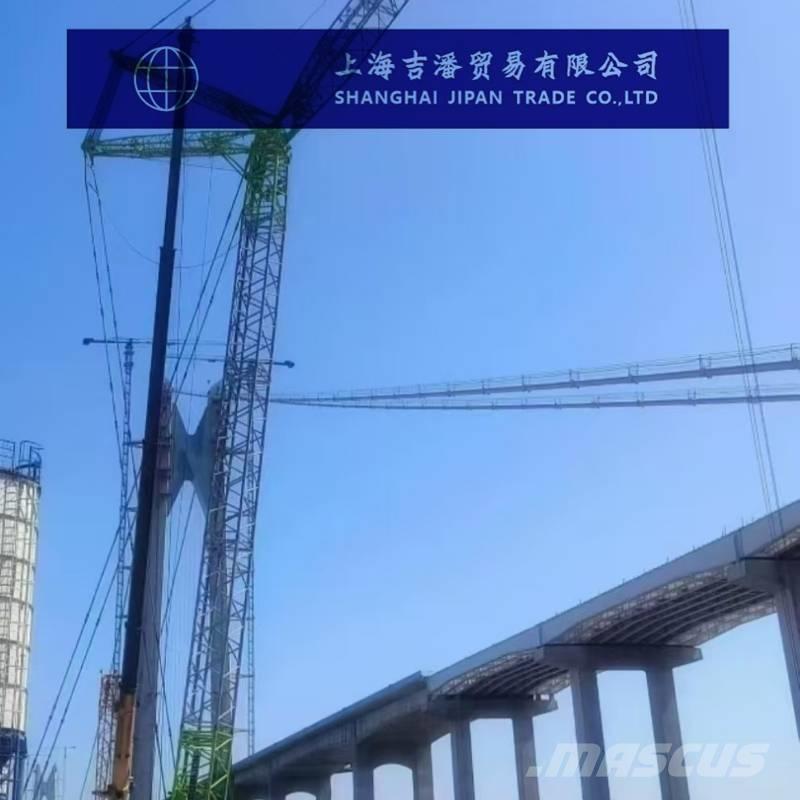

中联重科 ZCC 5000

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting capacity Maximum lifting capacity/amplitude: Standard 500×6 t×m, extra 500×12 t×m. The maximum lifting capacity of the luffing boom: standard 195×13 t×m, super 260×18 t×m. Arm length parameter Heavy-duty main boom: Standard 24 to 90 meters, super lift 36 to 96 meters. Lightweight main boom: Standard 48-108 meters, super lift 78-126 meters. The length of the luffing auxiliary arm is 24 to 84 meters. The longest main boom + the longest luffing auxiliary boom: standard 60+72 meters, super lift 84+84 meters. Standard working condition wind turbine boom main boom:84-108 meters, wind turbine boom 7 meters. Working speed Main lifting:0-137m/min. Secondary lifting:0-137m/min. Amplitude variation:0-50m/min. Auxiliary arm amplitude variation:0-123m/min. Super starting amplitude:0-143m/min. Goose head lifting:0-109m/min. Rotational speed:0 to 1.0rpm. Walking speed:0-1.0km/h. Overall machine parameters Self-weight with basic arm:378 tons. Maximum climbing capacity with basic main arm:30%. Average ground pressure with basic arm:0.139MPa. Mainframe transportation dimensions:12180×3345×3205mm (excluding mast). Maximum single piece transportation weight:48.6 tons. Engine parameters Power/Speed:360/1800kW/rpm. Torque/Speed:2200/1300Nm/rpm. Emission standard: EU Stufe 3A. Track parameters Track gauge × grounding length × track plate width:8000×9800×1350mm.
