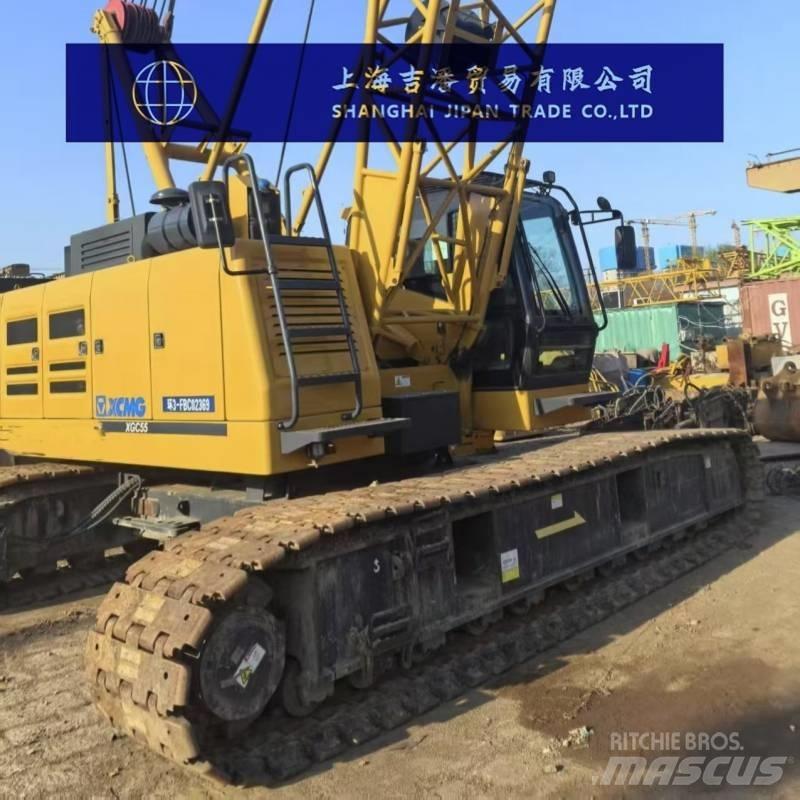

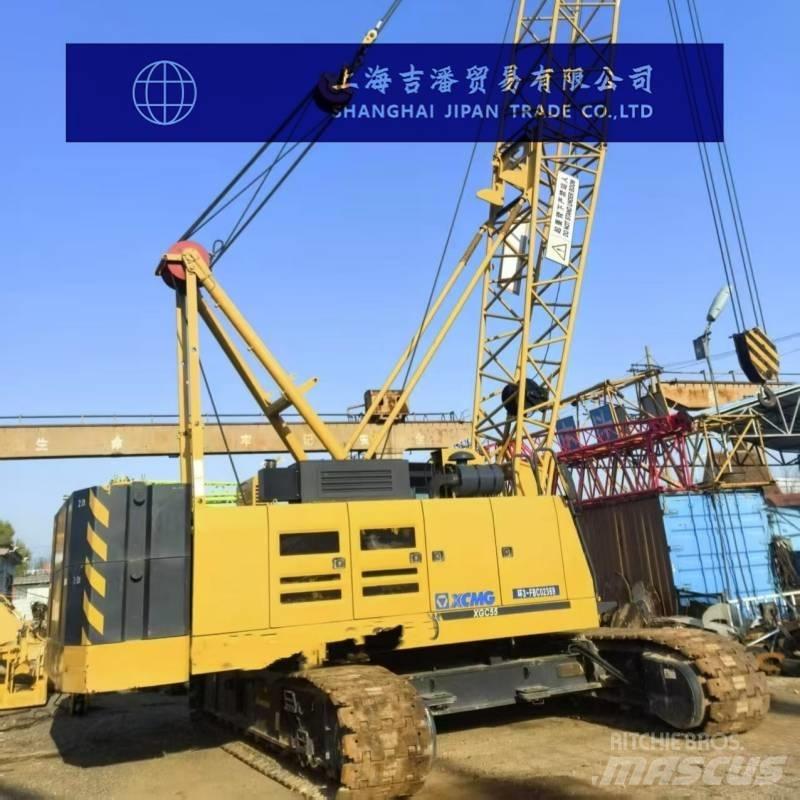

徐工 XGC55

Fly Jib,Hook,Counter Weight,ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting performance The maximum rated lifting capacity of the main boom is 55 tons The maximum rated lifting capacity of the fixed auxiliary boom: 11.4 tons Maximum lifting moment: 203.5t·m The maximum rated lifting capacity under the single pulley condition at the arm end is 6 tons Size parameter Main arm length: 13-52 meters Main arm amplitude Angle: -3°-80° Fixed secondary arm length: 7-16 meters Fixed auxiliary arm installation angles: 10°, 30° The maximum size of a single piece in transportation status (length × width × height) : 12.04m×3.45m×3.36m Speed parameter The maximum single-rope speed of the hoisting mechanism: 125m/min The maximum single-rope speed of the main arm luffing mechanism: 87/78m/min Maximum rotational speed: 2.45/2.2r/min Maximum driving speed: 1.37/1.22km/h Slope: 30% Average grounding specific pressure: 0.06MPa Engine Model: SC7H175.1G2/QSB6.7 Engine power: 128/153kW Emissions: National II/Euro III Quality parameter Overall machine weight: 46.3t (main hook, 13-meter arm) The maximum mass of a single piece during transportation: 28.6 tons
