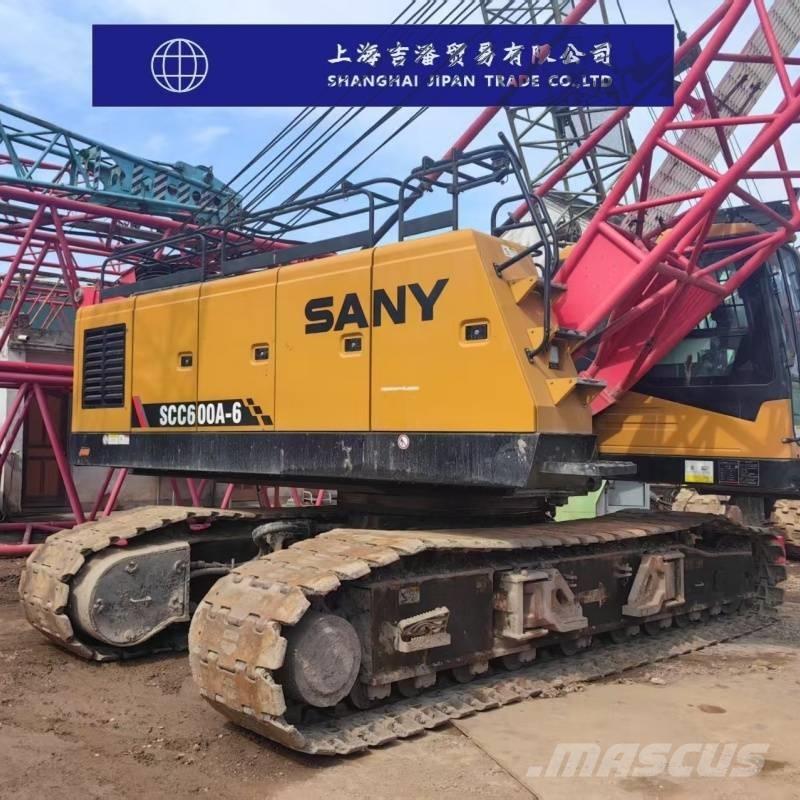

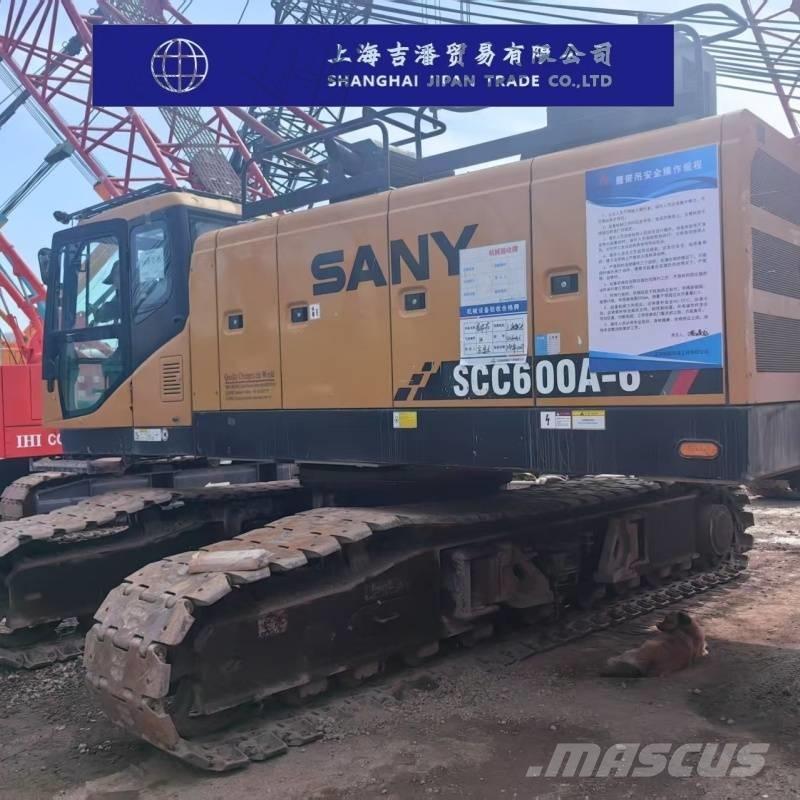

三一重工 SCC600A

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance Parameters Maximum Lifting Capacity: 60t Maximum Main Boom Length: 52m Maximum Lifting Moment: 222t·m Longest Main Boom + Fixed Jib: 43m + 15.25m Engine Parameters Model: Dongfeng Cummins QSB5.9-C210 or Weichai WP6G190 Rated Power: 154kW / 2200rpm or 140kW / 2000rpm Displacement: 5.9L or 6.75L Maximum Torque: 820N·m / 1500rpm or 860N·m / 1300-1500rpm Fuel Tank Capacity: 400L Speed Parameters Maximum Single-Rope Speed of Main/Auxiliary Hoist: 0-130m/min Working Layer Rope Speed of Main Luffing Mechanism: 0-80m/min Maximum Slewing Speed: 1.9r/min Maximum Travel Speed: 1.3km/h Dimension and Weight Parameters Total Transport Length: 12100mm Total Transport Width: 3000mm Total Transport Height: 3350mm Track Shoe Width: 760mm Maximum Single Transport Weight: 30.5t Total Weight of Rear Counterweight: Approximately 16.1t Total Machine Weight (with Basic Boom): 48t Hydraulic System Parameters Maximum System Pressure: 32MPa Hydraulic Oil Tank Capacity: 305L Main and Auxiliary Hoisting Mechanism Parameters Diameter of Main/Auxiliary Hoist Wire Rope: 22mm Length of Main Hoist Wire Rope: 180m Length of Auxiliary Hoist Wire Rope: 130m Rated Single-Rope Pull: 7t
