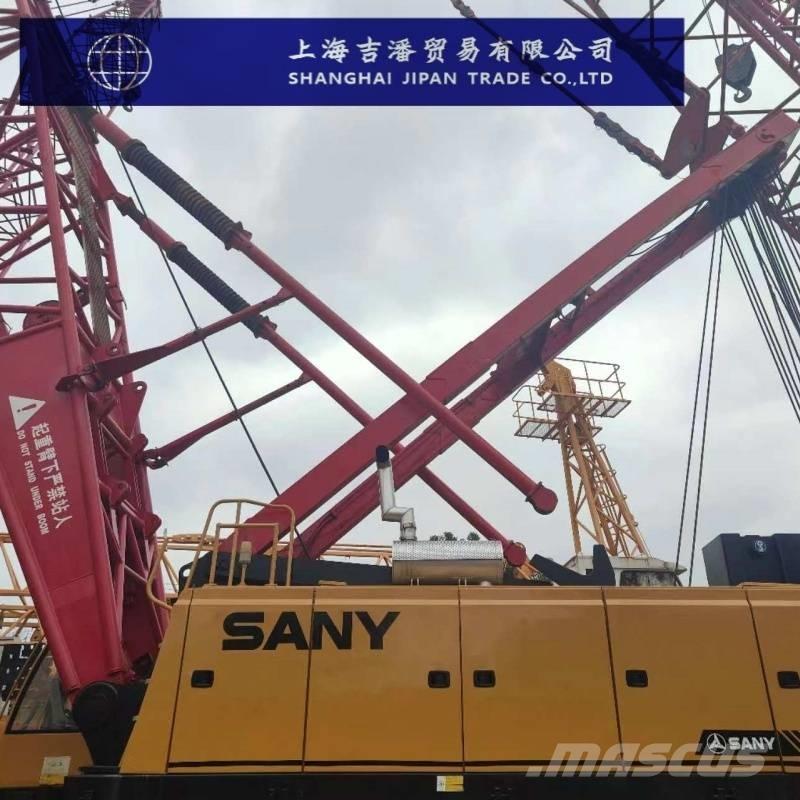

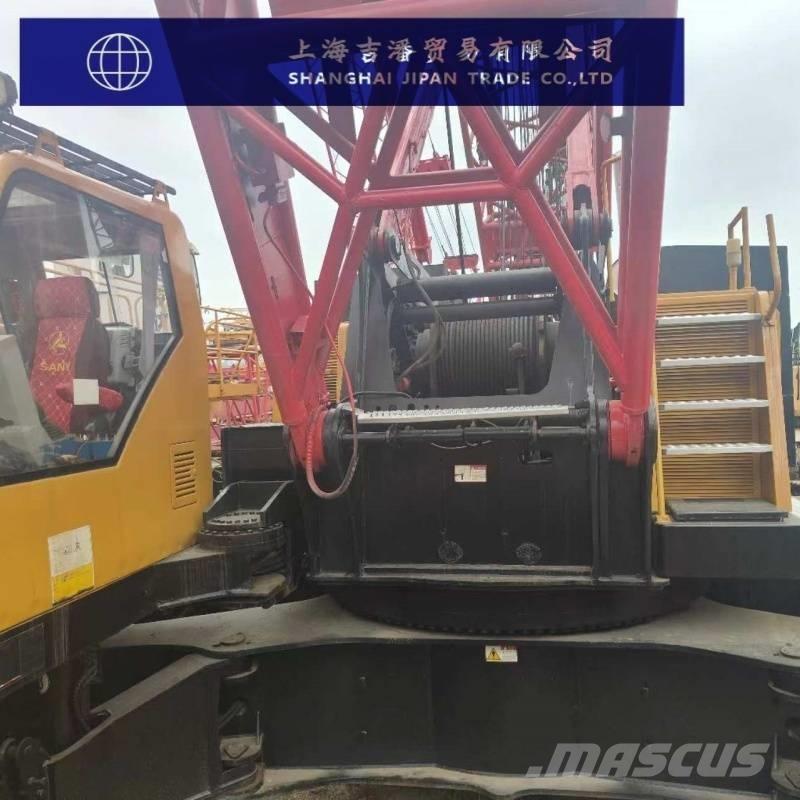

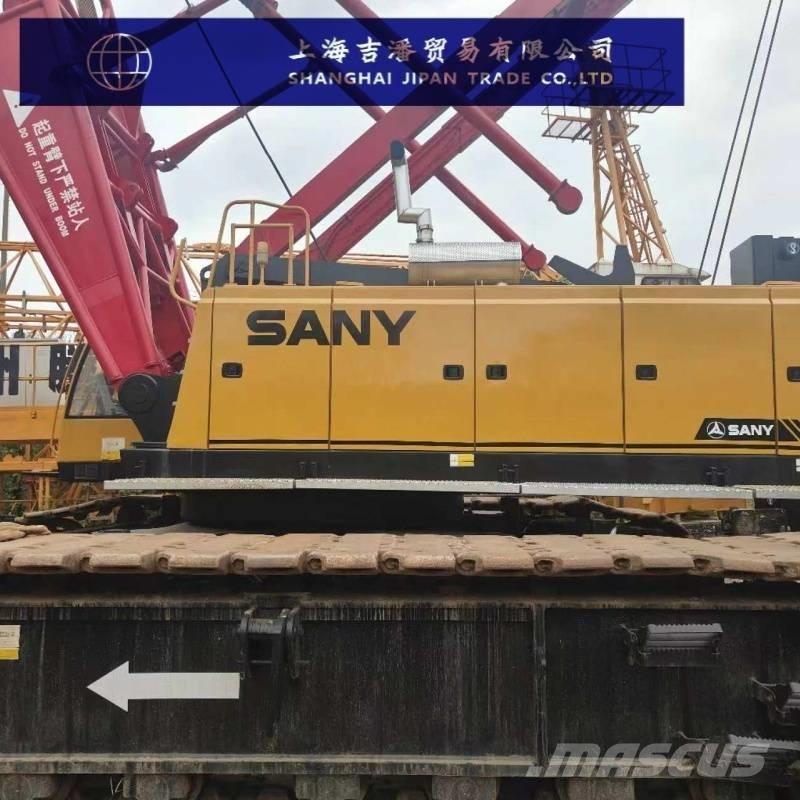

三一重工 SCC2000A

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance Parameters Maximum Lifting Capacity: 200t Maximum Main Boom Length: 85m Maximum Lifting Moment: 1152t·m Longest Main Boom + Luffing Jib: 58m + 58m Longest Main Boom + Fixed Jib: 73m + 31m Engine Parameters Model: Dongfeng Cummins QSL8.9-C325 Rated Power: 242kW / 2100rpm Displacement: 8.9L Maximum Torque: 1385N·m / 1500rpm Fuel Tank Capacity: 400L Speed Parameters Maximum Single-Rope Hoisting Speed: 130m/min Maximum Slewing Speed: 1.3r/min Maximum Travel Speed: 1km/h Dimension and Weight Parameters Total Transport Length: 17500mm Total Transport Width: 3000mm Total Transport Height: 3250mm Track Shoe Width: 1100mm Maximum Single Transport Weight: 45t Rear Counterweight Weight: 74t Undercarriage Counterweight Weight: 25t Hydraulic System Parameters Maximum System Pressure: 32MPa Hydraulic Oil Tank Capacity: 460L Main and Auxiliary Hoisting Mechanism Parameters Diameter of Main/Auxiliary Hoist Wire Rope: 26mm Length of
