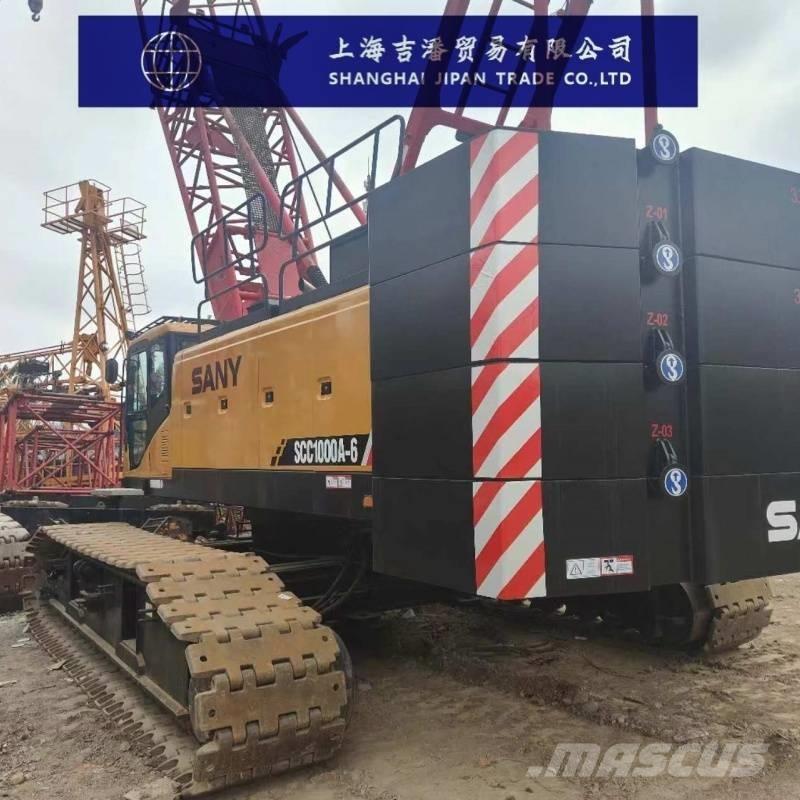

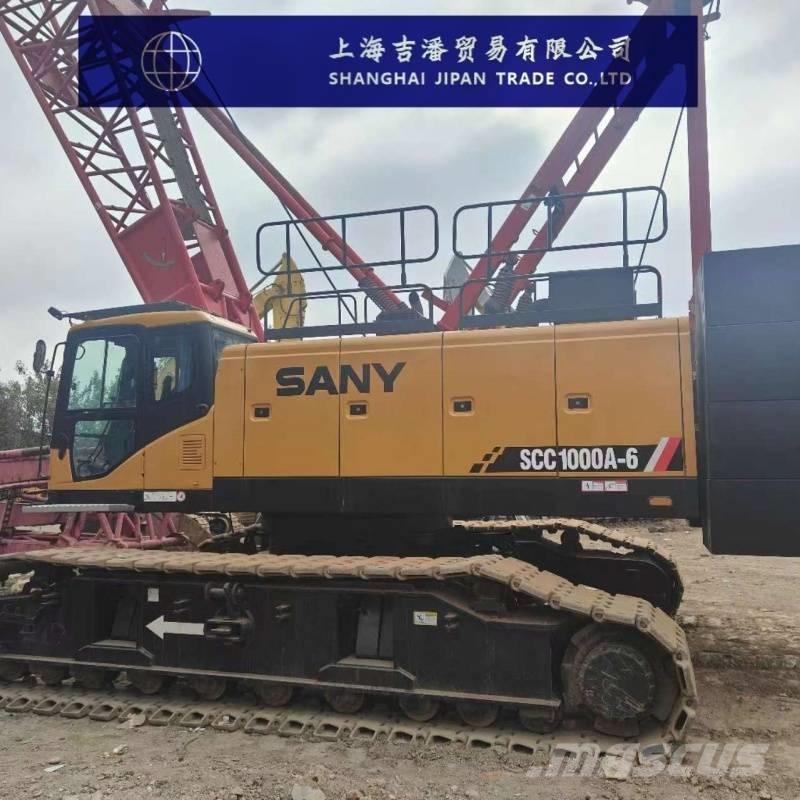

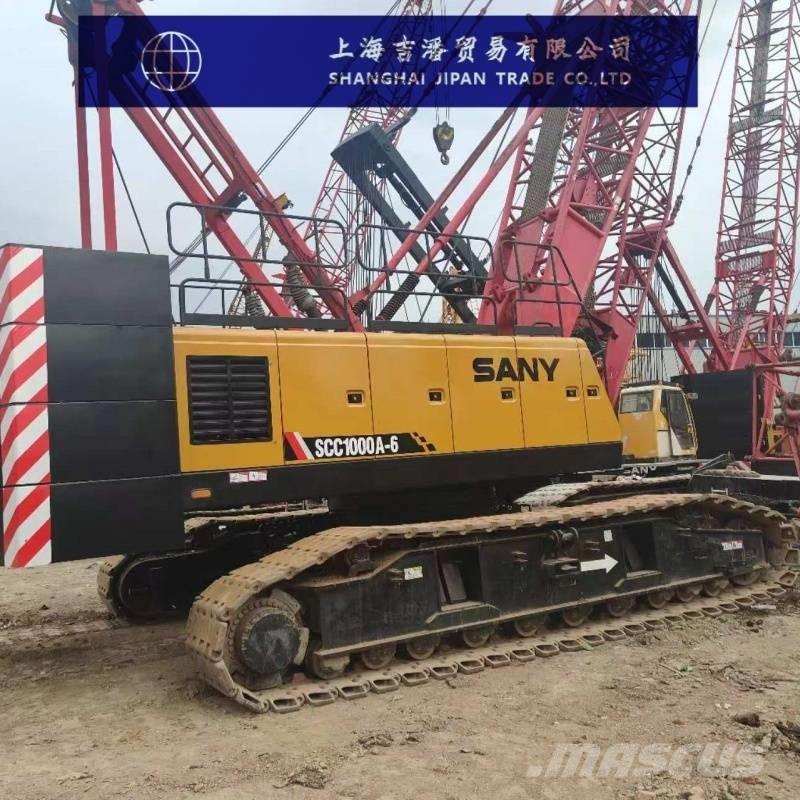

三一重工 SCC1000A

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Lifting Capacity: Maximum rated lifting weight: 100t Maximum lifting moment: 396t·m Maximum main boom length: 64m Longest main boom + jib: 52m + 18m Engine: Model: Weichai WP7 Configuration: Inline 6-cylinder direct injection, turbocharged, water-cooled, intercooled Emission standard: China Non-road National III Displacement: 7.47L Rated power: 199kW / 2300rpm Maximum torque: 1200N·m / (1200~1500)rpm Fuel tank capacity: 400L Hydraulic System: Maximum system pressure: 33MPa Pressure for main/auxiliary hoist, luffing, and travel systems: 33MPa Pressure for slewing system: 24MPa Hydraulic oil tank capacity: 460L Hoisting Mechanism: Diameter of main/auxiliary hoist wire rope: 26mm Length of wire rope: 240m / 180m (main/auxiliary) Rated single-line pull: 12t Single-line speed: 0~130m/min Slewing Mechanism: Drive type: Internal meshing slewing drive Slewing range: 360° continuous rotation Maximum slewing speed: 2.5rpm Slewing bearing: Single-row ball type Counterweight: Total rear counterweight: 33t Central counterweight: 5.5t × 2 (installed at the front and rear of the base) Travel Parameters: Travel speed: 0~1.5km/h Average ground pressure (with basic boom): 0.092MPa Climbing capacity: 30%
