利勃海尔 HS 875 HD

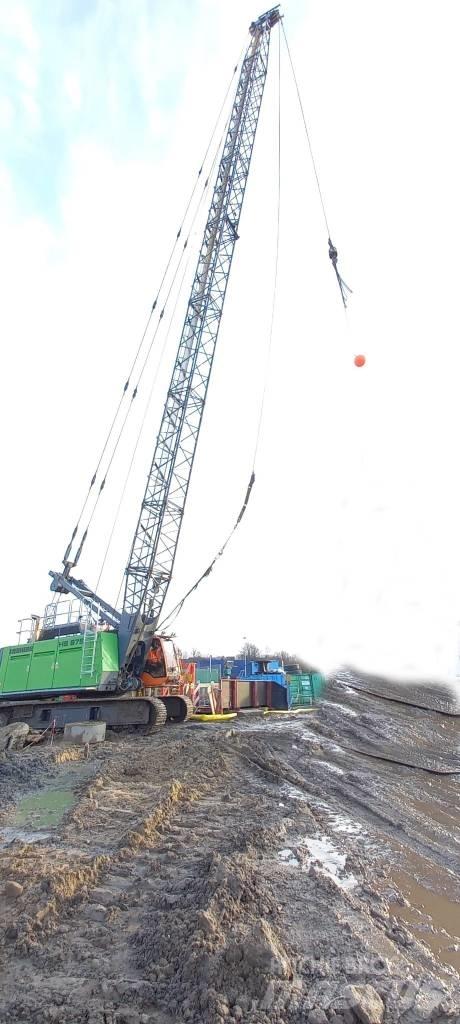

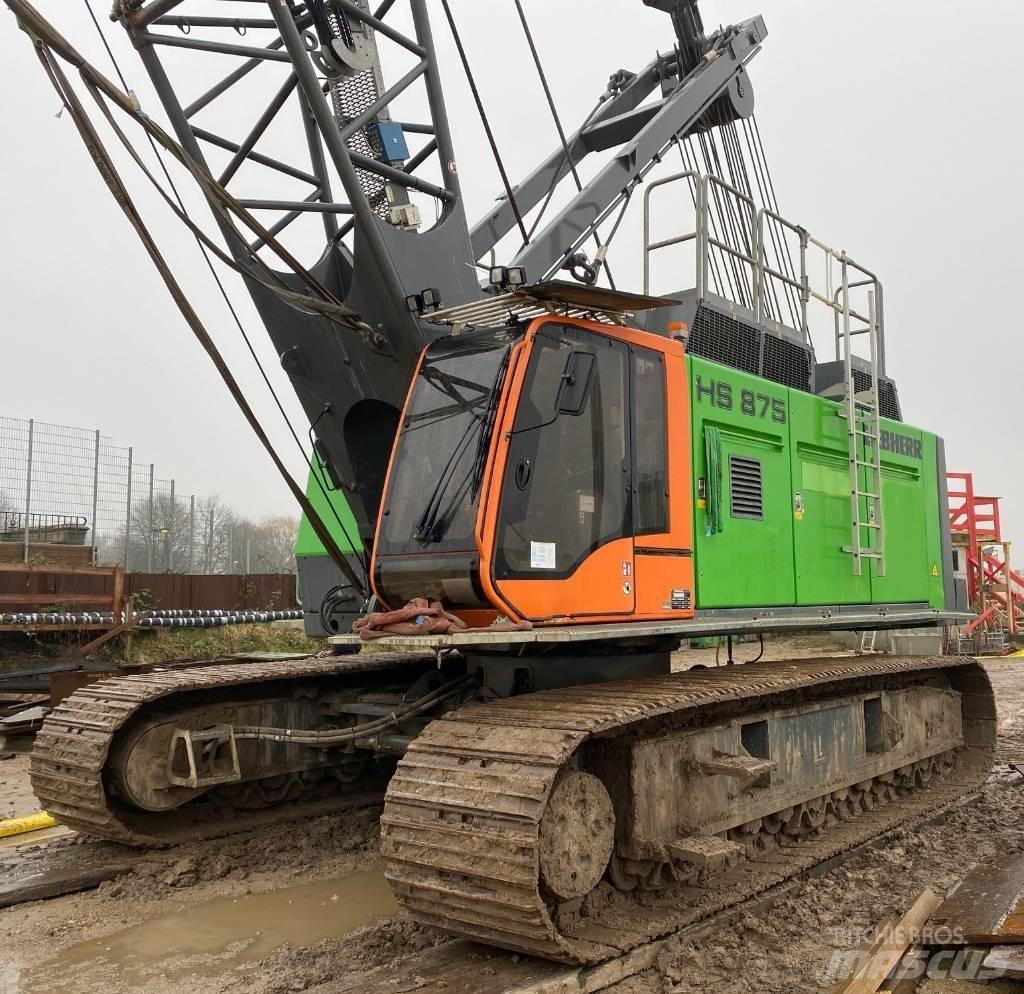

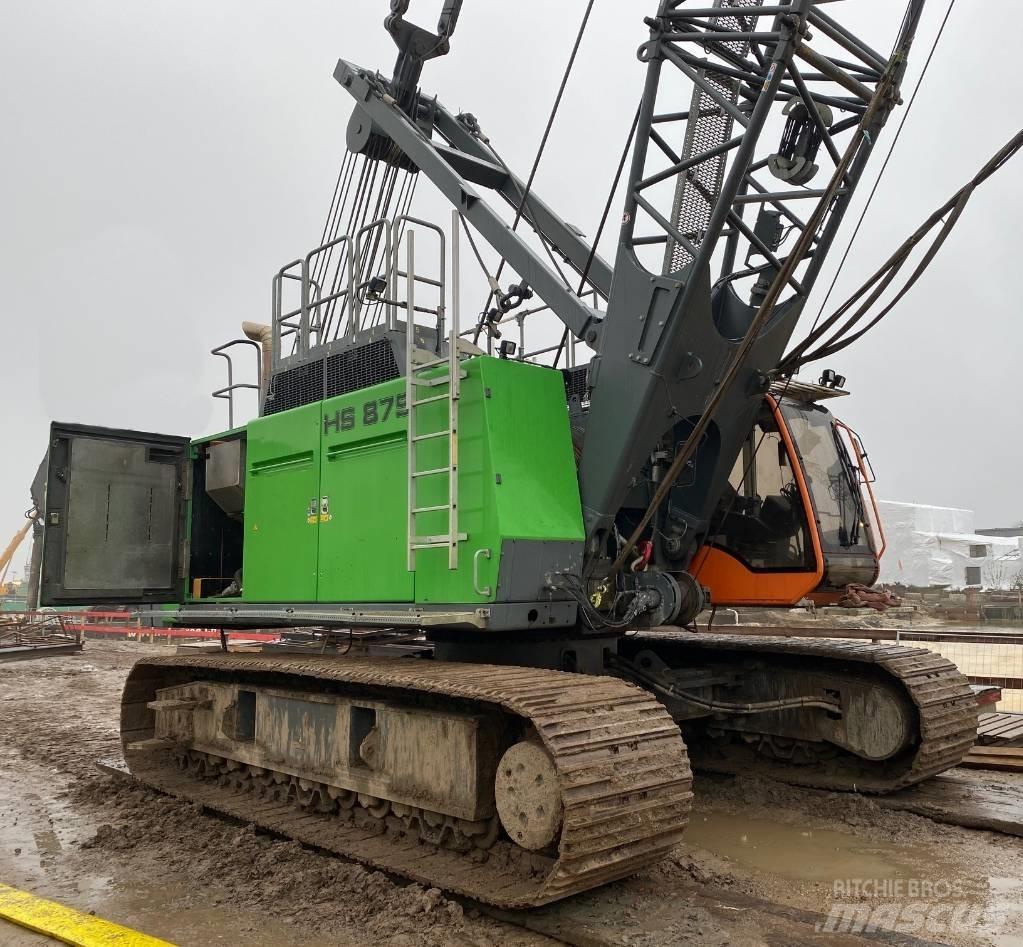

1 X used Liebherr HS 875HD / Ser. No. 185176 Year of construction 2006 / rebuild by Liebherr 2016-2017 with 16.000 operating hours, service history 2007 Delivery and handover to customer water engineering, only the entire superstructure of the Liebherr HS 875HD was delivered. 2007 Installation on a working ship, firmly mounted on a throwing pillar 2016 Repurchase Liebherr and rebuilding as follows, - Recovery as a crawler / dragline for use in diaphragm wall work, dragline and crane work. - Completely new undercarriage - All winches were exchanged from 12 ton to 30 ton winches new - Completely new boom approx. 35.5m (the old one was worn out) - All 4 main pumps were replaced with new ones - Installation of a new measuring device for diaphragm wall - Exchange of many other parts, new for old 2017 Sale to customer special foundation engineering - Complete service history available 2022 Sale to GDS Hamburg Hours approx. 20082 but hours after rebuilding originally only 3.600 2 x 30 ton winches winch specification Version 30 t Free fall yes Cable pull (nominal load) 300 KN Rope diameter 36 mm 1 x main boom extension 6 m 1x main boom joint, 4.2 m 1x main boom section, 3 m 1 x main boom extension 6 m 1 x main boom extension 12 m 1 x Boom Header 6.4m 1 x boom head HS 875 HD 2.7m Total length of the jib 35.5 m 1 x single hook 25 tons Gripper calming winch orig. Liebherr 3.5 tons Hydraulically adjustable chassis Base plates 1000mm Total weight about 93 tons
