杰西博 535-95

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

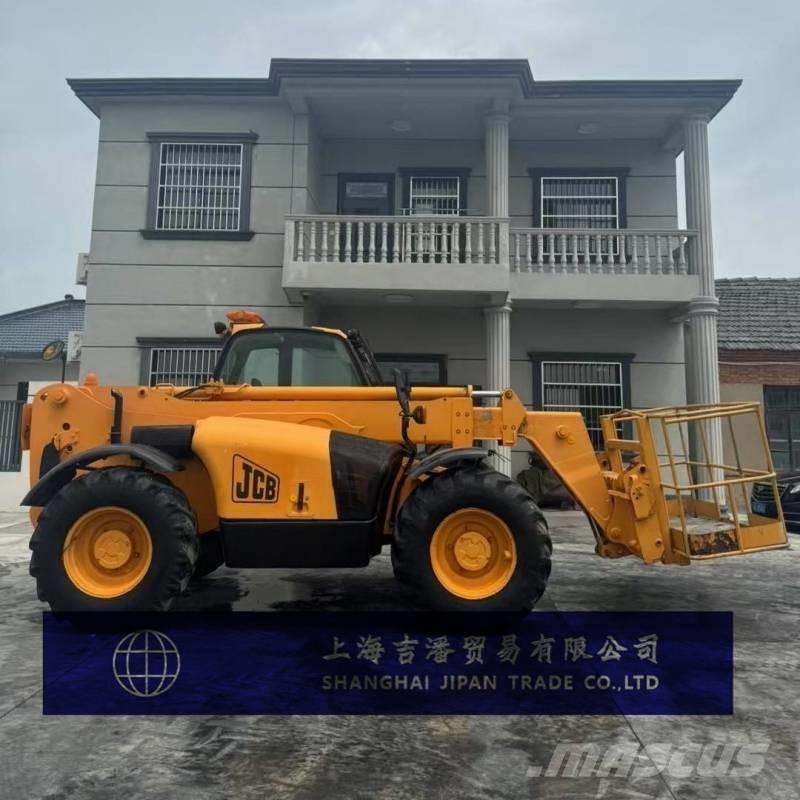

Parameter configuration of JCB 535-95 telescopic boom forklift Basic performance Engine power (kW)63/2200 Operating weight (kilograms):8,160 Rated load (kg):3500 Horsepower (100 horsepower) or less The maximum load (in kilograms) is over 3,500 kilograms Job parameters Maximum lifting capacity (kg):3500 The lifting Angle range is from the lowest to the highest (°)-0.06557377 Maximum lifting height (m):9.5 Maximum external elongation (m)6.52 Unloading distance (at the maximum height) (mm):2.43 The maximum lifting height and overturning load (kg) are 1600 Maximum external elongation overturning load (kg)500 Turning radius (m)3.7 Engine Model: JCB StageII Diesel Engine Rated power (kw/rpm)63/2200 Maximum torque (N.m)320(362)/1200(Naturally aspirated :320; Turbocharging:362 Cylinder diameter × stroke (mm)103×132 Displacement (L):4.4 Hydraulic system The main pump form is a gear pump The maximum working pressure of the system (bar) is 241 The maximum system flow rate (L/min) is 82 Transmission system Gear 4 Maximum driving speed (km/h):29/33 Tire size:15.5/80-24 Oil capacity Fuel tank (L)148 Engine coolant (L)23 Hydraulic oil tank (L)113 Overall dimensions The total length of the entire machine (mm) is 4990 The overall width of the machine (mm) is 2290 The total height of the entire machine (mm) is 2490 The cab height (mm) is 2490 Wheelbase (mm):2750 Track (mm):1870 Ground clearance (mm):400
