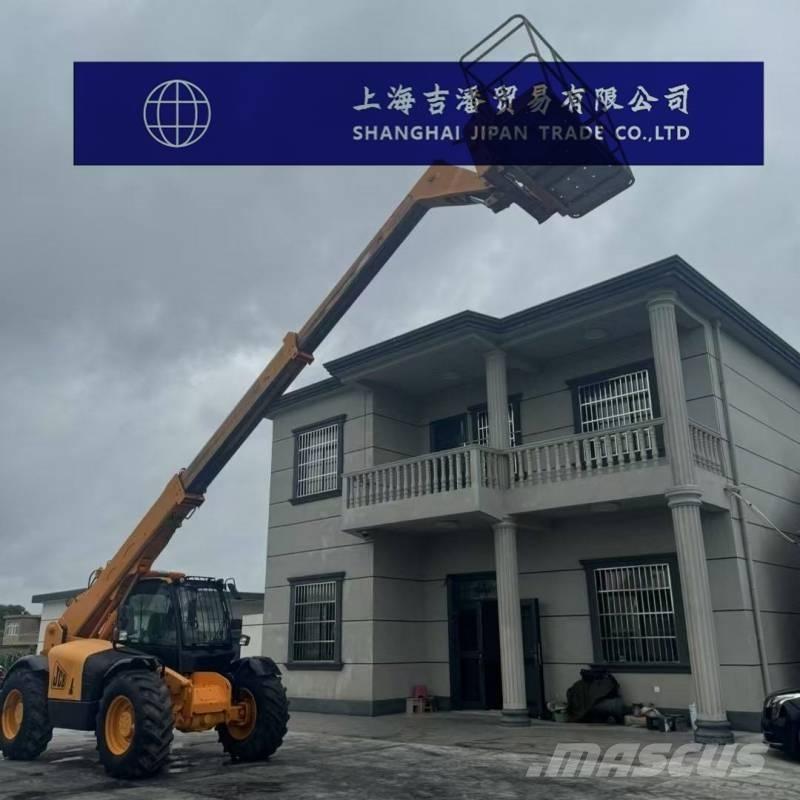

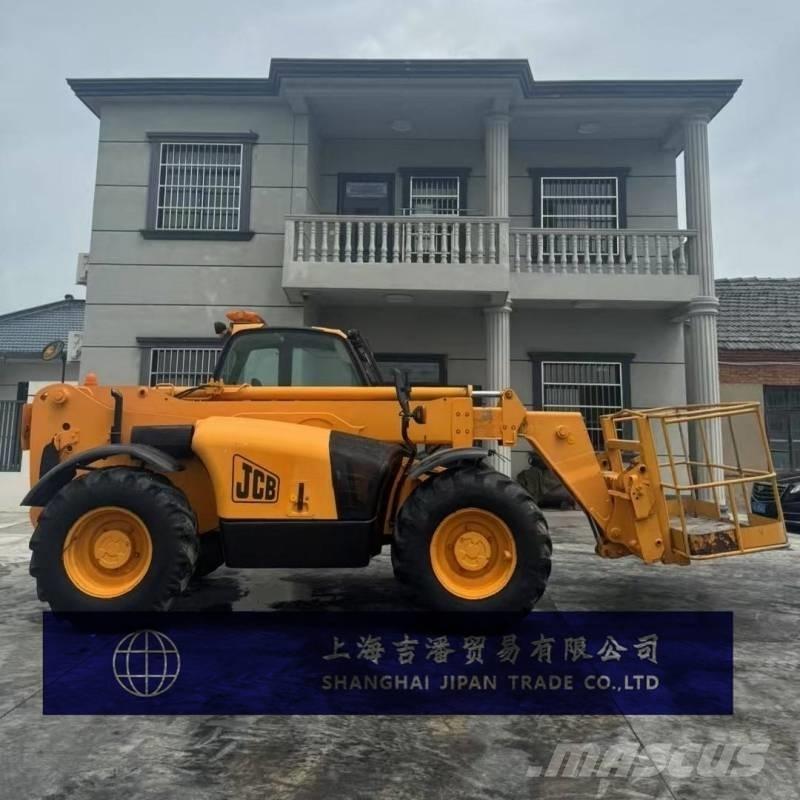

杰西博 535-95

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of JCB 535-95 Basic performance Engine power (kW)63/2200 Operating weight (kilograms):8,160 Rated load (kg):3500 Horsepower (100 horsepower) or less The maximum load (in kilograms) is over 3,500 kilograms Job parameters Maximum lifting capacity (kg):3500 Maximum lifting height (m):9.5 Maximum external elongation (m)6.52 Unloading distance (at the maximum height) (mm):2.43 The maximum lifting height and overturning load (kg) are 1600 Maximum external elongation overturning load (kg)500 Turning radius (m)3.7 Engine Model: JCB StageII Diesel Engine Rated power (kw/rpm)63/2200 Maximum torque (N.m)320（362）/1200(Naturally aspirated :320; Turbocharging:362 Cylinder diameter × stroke (mm)103×132 Displacement (L):4.4 Hydraulic system The main pump form is a gear pump The maximum working pressure of the system (bar) is 241 The maximum system flow rate (L/min) is 82 Transmission system Gear 4 Maximum driving speed (km/h):29/33 Tire size:15.5/80-24 Oil capacity Fuel tank (L)148 Engine coolant (L)23 Hydraulic oil tank (L)113 Overall dimensions The total length of the entire machine (mm) is 4990 The overall width of the machine (mm) is 2290 The total height of the entire machine (mm) is 2490 The cab height (mm) is 2490 Wheelbase (mm):2750 Track (mm):1870 Ground clearance (mm):400
