Conrad Boxer 200

不含税价格

向卖家询价

Compnay LOGO
Images32

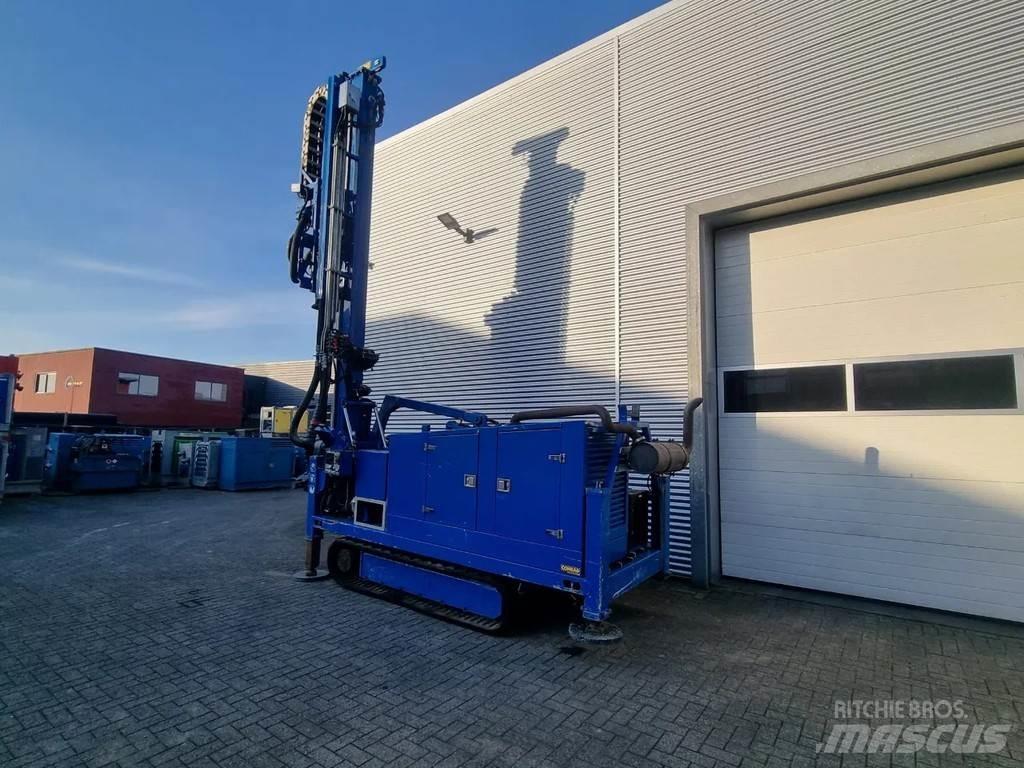

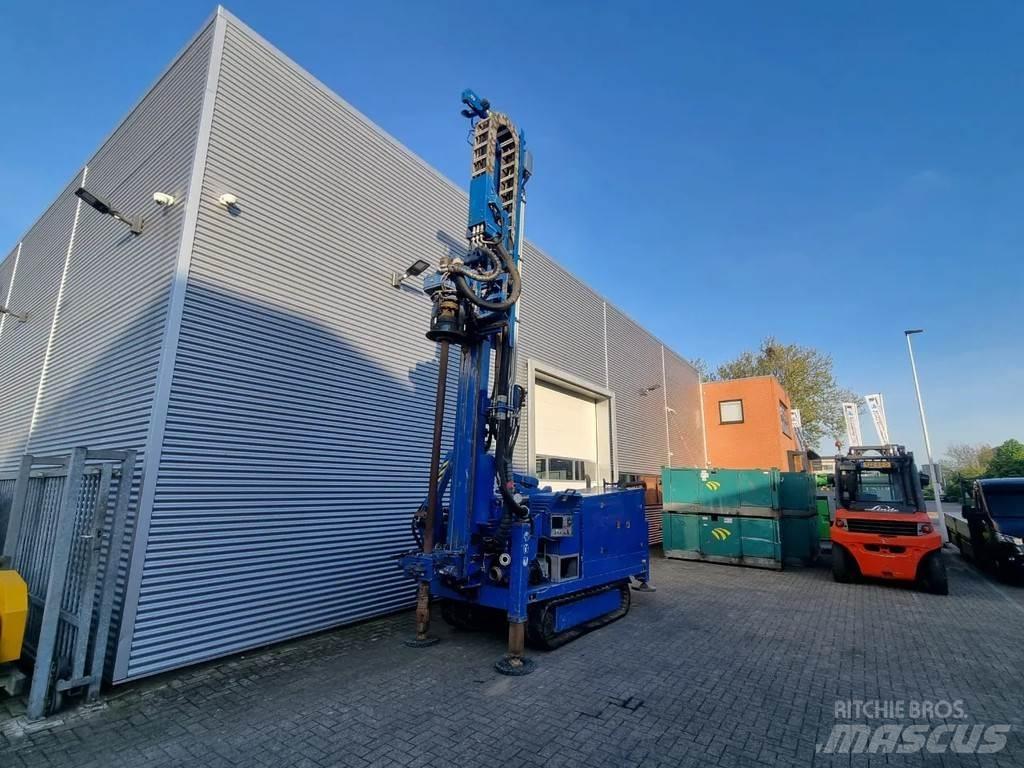

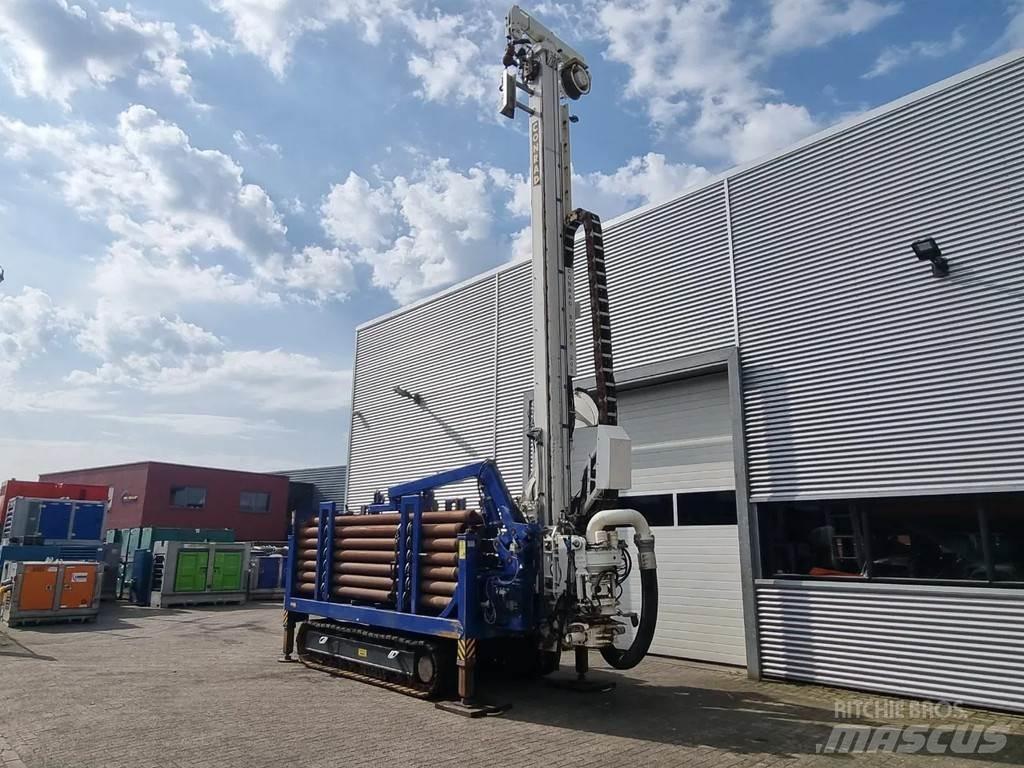

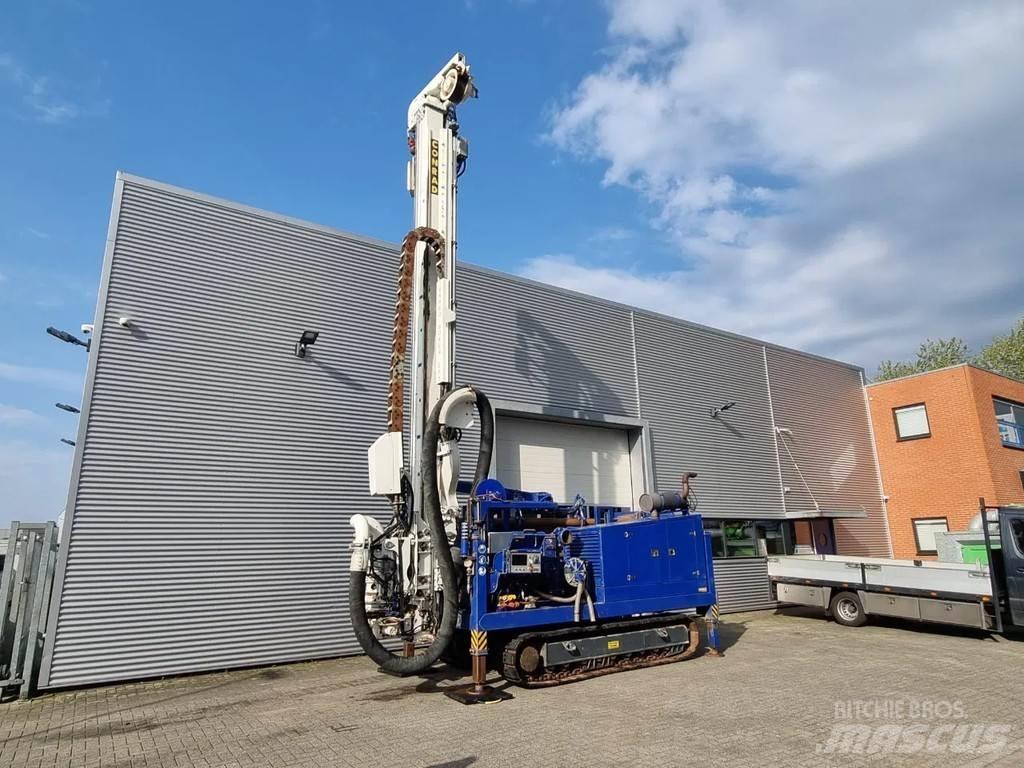

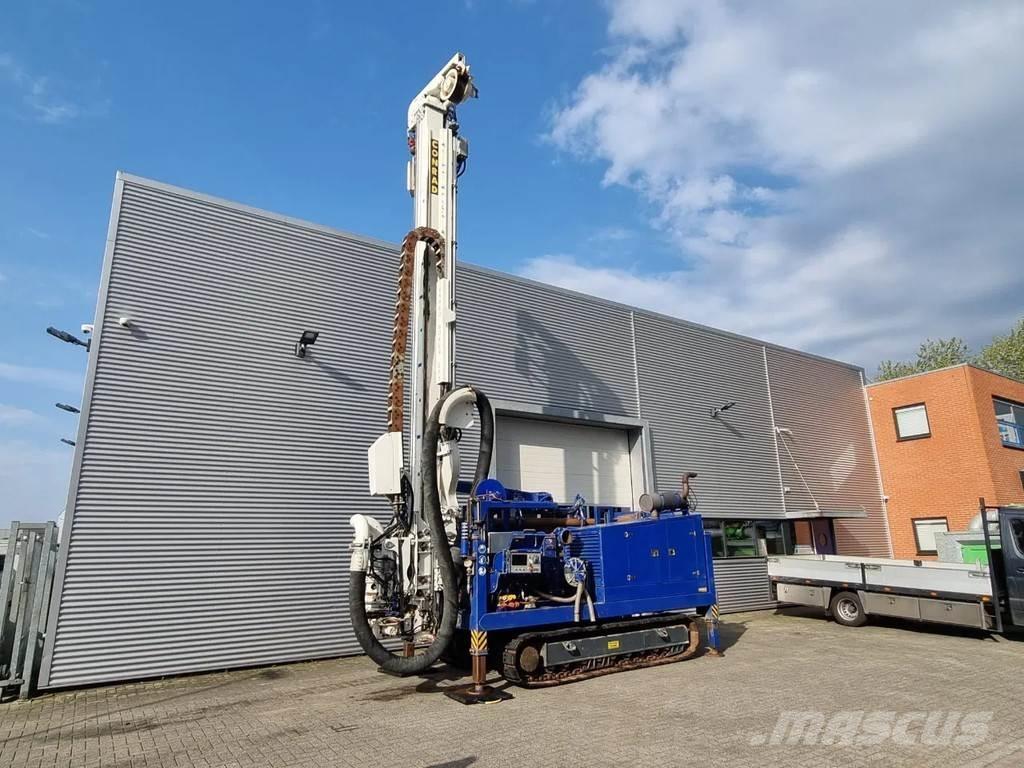

Conrad Boxer 200 钻孔机
Conrad Boxer 200 钻孔机
Conrad Boxer 200 钻孔机
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
钻孔机
品牌/型号
Conrad Boxer 200
生产年份
2019
使用小时
5984 小时
设备所在位置
Apeldoorn
国家
荷兰
一般等级
1
2
3
4
5
马斯客 ID
710A505C

详细信息

内部库存编号
24B00002
托架类型
履带式
运输状态重量
13500 公斤
运输尺寸(长x宽x高)
8660 x 2160 x 8930 mm
证书
CE认证
附属装置
NL: Afvangklem gemonteerd in voet van de mast, Direct inzetbaar, op voorraad!, rubberen trek EN: Can be used immediately, Catch clamp mounted in base of the mast, in stock!
其他信息
Conrad Boxer 200 drill 2019 Pull-up 8000 daN / kg Pull-down 4000 daN / kg Winch // Witch 1450 daN / kg Year of construction 2019 Weight 12,500 kg Stroke 430 cm This Conrad boxer is equipped with: Track chassis - track length h.o.h.: 2905 mm. - track width: 400 mm. Winch Brevini EGO025 Max. pulling force: 1000 daN. Steel cable length: 40 meters / Ø7 mm Pull up / pull down system mast 638520 Effective stroke: 5.8 meters Max. pulling force: 8000 daN. Max. compressive force: 4000 daN. Upward speed: 1.0 m/sec Downward speed: 0.5 m/sec Hydraulically driven 5" Drill head Borage: 125 mm, 5” Drive torque high: approx. 1000 daNm at 10-60 rpm Drive torque low: approx. 500 daNm at 20-110 rpm Breakaway torque: approx. 1200 daNm Hydraulically operated change clock suitable for Drill pipe COD 160 L=4000 Flushing head suspension with weight compensation Hydraulically operated catch clamp Hydraulic tank 480 litres Hydraulically driven spray pump Drill pipe manipulator Drill pipe storage rack 4 metres 160 inch drill pipes 1 cassettes It is equipped with a manipulator. Immediately available to earn money for you. Interested? Please contact us for more information. We are happy to help you = More information = General information Year of manufacture: 2019 Model year: 2019 Technical information Power: 94 kW (128 HP) Number of cylinders: 4 Type of fuel: Diesel Functional Working width: 200 cm Condition Technical condition: good Visual appearance: good Financial information Price: On request Other information Track width: 200 cm Additional information Please contact Gert-Jan Kruitbosch (+31648061001, sales@vantongerentrading.nl) or John van Tongeren (+31620537017) for more information = Dealer information = Aroused your interest? . The sales team will be happy to answer any questions you may have. CALL or EMAIL us, we are here for you! We would like to be your supplier ! Also for spare parts, pipes, hoses , coupling systems and fittings. A physical visit to our location is very well possible! Make your visit known in advance to avoid disappointment. Visit : from Monday to Friday from 08.00 to 17.00 on Saturdays or in the evenings by appointment.显示更多

Van Tongeren Trading

Tweelingenlaan 111 7324 AR Apeldoorn Gelderland 荷兰
