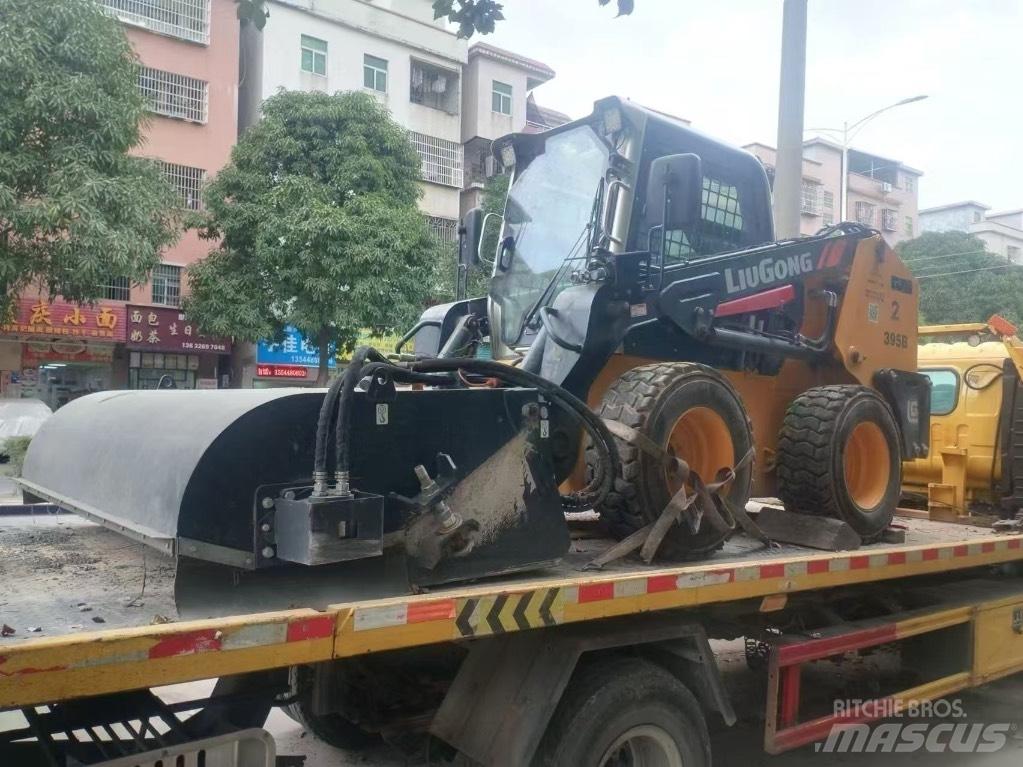

柳工 395B

Engine: Perkins 1104D-44T， The rated power is 70kW/2300rpm, the maximum torque is 392N · m/2300rpm, and the total displacement is 4.4L Whole machine weight: 3870kg Standard bucket capacity: 0.55m ³ Bucket lifting force: 32.63kN Lifting force of boom: 26.20kN Walking mode: tire type Tonnage range: 1 ton or more Maximum unloading height: 2572mm Unloading distance (at maximum height): 587mm Overall dimensions: total length (with bucket) 3851mm, total length (without accessories) 2973mm, total width (tire edge) 1850mm, total height 2055mm Wheelbase: 1334mm Track width: 1536mm Minimum ground clearance: 200mm Hydraulic system flow rate: 101.2L/min at rated speed, rated working pressure of 21Mpa Transmission system: maximum driving speed (forward) 11km/h, maximum driving speed (backward) 22km/h Tire size: Vacuum tire 12-16.5 TI20 Characteristics and application scenarios The Liugong 395B skid steer loader has the following characteristics and application scenarios: Compact and flexible: adopting an integral frame, it can achieve 360 ° turning in place, especially suitable for working in narrow spaces Wear resistant tires: reinforced wear-resistant tires with stronger grip and longer working time, optional solid tires Efficient power: Adopting the original imported Sa'ao dual piston pump and PAKER working pump from the United States, the engine's kinetic energy reaches 100% output Safety protection: Equipped with internationally certified Roll Over Protection (ROPS) and Fall Over Protection (FOPS), the cab features a flip up design with clear key components for easy maintenance and upkeep
