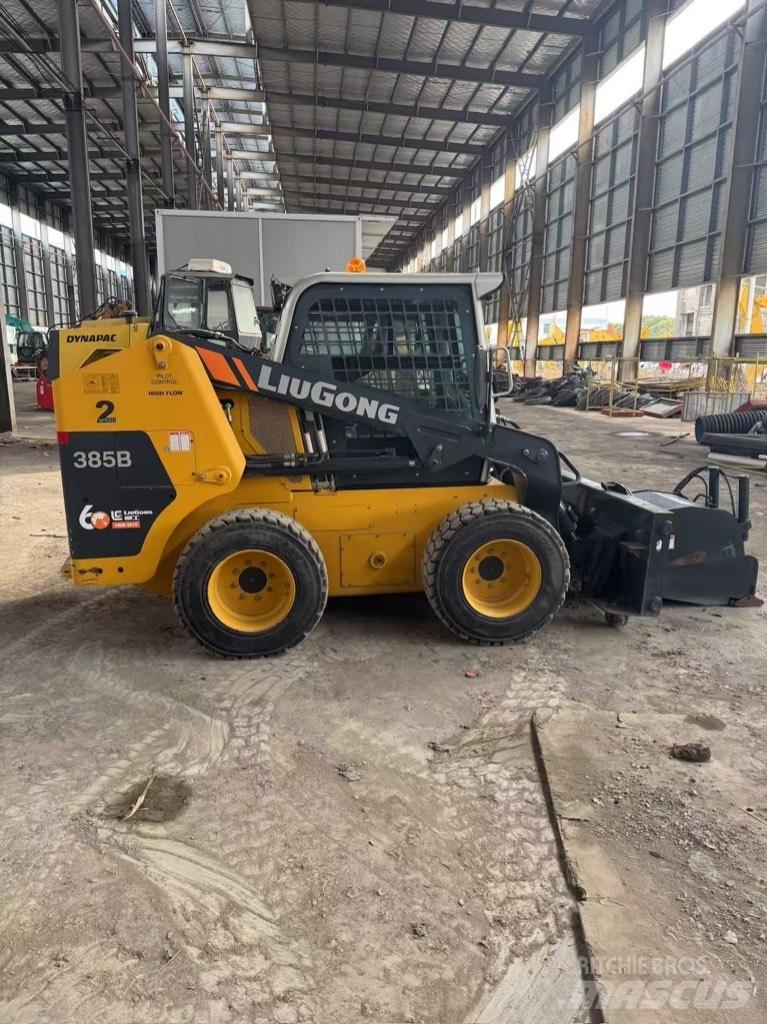

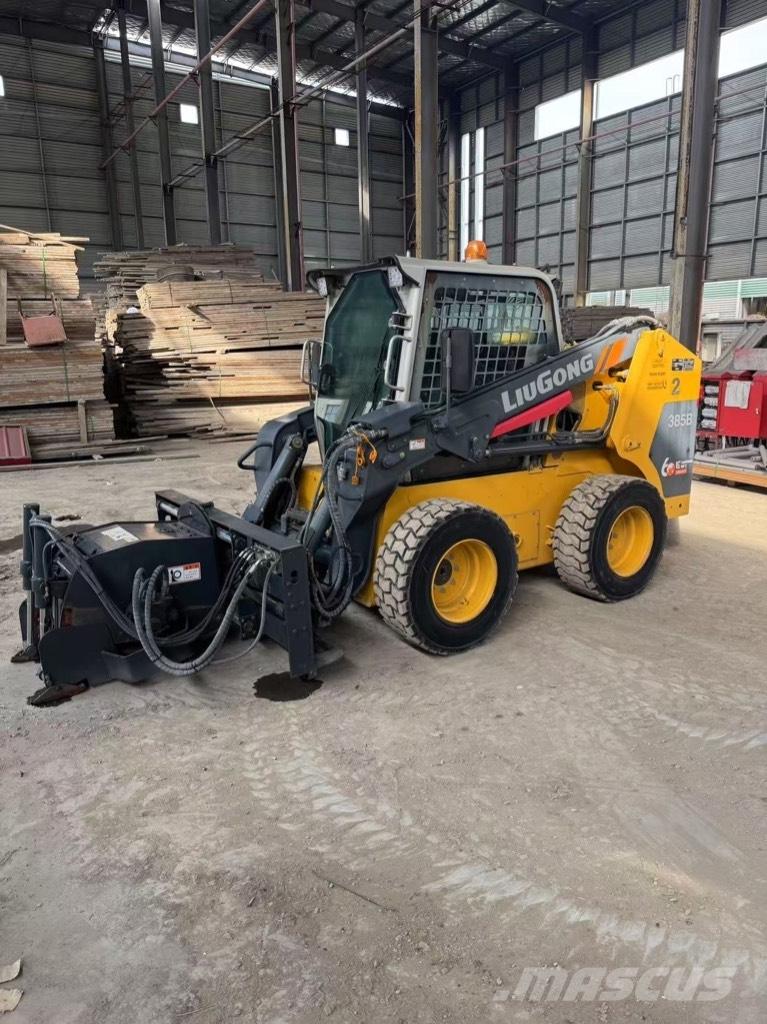

The parameters of Liugong CLG385B skid steer loader are as follows:
Rated loading capacity: 1045 kg
Whole machine weight: 3750 kg
Bucket lifting force: 29.81 kN
Lifting force of boom: 20.31 kN
Standard bucket capacity: 0.5 m ³
Walking mode: tire type
Engine model: 4TNV98T
Rated power: 61.3 kW/2400 rpm
Maximum torque: 292.6 N · m/2400 rpm
Total displacement: 3.3 liters
Fuel consumption rate: g/kW · h (specific value not provided)
Fuel type: diesel
Hydraulic system: Hydraulic pump flow rate 79.2 L/min, rated working pressure not provided
Drive system: Maximum driving speed (forward/backward): 11.6 km/h/23.1 km/h
Tire size: Vacuum tire 12-16.5 TI200
Fuel tank capacity: L (specific value not provided)
Hydraulic oil tank capacity: L (specific value not provided)
Engine oil capacity: L (specific value not provided)
Coolant capacity: L (specific value not provided)
Overall dimensions: total length (with bucket) 3851 mm, total length (without accessories) 2973 mm, total width (tire edge) 1850 mm, total height 2034 mm, wheelbase 1334 mm, wheelbase 1536 mm, minimum ground clearance 200 mm, bucket width 1850 mm显示更多
