卡特 246 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

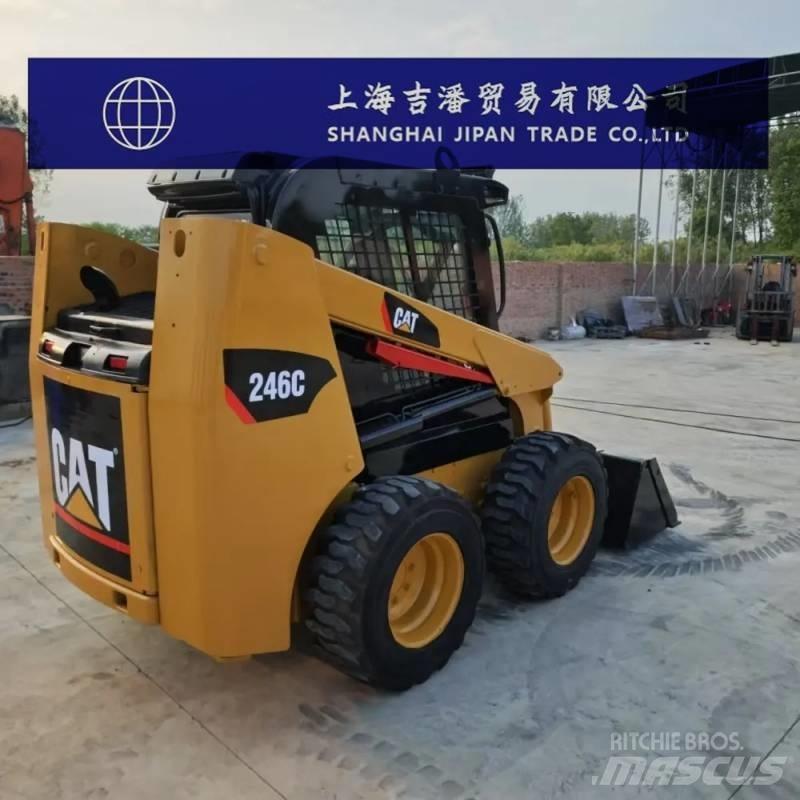

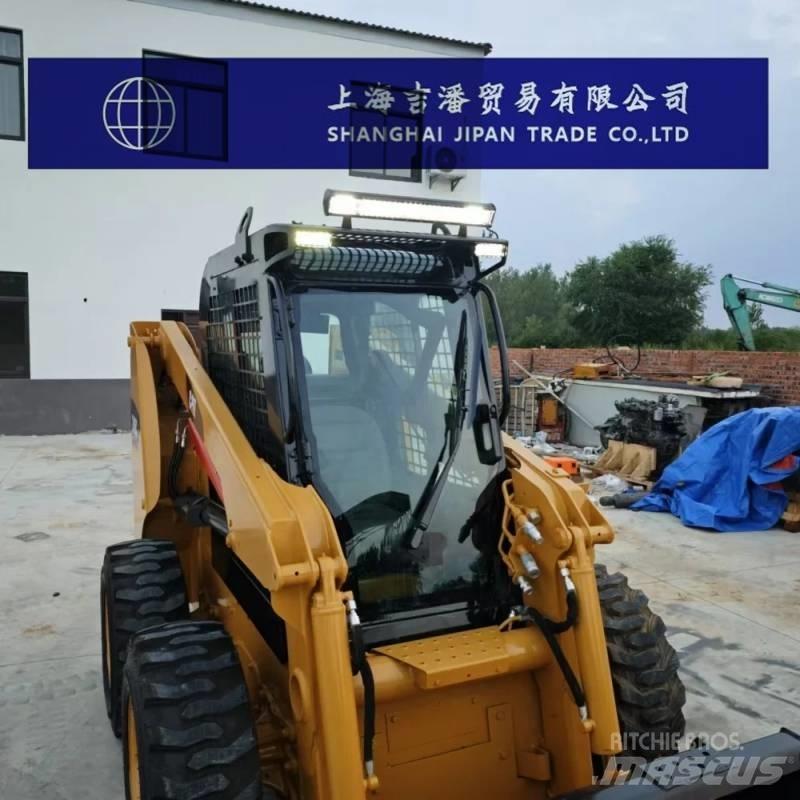

Parameter configuration of Cat 246C skid Steer loader Basic performance Rated loading capacity (kg) :975 Overturning load (kg)1950 The overall weight of the machine (kg) is 3,348 The form of the lifting mechanism is radial lifting Bucket lifting force (N) 32,575 Load capacity (ton) : 0.8-1 ton Engine Engine model: Caterpillar CAT 3044C DIT Rated power (kw/rpm)56 Displacement (L)3.3 Through performance Maximum driving speed (km/h) : 12.5/19.3 Forward turning radius (with bucket) (mm)2413 Forward turning radius (without accessories) (mm)1629 Rear turning radius (mm) : 1486 Departure Angle (°)26 Hydraulic system System safety pressure (bar)230/280 System rated flow rate (L/min) : 84/125 Oil capacity Fuel tank (L)98 Crankcase (L)10 Engine coolant (L)14 Hydraulic oil tank (L)42 Hydraulic System (L)57 Sprocket oil tank (L)10 Scope of work Maximum unloading height (mm) : 2425 Unloading distance (at the maximum height) (mm) : 600 The maximum height (mm) of the bucket hinge pin is 3122 The unloading Angle (°) at the maximum unloading height is 40 The retraction Angle of the bucket at its highest point (°) is 96 Overall machine specification Total length (with bucket) (mm) : 3692 Total length (without accessories) (mm)3124 Full width (tire edge) (mm)1676 Full height (up to the top of the cab) (mm)2083 Wheelbase (mm) : 1240 Minimum ground clearance (mm) : 225
