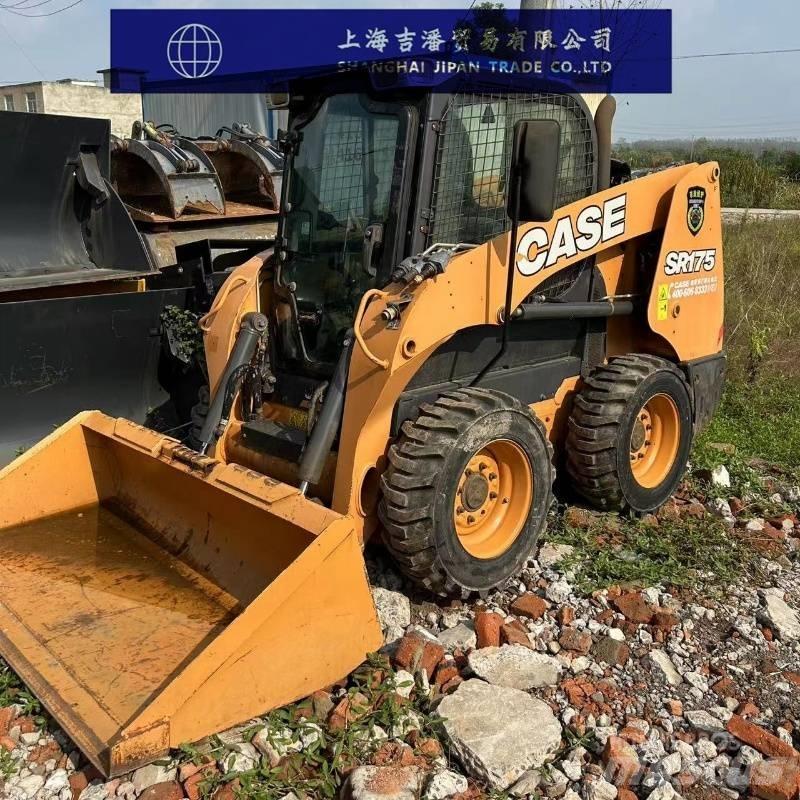

凯斯 SR 175
不含税价格
打印
信息
类别
滑移装载机
品牌/型号
凯斯 SR 175
生产年份
2021
使用小时
1060 小时
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
CBD1AADC
定价
选择币种
详细信息
内部库存编号
1
电源类型
柴油机
生产号/编号
1
最新检验记录
2025-07-04
底盘状态
Good Condition
先前车主有几个
1
毛重
2894 公斤
最大起重能力
1588 公斤
注册编号
1
车型
固定构件
车厢类型
封闭式驾驶室
排放标准
第V阶段
发动机
Original
料斗容积
0.05 m3
发动机输出功率
44.1 kW (60.0 马力)
发动机制造商
Original
最大速度
18.4 千米/小时
辅助液压设备的输出量
72 l/min
运输尺寸(长x宽x高)
3400 x 1676 x 1970 mm
原色
Original
托架类型
带轮子的
状态/质保
1 Year
轮胎品牌
Original
剩余前轮/车盘
98
后轮胎折旧程度
2
后轮尺寸
Original
前轮尺寸
Original
制造国
美国
成交条件
FCA, FOB, CIF, EXW
证书
EPA环境保护署, CE认证
附属装置
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
配件
附加液压设备
负载感应
倒车警示器
操纵杆
其他信息
Basic performance parameters
Rated loading capacity: 790kg
Overturning load: 1588kg
Overall weight: 2894kg
Lifting mechanism form: Radial lifting
Bucket lifting force: 31.8kN (or 31,800 N)
Boom lifting force: 21.3kN (or 21,300 N)
Engine parameters
Engine model: Cummins ISM N844T/M3
Working form: Non-direct injection
Rated power: 44.1kw/2900rpm (or 60hp, 1hp=0.7457kw, there is a difference in unit conversion here, but the values are similar and may vary due to different sources or versions)
Maximum torque: 171N·m/1800rpm
Displacement: 2.2L
Number of cylinders: 4 cylinders
Emission standard: EPA Tier3 (The third stage emission standard of the United States Environmental Protection Agency)
Through performance parameters
Maximum torque output by the drive motor: 1784N · m/cc (This parameter may vary depending on specific configuration)
Maximum driving speed: 11.8km/h (or 18.4km/h, optional)
Tire size: 10×16.5
Forward turning radius (with bucket) : 2000mm
Forward turning radius (without accessories) : 1300mm
Rear turning radius: 1600mm
Departure Angle: 22.5°
Parameters of the hydraulic system
Main pump type: Gear pump
System safety pressure: 210bar
System rated flow: 72L/min (or 108L/min, optional)
Oil capacity parameters
Fuel tank: 75.5L
Hydraulic system: 20L (This may refer to the capacity of a certain part of the hydraulic system. For specific details, please refer to the official instructions.)
Crankcase: 8.5L
Sprocket oil tank: 6.7L (Specific function and capacity may vary by model)
Operation range parameters
Maximum working height: (Not directly given, but can be calculated through other parameters)
Maximum unloading height: 2470mm
Unloading distance (at maximum height) : 540mm
The maximum height of the bucket hinge pin is 3100mm
The unloading Angle at the maximum unloading height: 39.6°
The retraction Angle of the bucket at its highest point: 98.6°
The retraction Angle of the bucket on the ground: 31.6°
Overall machine specification parameters
Total length (without accessories) : 2690mm
Total length (with bucket) : 3400mm
Full width (tire edge) : 1627mm
Full width (edge of the bucket) : 1676mm
Total height (up to the top of the cab) : 1970mm
Wheelbase: 1130mm
Track: 1350mm
Minimum ground clearance: 180mm
