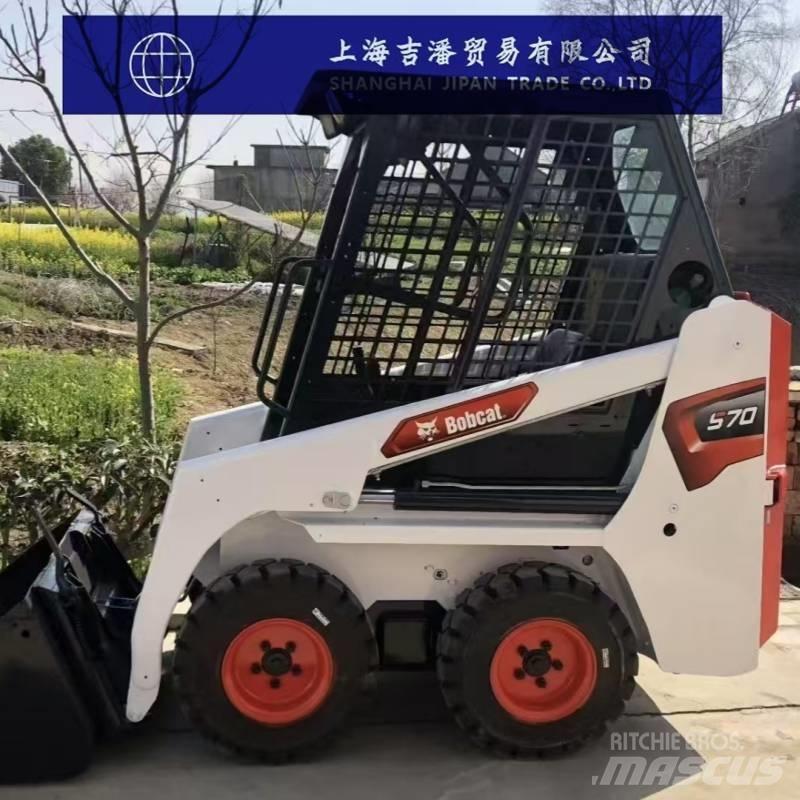

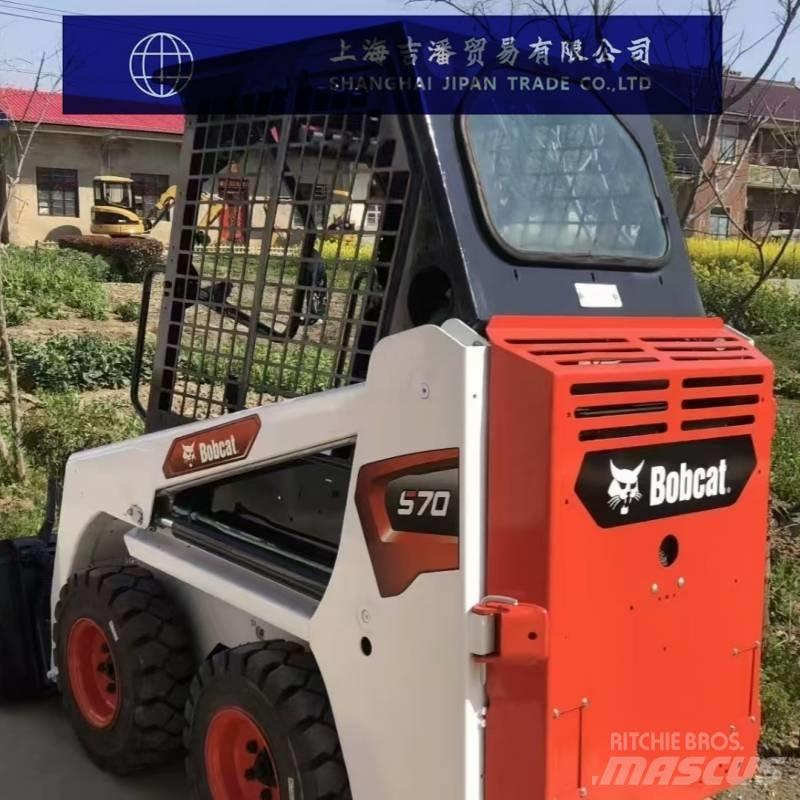

山猫 S 70

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance parameters Rated loading capacity: 343kg Overturning load: 686kg The total weight of the machine is 1268kg Lifting mechanism form: Radial lifting Rated loading bucket capacity: Not mentioned Engine parameters Engine model: Kubota KUbota D1005-E3B-BC-3 Rated power: 16.8kw/3000rpm Maximum torque: 62.8N.m/2200rpm Displacement: 1.001L Number of cylinders: 3 Emission standard: Not mentioned Through performance parameters Drive motor form: Not mentioned Maximum torque output by the drive motor: Not mentioned Maximum driving speed: 9.8km/h Tire size: 23×5.70-12 Front turning radius (with bucket) : 1557mm Departure Angle: 25° Hydraulic system parameters Main pump type: Not mentioned System safety pressure: 207bar System rated flow rate: 37L/min Ascension time: Not mentioned Unloading time: Not mentioned Release time: Not mentioned Three items and: Not mentioned Oil capacity parameters Fuel tank: 24.6 liters Hydraulic oil tank: Not mentioned Hydraulic system: Not mentioned Engine coolant: Not mentioned Crankcase: Not mentioned Sprocket oil tank: Not mentioned Operation scope parameters Maximum working height: Not mentioned Maximum unloading height: 1891mm Unloading distance (at the maximum height) : 469mm The maximum height of the bucket hinge pin is 2399mm The unloading Angle at the maximum unloading height: 34° The retraction Angle of the bucket at its highest point: 97° The retraction Angle of the bucket on the ground: 22° Whole machine specification parameters Total length (without attachments) : 1917mm Total length (with bucket) : 2553mm Full width (tire edge) : 901mm Full width (edge of the bucket) : 914mm Total height (up to the top of the cab) : 1814mm Wheelbase: 722mm Track: 752mm Minimum ground clearance: 140mm
