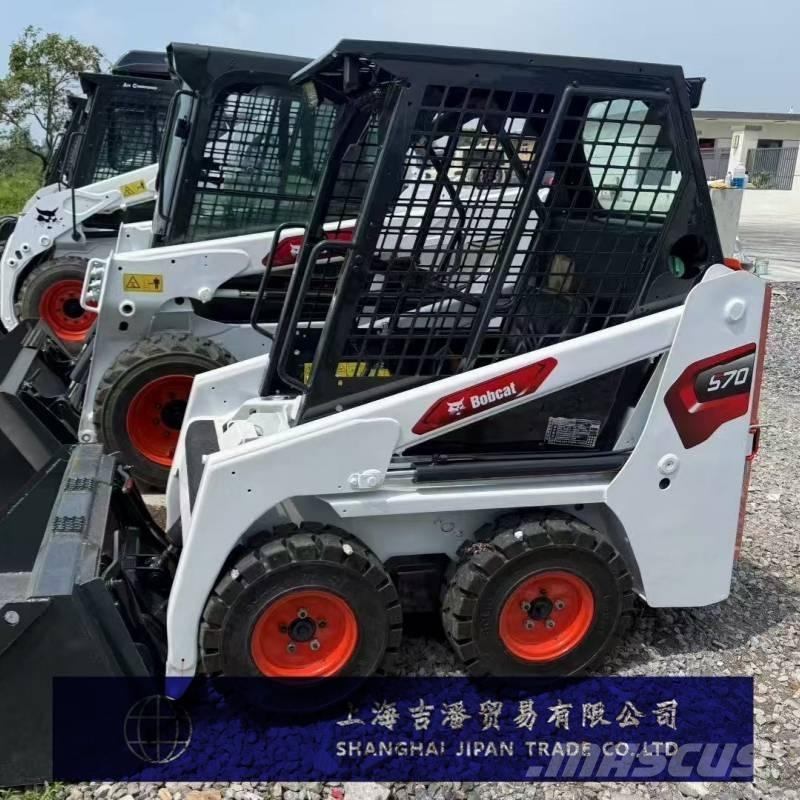

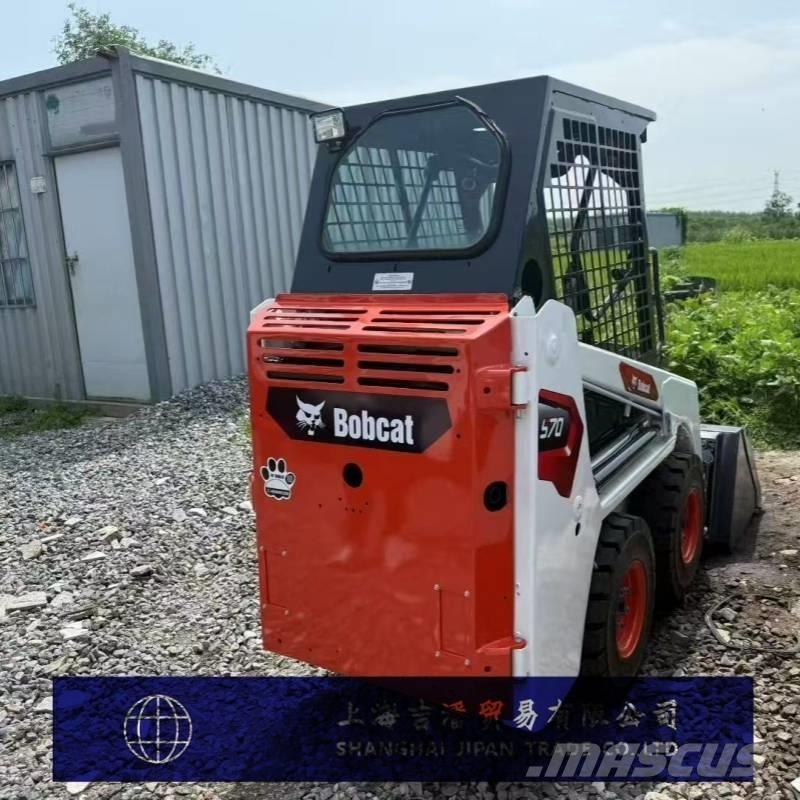

山猫 S 70

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Basic performance parameters Rated loading capacity:343kg Overturning load:686kg The total weight of the machine is 1268kg Lifting mechanism form:Radial lifting Engine parameters Engine model: Kubota Rated power:16.8kw/3000rpm Maximum torque:62.8N.m/2200rpm Displacement:1.001L Number of cylinders:3 Through performance parameters Maximum driving speed:9.8km/h Tire size:23×5.70-12 Front turning radius (with bucket):1557mm Departure Angle:25° Hydraulic system parameters System safety pressure:207bar System rated flow rate:37L/min Oil capacity parameters Fuel tank:24.6 liters Operation scope parameters Maximum unloading height:1891mm Unloading distance (at the maximum height):469mm The maximum height of the bucket hinge pin is 2399mm The unloading Angle at the maximum unloading height:34° The retraction Angle of the bucket at its highest point:97° The retraction Angle of the bucket on the ground:22° Whole machine specification parameters Total length (without attachments):1917mm Total length (with bucket):2553mm Full width (tire edge):901mm Full width (edge of the bucket):914mm Total height (up to the top of the cab):1814mm Wheelbase:722mm Track: 752mm Minimum ground clearance:140mm
