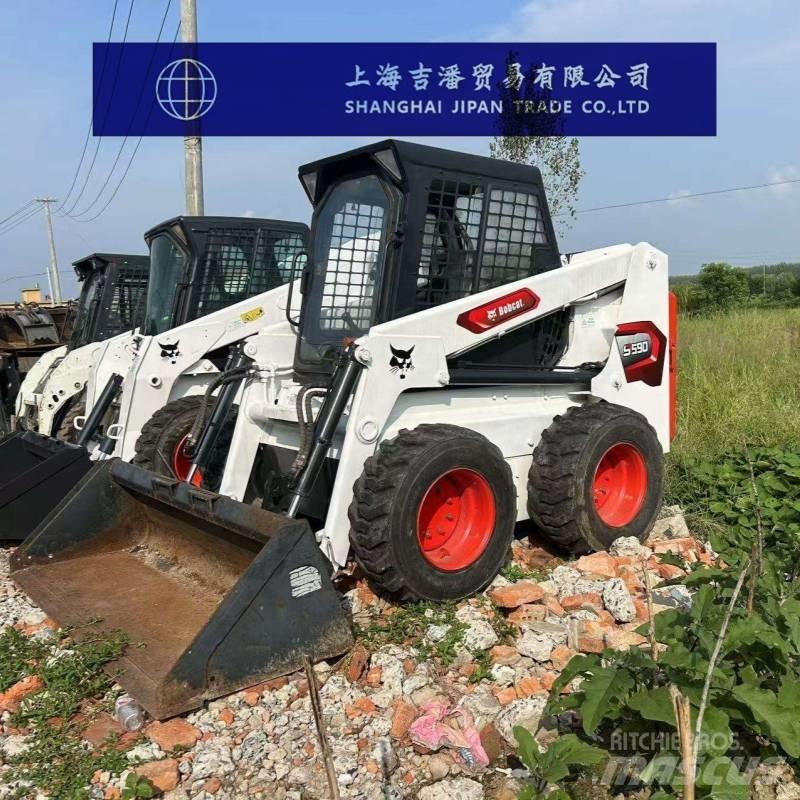

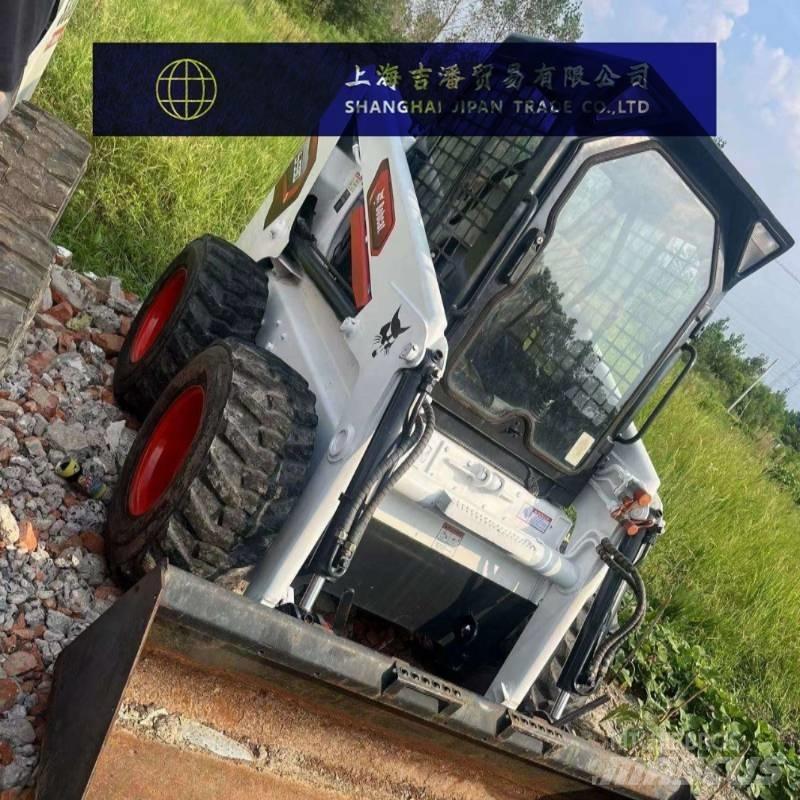

山猫 S 590
不含税价格
打印
信息
类别
滑移装载机
品牌/型号
山猫 S 590
生产年份
2022
使用小时
600 小时
国家
中国
一般等级
1
2
3
4
5
马斯客 ID
EFB0C720
定价
选择币种
详细信息
内部库存编号
1
电源类型
柴油机
生产号/编号
1
最新检验记录
2025-06-30
底盘状态
Good Condition
先前车主有几个
1
毛重
3069 公斤
最大起重能力
953 公斤
注册编号
1
车型
固定构件
车厢类型
封闭式驾驶室
排放标准
第V阶段
发动机
Original
料斗容积
0.50 m3
发动机输出功率
50.7 kW (68.9 马力)
发动机制造商
Original
最大速度
18.4 千米/小时
辅助液压设备的输出量
64 l/min
运输尺寸(长x宽x高)
3378 x 1727 x 1972 mm
原色
Original
托架类型
带轮子的
状态/质保
1 Year
轮胎品牌
Original
剩余前轮/车盘
98
后轮胎折旧程度
2
后轮尺寸
Original
前轮尺寸
Original
制造国
美国
成交条件
FCA, FOB, CIF, EXW
证书
EPA环境保护署, CE认证
附属装置
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
配件
其他信息
Basic performance parameters
Rated loading capacity: 953kg
Overall weight: 3,069 kg
Bucket lifting force: 21.28kN
Boom lifting force: 20.67kN
Walking mode: Tire type
Tonnage range: 0.8-1 ton
Engine parameters
Engine model: Hyundai Doosan/D24 (National IV Emission Standard)
Type: Water-cooled, turbocharged diesel engine
Rated power: 50.7kW
Maximum torque: 252N·m
Total displacement: 2.4L
Parameters of the hydraulic system
Flow rate (at rated speed) : 64.7L/min
High-flow hydraulic volume: 101.1L/min
Rated working pressure: 23.8-24.5MPa
Parameters of the transmission system
Maximum driving speed (forward/backward) : 11.2/18.4km/h (single speed/dual speed)
Oil quantity parameter
Fuel tank capacity: 93.7 liters
Overall machine size parameters
The total length of the machine (including the bucket) is 3378mm
The total length of the machine (without accessories) is 2657mm
Overall width of the machine (tire edge) : 1643mm
Overall width of the machine (edge of the bucket) : 1727mm
Overall height of the machine: 1972mm
Wheelbase: 1082mm
Track: 1374mm
Minimum ground clearance: 228mm
Operation scope parameters
Maximum unloading height: 2319mm
Unloading distance (at maximum height) : 818mm
The maximum height of the bucket hinge pin is 3023mm
Forward turning radius (with bucket) : 2032mm
Departure Angle: 24.2°
The tipping Angle of the bucket on the ground: 30°
Unloading Angle at the maximum unloading height: 42°
The maximum turning Angle of the bucket: 97°
