山猫 S 530

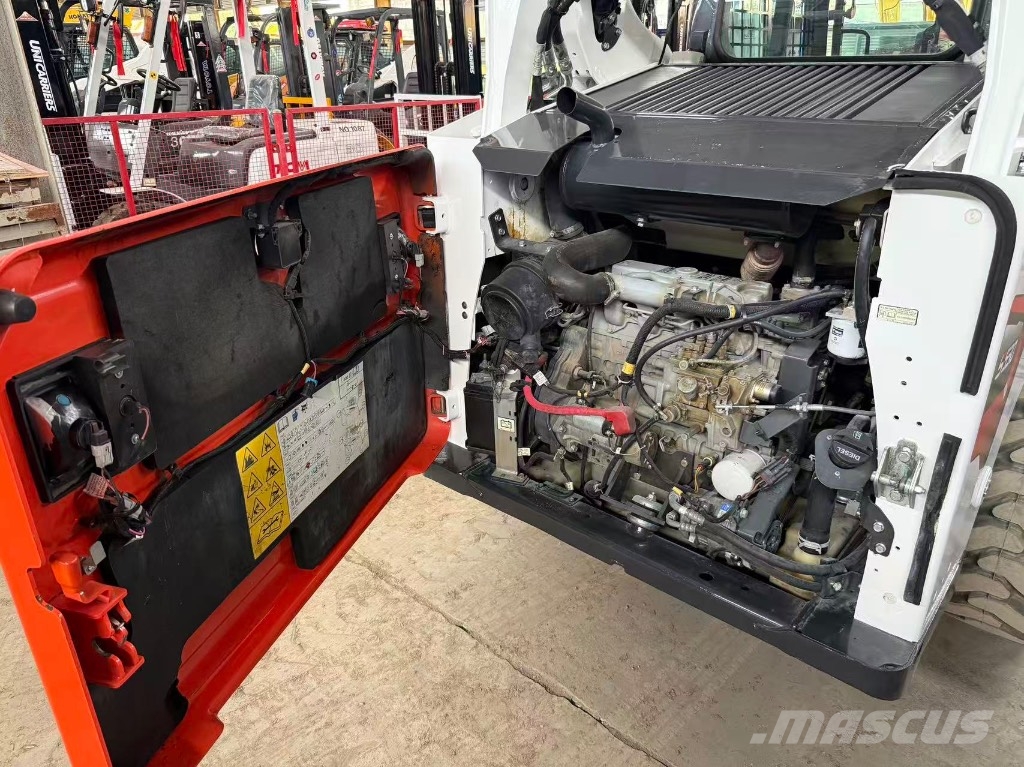

The Bobcat S530 is the replacement model for the vertical-lift S175, with a 45.3kg higher lifting capacity than its predecessor, featuring a wheeled travel design. Basic Performance: Rated operating capacity 869kg, tipping load 1738kg, operating weight 2815kg. Power Configuration: Equipped with a turbocharged diesel engine, rated power 36.5kW/r/min, total displacement 2.4L. Hydraulics & Transmission: Hydraulic system flow at rated speed 64.7L/min, maximum travel speed 11.8-17.3km/h. Machine Dimensions: Overall length with bucket 3378mm, overall width over tires 1727mm, overall height 1972mm, wheelbase 1082mm, minimum ground clearance 185mm. Working Range: Dump reach at maximum height 828mm, maximum bucket hinge pin height 3023mm.
