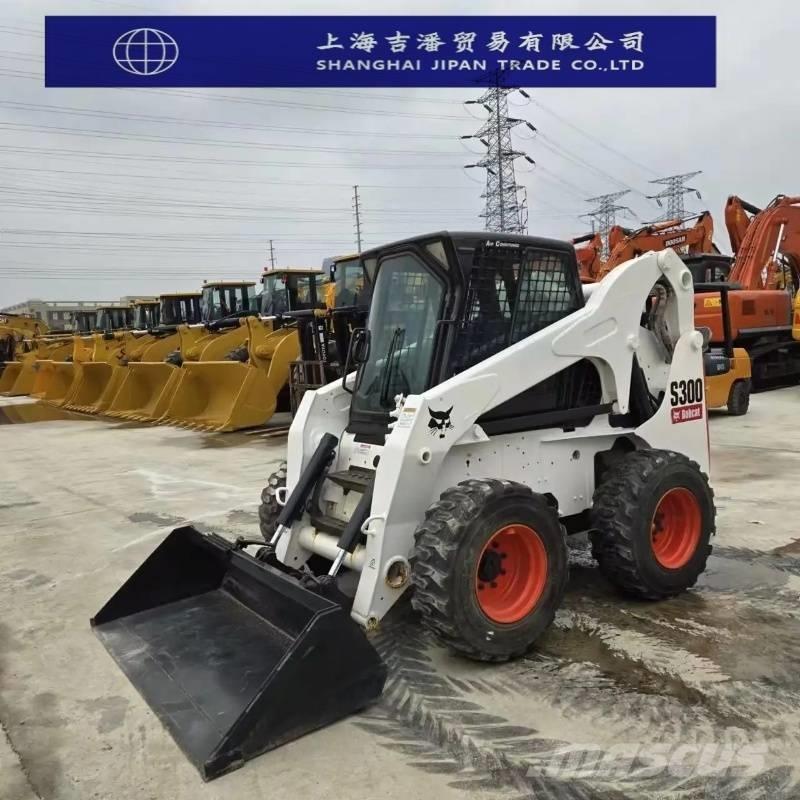

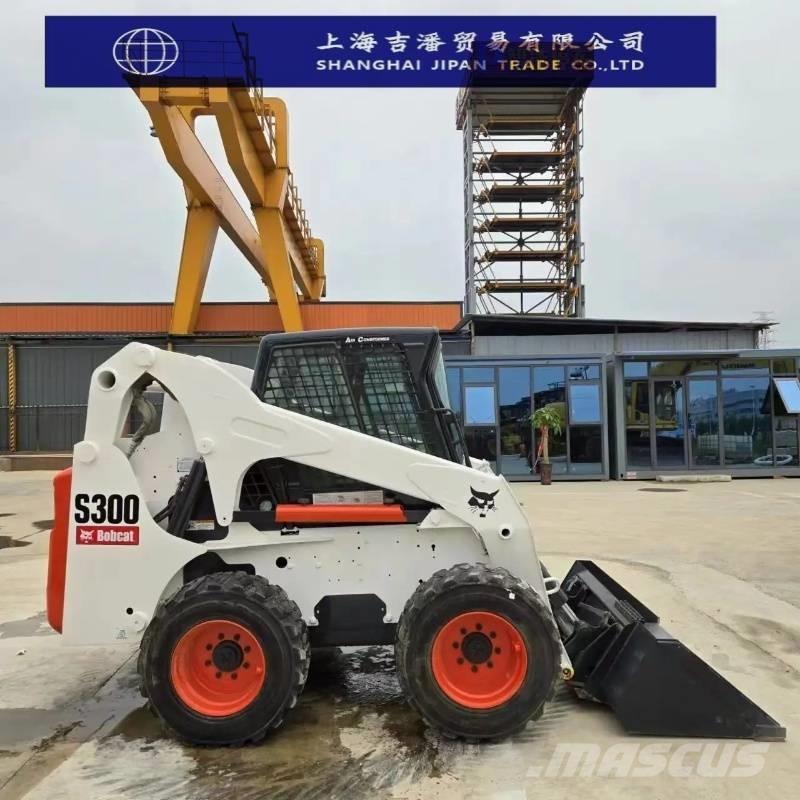

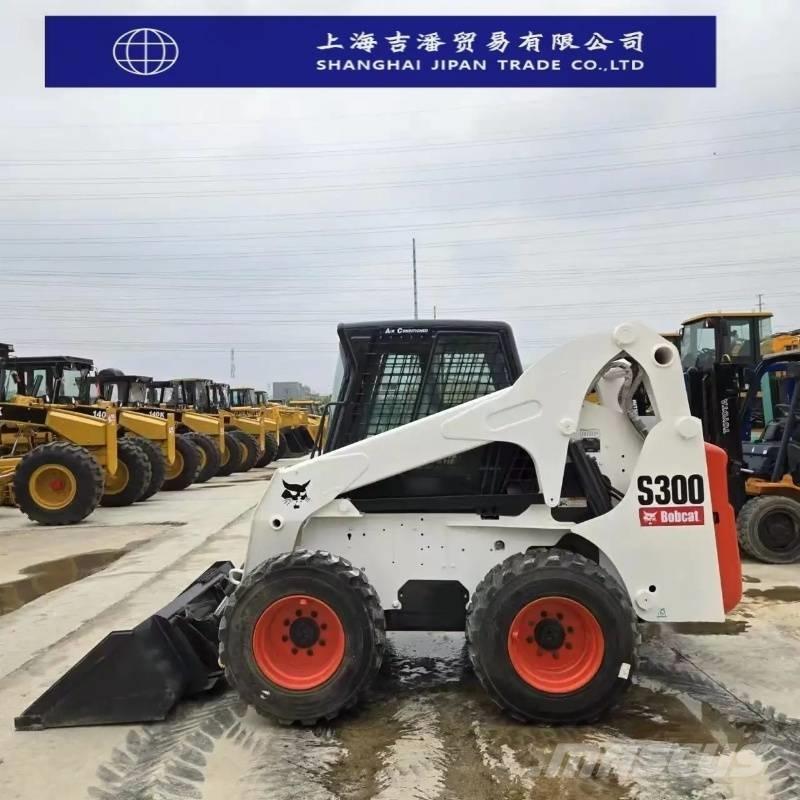

山猫 s 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance: Rated Operating Capacity: 1386kg Tipping Load: 2772kg Operating Weight: 3750kg / 3770kg (high - flow configuration) Lift Arm Type: Vertical lift Engine: Model: Kubota V3800 - DI - TE3 Type: Turbocharged, direct - injection diesel Rated Power: 60kW (81HP) Maximum Torque: 295N·m at 1600rpm Displacement: 3.7L Number of Cylinders: 4 Mobility: Maximum Travel Speed: 11.1 / 19.1km/h (two - speed optional) Tire Size: 12×16.5 Front Turning Radius (with bucket): 2139mm Departure Angle: 26° Hydraulic System: System Relief Pressure: 228bar System Rated Flow: 78.4 / 140L/min (high - flow configuration, optional) Fluid Capacities: Fuel Tank: 87.1L Working Range: Maximum Dump Height: 2586mm Dump Reach (at maximum height): 864mm Maximum Height of Bucket Hinge Pin: 3272mm Dump Angle at Maximum Dump Height: 41.9° Bucket Roll - back Angle on Ground: 30° Bucket Roll - back Angle at Maximum Height: 96.1° Overall Dimensions: Overall Length (with bucket): 3630mm Overall Length (without attachment): 2934mm Overall Width (tire edge): 1819mm Overall Width (bucket edge): 2032mm Overall Height (to top of cab): 2055mm Wheelbase: 1227mm Minimum Ground Clearance: 213mm
