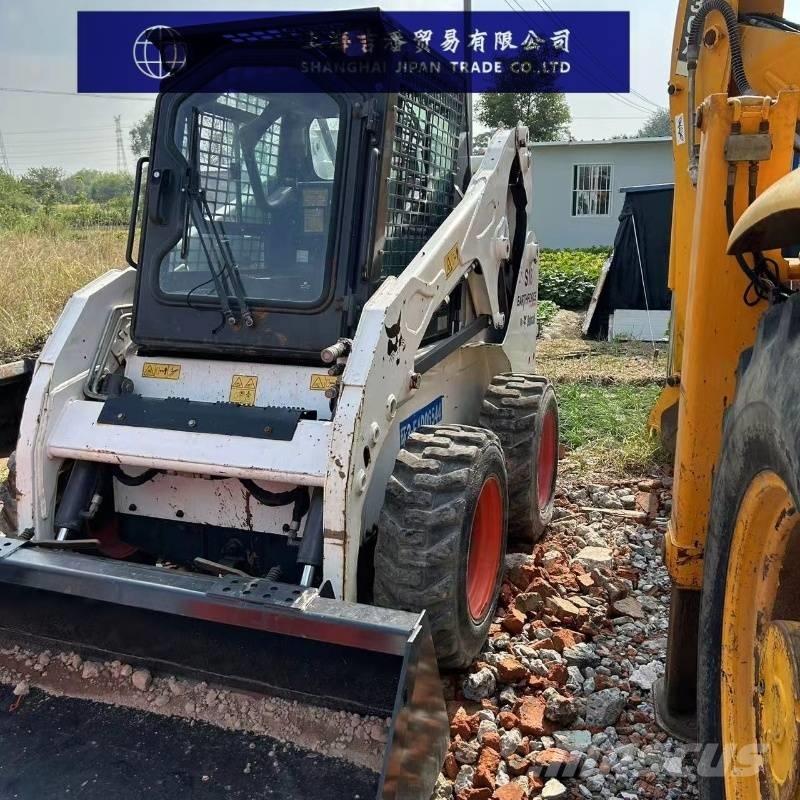

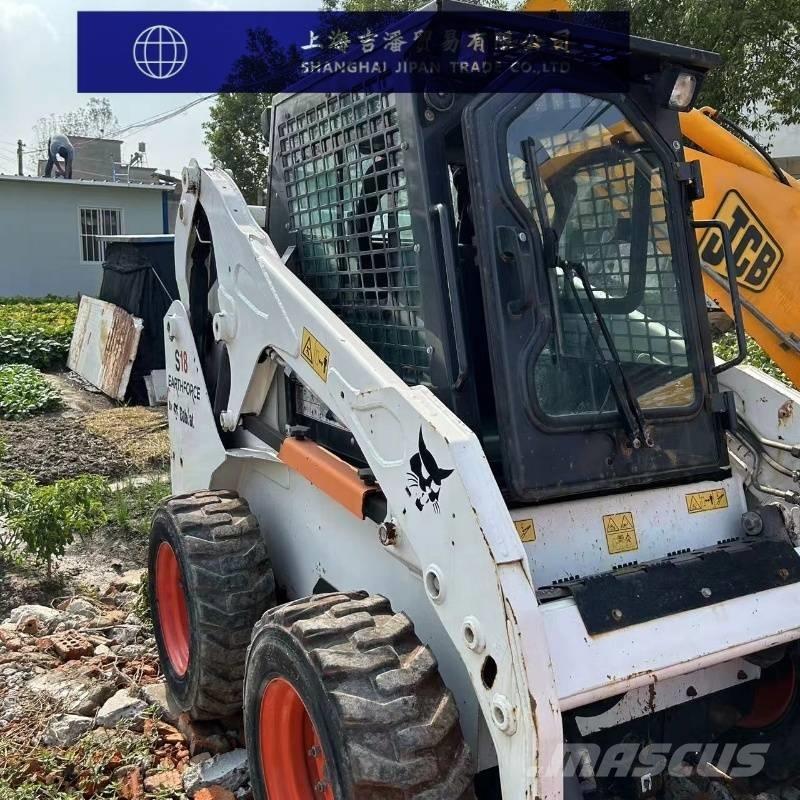

山猫 S 18

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance: Rated operating capacity of 894 kg, overall machine weight of 2,779 kg, bucket width of 1,727 mm, boom breakout force of 1,657 kg, and bucket breakout force of 1,862 kg. Engine: Model: Kubota/V2203-M-DI-E2B-BCC-1; type: water-cooled; rated power of 36.4 kW; maximum torque of 150 N·m; total displacement of 2.2 liters; fuel type: diesel. Hydraulic System: Flow rate (at rated speed): 57.2 liters per minute; rated working pressure: 28 MPa. Transmission System: Maximum travel speed (forward/reverse): 10.5 km/h. Oil Capacity: Fuel tank capacity: 80.8 liters. Overall Dimensions: Overall length with bucket: 3,374 mm; overall length without attachment: 2,657 mm; overall width over tire edges: 1,633 mm; overall height: 1,999 mm; wheelbase: 1,082 mm; track width: 1,375 mm; minimum ground clearance: 186 mm. Working Range: Maximum dump height: 2,301 mm; dump reach at maximum height: 767 mm; maximum height of bucket hinge pin: 3,002 mm; dump angle at maximum height: 43°.
