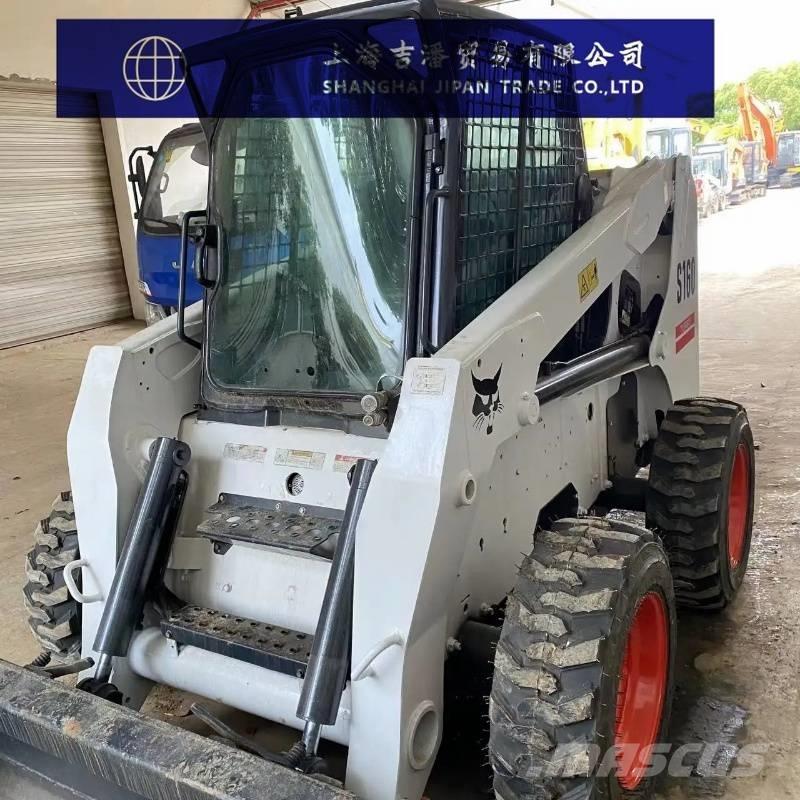

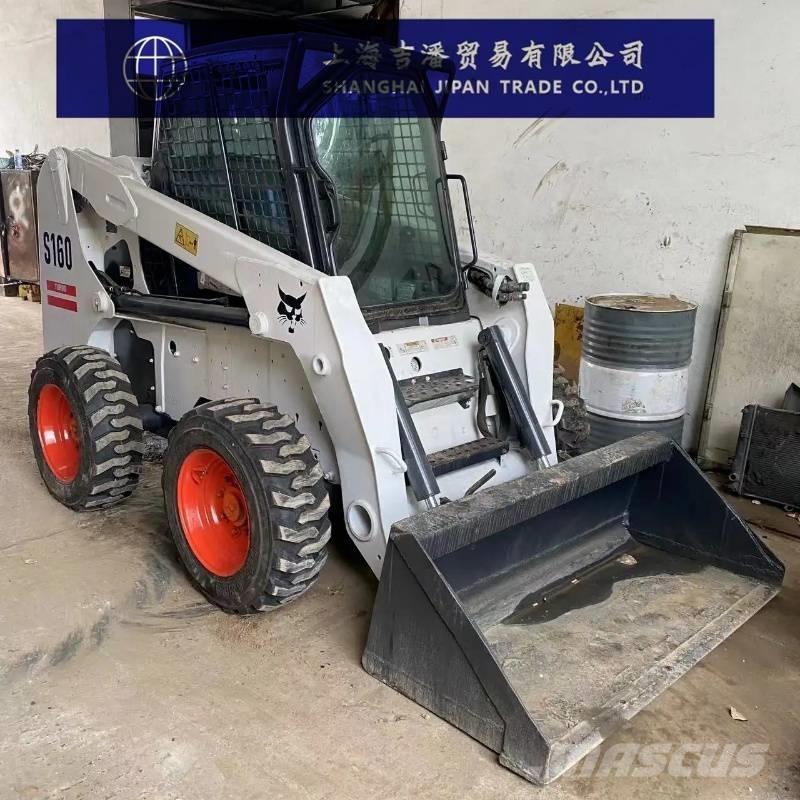

山猫 s 160

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Dimension Parameters: Length with bucket is 3310mm, length without bucket is 2588mm, tire width is 1676mm, height to top of cab is 1938mm, wheelbase is 1030mm, maximum lift dump radius is 459.7mm, swing radius from center at rear of machine is 2093mm, and maximum lift dump height from ground is 2310mm. Weight and Capacity Parameters: Operating weight is 2773.7kg, fuel capacity is 91L, and bucket capacity is 0.33m³. Engine Parameters: Equipped with a Kubota V2003-M-DI-T engine, with a power of 41.8kW (measured at 2800 rpm), displacement of 2L, and 4 cylinders. Performance Parameters: Operating speed is 11.7km/h, maximum speed is 17.9km/h, rated operating capacity is 725.7kg, and tipping load is 1497.3kg. Hydraulic System Parameters: Pump flow is 99.9L/min, and relief valve pressure is 22752.7kPa. Other Parameters: Features a radial lift loader boom, 80 HSOC roller chains, and 10x16.5 standard tires. Hydraulic tank capacity is 18.2L, and chain case oil capacity is 30.3L.
