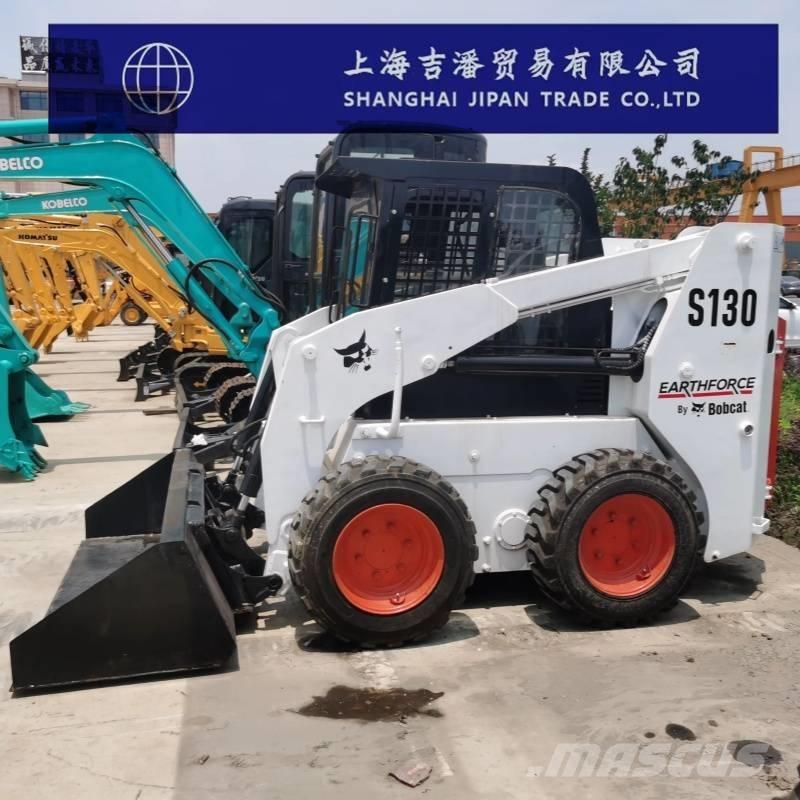

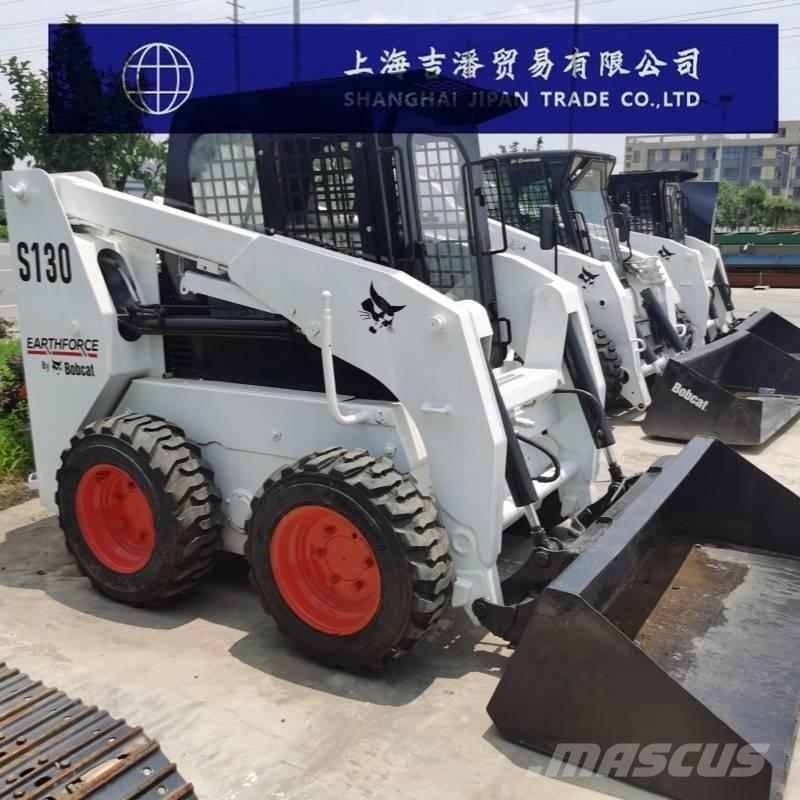

山猫 S 130

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance: Rated Operating Capacity: 597kg Tipping Load: 1195kg Operating Weight: 2465kg Lift Arm Type: Radial lift Engine: Model: Kubota V2203-M-DI-E2B-BC-3 Rated Power: 34.3kW at 2400rpm Maximum Torque: 150N·m/rpm Displacement: 2.2L Number of Cylinders: 4 Mobility: Maximum Travel Speed: 11.8km/h Tire Size: 10×16.5 Front Turning Radius (with bucket): 1745mm Departure Angle: 23° Hydraulic System: System Relief Pressure: 182.7–189.6bar System Rated Flow: 64L/min Fluid Capacities: Fuel Tank: 50.3L Working Range: Maximum Dump Height: 2100mm Dump Reach (at maximum height): 575mm Maximum Height of Bucket Hinge Pin: 2781mm Dump Angle at Maximum Dump Height: 40° Bucket Roll-back Angle on Ground: 25° Bucket Roll-back Angle at Maximum Height: 96° Overall Dimensions: Overall Length (without attachment): 2432mm Overall Length (with bucket): 3152mm Overall Width (tire edge): 1490mm Overall Height (to top of cab): 1964mm Wheelbase: 900mm Minimum Ground Clearance: 188mm
