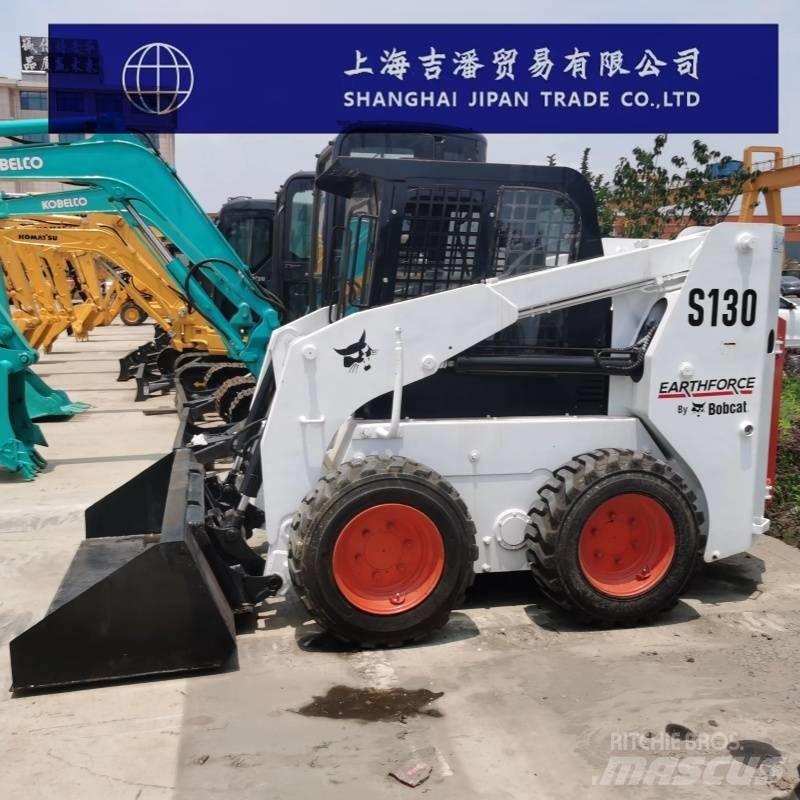

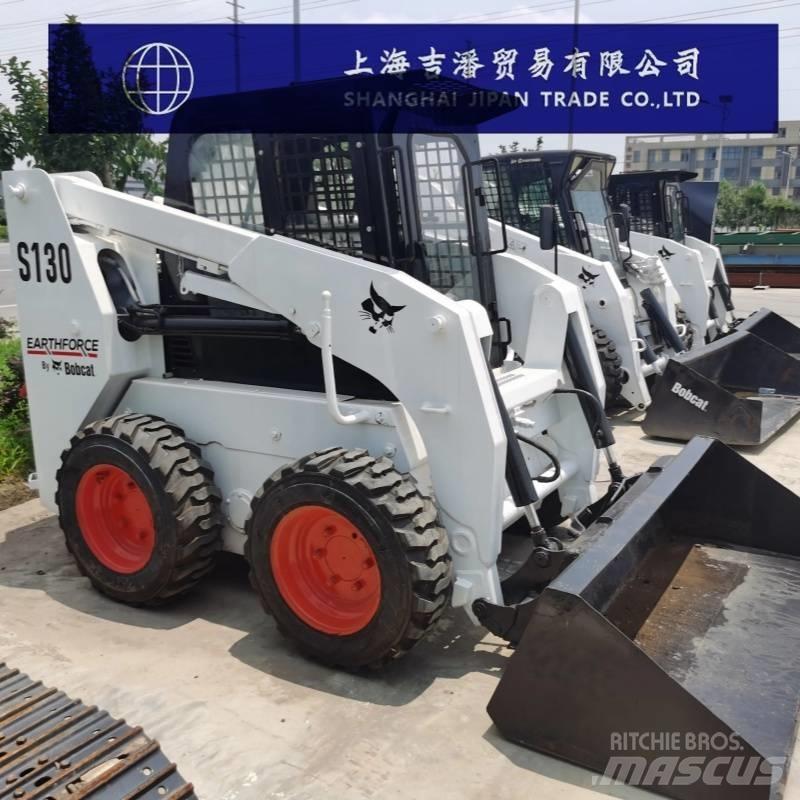

山猫 S 130

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameters and configuration of the Bobcat S130 skid steer loader Basic performance Rated loading capacity (kg) : 597 Overturning load (kg) : 1195 The total weight of the machine (kg) is 2465 The lifting mechanism form is radial lifting Load capacity (tons) : Less than 0.8 tons Engine Engine model: Kubota KUbota V2203-M-DI-E2B-BC-3 Rated power (kw/rpm)34.3/2400 Maximum torque (N.m)150 Displacement (L)2.2 The number of cylinders is 4 Through performance Maximum traveling speed (km/h) : 11.8 The tire size is 10×16.5 Front turning radius (with bucket) (mm)1745 Departure Angle (°)23 Hydraulic system System safety pressure (bar) : 182.7-189.6 System rated flow rate (L/min)64 Oil capacity Fuel tank (L)50.3 Scope of work Maximum unloading height (mm)2100 Unloading distance (at the maximum height) (mm)575 The maximum height (mm) of the bucket hinge pin is 2781 The unloading Angle (°) at the maximum unloading height is 40 The retraction Angle (°) of the bucket on the ground is 25 The retraction Angle (°) of the bucket at its highest point is 96 Whole machine specification Total length (with bucket) (mm)3152 Total length (without attachments) (mm)2432 Full width (tire edge) (mm)1365 Total height (to the top of the cab) (mm)1964 Wheelbase (mm) : 900 Full width (bucket edge) (mm)1398
