Vahva FORTI 200

不含税价格

Compnay LOGO
Images6Videos1

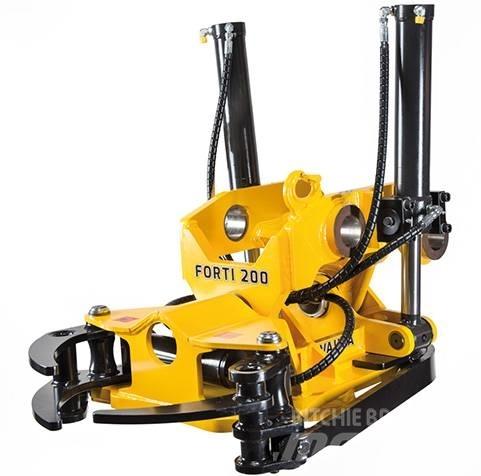

Vahva FORTI 200 旋转器
Vahva FORTI 200 旋转器
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
旋转器
品牌/型号
Vahva FORTI 200
生产年份
2015
附加选项
演示
设备所在位置
Saue
国家
爱沙尼亚
一般等级
1
2
3
4
5
马斯客 ID
24BE0111

定价

选择币种

详细信息

内部库存编号
VR50000
售后服务记录
是
下列机器的装配过程
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

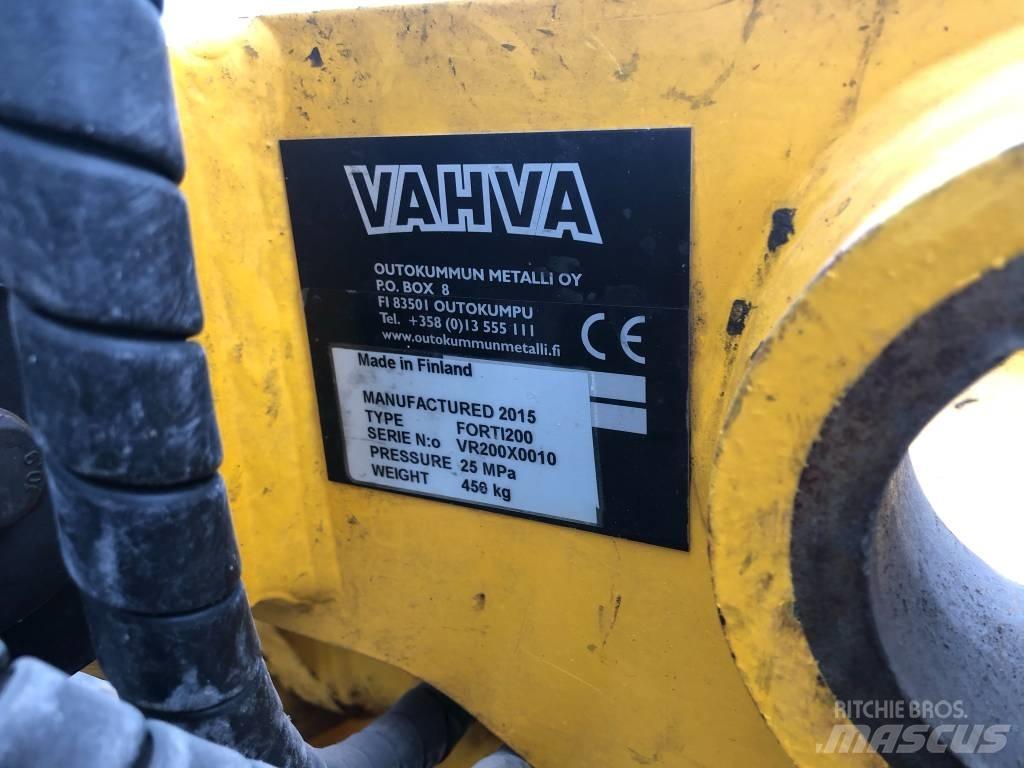

生产号/编号
VR200X0010
工作承压力
250 酒吧
需要的液压流量
80 l/min
运输状态重量
450 公斤
运输尺寸(长x宽x高)
990 x 720 x 280 mm
制造国
芬兰
成交条件
EXW
证书
CE认证
其他信息
A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.显示更多
