SCM nova s 520
不含税价格
1
收藏
分享
保存搜索打印
信息
类别
刨机
品牌/型号
SCM nova s 520
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
3DBC812D
定价
选择币种
详细信息
内部库存编号
90109
其他信息

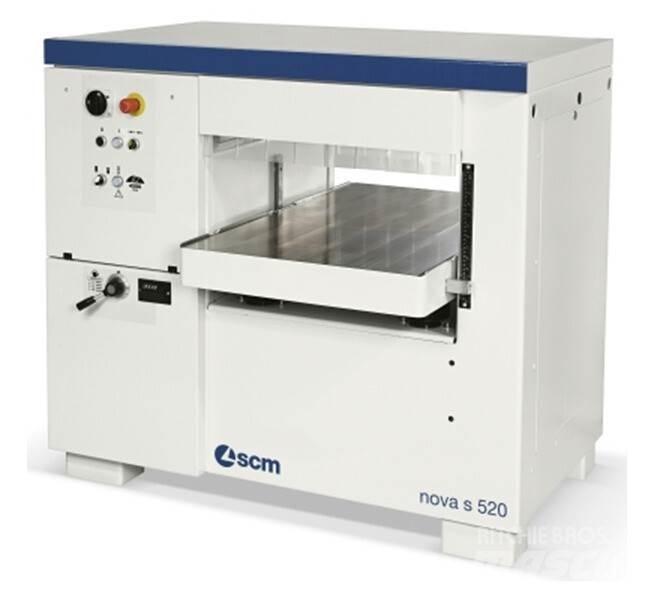

nova s520 Thicknessing Planer
Title: nova s520 Thicknessing Planer
SKU: 90109
Model: nova s 520
Condition: New
GeneralHorsepower:11hp
Max. Workpiece Width:520 mm / 20.47"
Max. Workpiece Thickness:300 mm / 11.81"
Type:Tersa
ElectricalVoltage:600volts
Phase:3-phase
Made In: ITALY
Dimensions: 54.80 (H) x 39.50 (W) x 44.90 (L) inches
"Tersa" cutterblock with throwaway knives
- complete with one set of knives
- No. 4 standard knives dimensions: 520 x 30 x 3 mm
Worktable dimension: 520 x 900 mm
Working height (min/max): 3.5/300 mm
Max. stock removal: 8 mm
Min. working length: 220 mm
Min. working width: 10 mm
Cutterblock speed: 4500 rpm
Cutterblock diameter: 120 mm
Feed speed: 5-8-12-18 m/min
Exhaust outlet diameter: 150 mm
Standard Equipment and Options
- Powered lifting of thicknessing table, 2 speeds with micrometric adjustment
- Numerical readout of working height with decimal control
- Thicknessing table with vertical moving by means of 4 steel screws
- 1st front roller in helicoidal steel
- No. 1 rubber coated steel outfeed roller
- Interchangeable feed rollers
- Cutterblock and knife fitting gibs with technical specs. and instructions engraved on same, complete with knife-setting device
- kW 7 Hz 50 (kW 8 Hz 60) motor power :
- [S1] 5.5kW 7.5HP 50Hz (6.6kW 9HP 60Hz)
- [S6 -40%] 7kW 9.5 HP 50Hz (8kW 11HP 60Hz)
- Direct start main motor (USA/Canada version)
- Manual star-delta start (electrical protections and CE versions)
- Service kit for use and maintenance
Additional Features
- Worktable with 2 idle rollers
- 1st infeed sectioned steel feed roller (in alternative to the helicoidal roller)
- Seaworthy packing显示更多
Lenmark Industries Ltd
27576 51a Ave V4W 4A9 Langley British Columbia 加拿大
