SCM minimax fs 41es
不含税价格
4
收藏
分享
保存搜索打印
信息
类别
刨机
品牌/型号
SCM minimax fs 41es
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
2D8CBB82
定价
选择币种
详细信息
内部库存编号
90119
其他信息

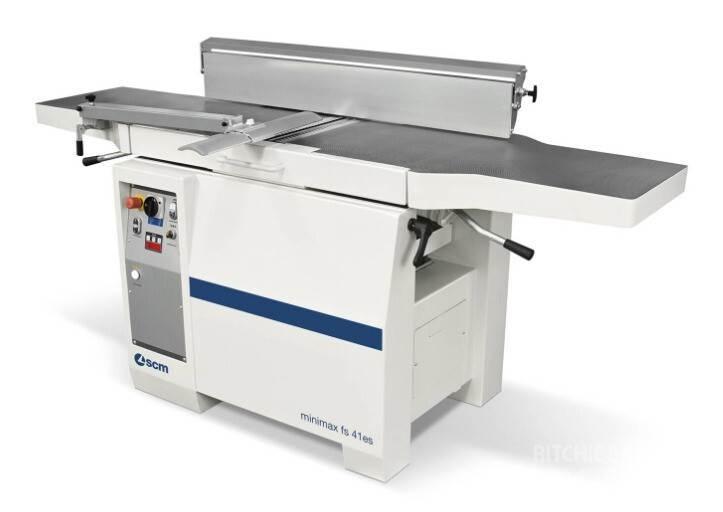

minimax fs 41es Surfacing-Thicknessing Planer w/ Xylent Spiralknife Cutterblock
Title: minimax fs 41es Surfacing-Thicknessing Planer w/ Xylent Spiralknife Cutterblock
SKU: 90119
Model: minimax fs 41es
Condition: New
GeneralHorsepower:4.8hp
Max. Workpiece Width:410 mm / 16.14"
Max. Workpiece Thickness:240 mm / 9.45"
Type:Xylent
ElectricalVoltage:230volts
Phase:Single-phase
Made In: ITALY
Dimensions: 3.64 (H) x 48.40 (W) x 86.60 (L) inches

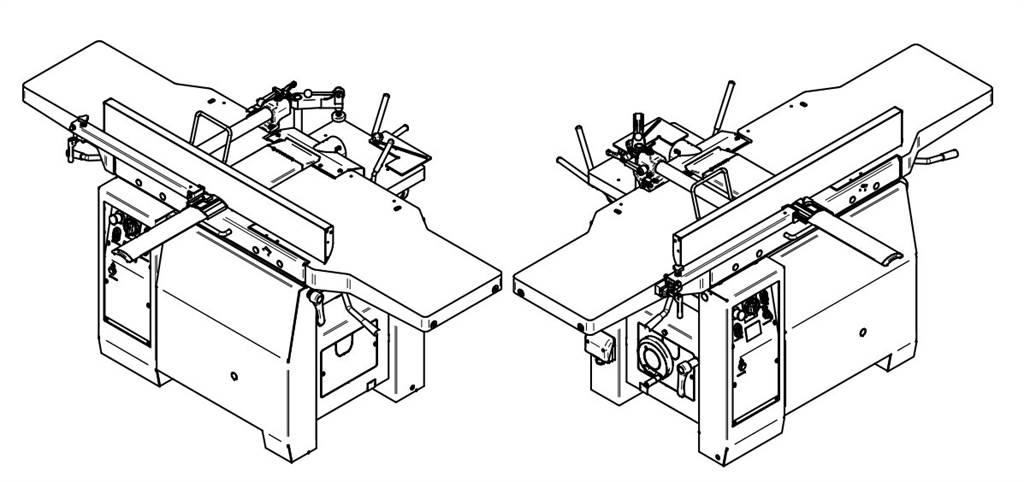

** Combination machine of Planer, Jointer
Xylent Spiralknife Cutterblock with 3 Series of Knives
Complete With:
- 95 mm diameter cutterblock
- No. 66 standard knives, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
- No. 1 dynamometric key for the correct and safe use of the locking
- No. 2 inserts for the dynamometric key
Max. Stock Removal: 5 mm
Surfacing Tables Total Length: 2200 mm
Thicknessing Table Dimensions: 410 x 775 mm
Feed Speeds on Thicknesser: 6 / 12 m/min
Min. / Max. Working Height on Thicknesser: 3 / 240 mm
Min. Working Length on Thicknesser: 180 mm
Exhaust Hoods Diameter: 120 mm
Standard Equipment
- Surface planer tables with simultaneous opening
- Dedicated surface planer fence (dimensions 1200 x 150 mm)
- Thicknessing table lifting by means of 4 columns dust protected
- Helicoidal thicknesser infeed roller
- Sandblasted steel thicknesser outfeed roller

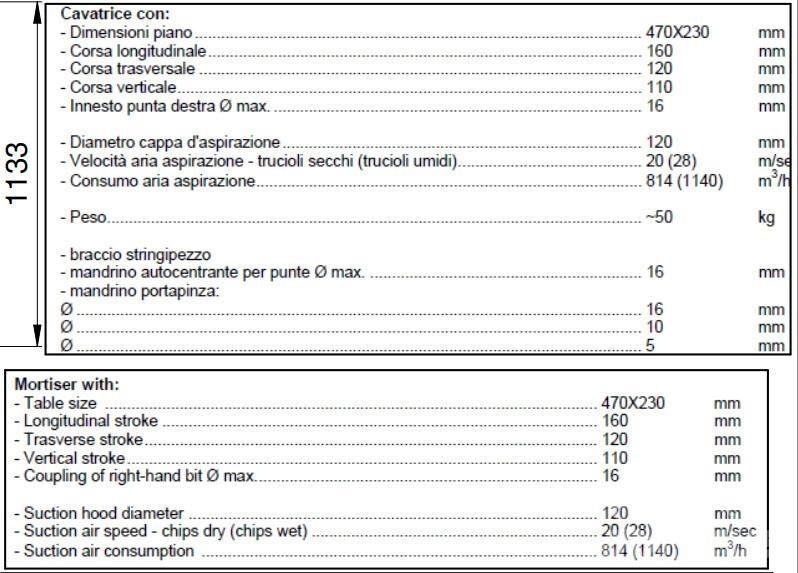

- Pre-setting for mortiser
- Mechanical readout (1/10 mm) for thicknessing table height
Additional Features
- Rubber-coated feed roller on thicknesser outfeed
- Xylent maintenance kit
- 10 spare inserts kit (15x15x2.5) for Xylent spindle
- Wheels for machine movement
- Self-braking motor
- Triple Wall
- Delivery Ex Factory
[PDF Brochure](... Footprints](...显示更多
