信息
类别
刨机
品牌/型号
SCM class s 630
附加选项
Used
设备所在位置
Langley, British Columbia
国家
加拿大
马斯客 ID
A9FBC3CB
定价
选择币种
详细信息
内部库存编号
135185
其他信息

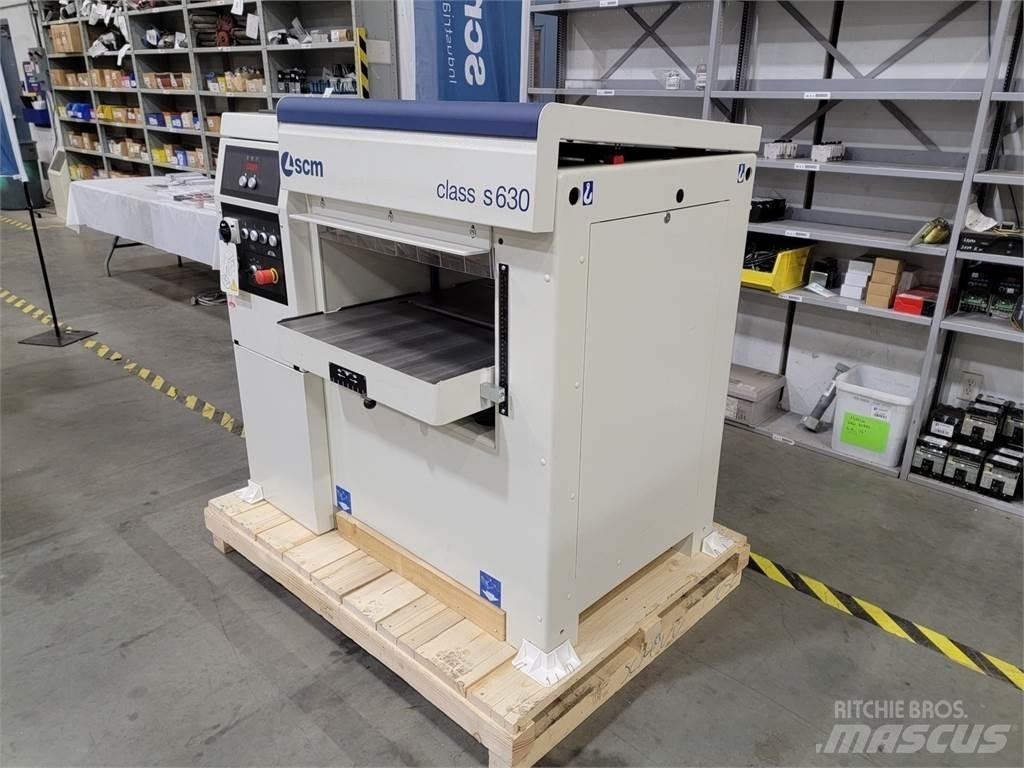

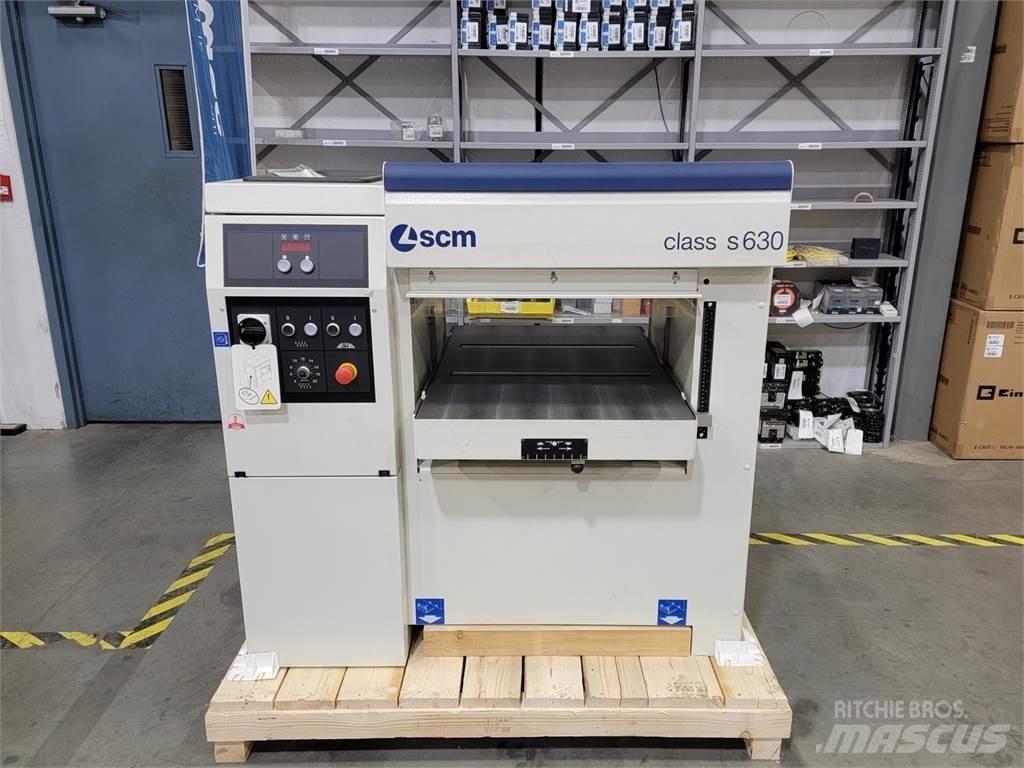

class s 630 Thicknessing Planer w/ Xylent Spiralknife Cutterblock
Title: class s 630 Thicknessing Planer w/ Xylent Spiralknife Cutterblock
SKU: 135185
Model: class s 630
Condition: New
GeneralHorsepower:15hp
Max. Workpiece Width:630 mm / 24.8"
Max. Workpiece Thickness:300 mm / 11.8"
Type:Xylent
ElectricalVoltage:600volts
Phase:3-phase
Dimensions: 55.00 (H) x 44.00 (W) x 51.00 (L) inches
"Xylent" Spiralknife Cutterblock with 3 Series of Knife
Complete with:
- No. 105 plates, 15x15x2.5 mm with 4 self-locking and self-centering screw knives
- No. 1 dynamometric key for the correct and safe use of the locking
- No. 2 inserts for the dynamometric key
Motor Power: 11 kW / 15 hp ... 60 Hz, complete with automatic star-delta start
Worktable dimension: 630 x 1000 mm
Working height (min/max): 3/300 mm
Max. stock removal: 8 mm
Min. working length: 260 mm
Min. working width: 10 mm
Cutterblock speed: 4500 rpm
Cutterblock diameter: 120 mm
Adjustable feed speed: 4-20 m/min
Exhaust outlet diameter: 150 mm
Standard Equipment and Options
- Powered lifting of thicknessing table, 2 speeds with micrometric adjustment
- Electronic digital readout of working height with decimal control
- Variable feed speeds of workpiece, electronically controlled by means of inverter from 4 to 20 m/min
- Thicknessing table with vertical moving by means of 4 steel screws
- 1st front roller in helicoidal steel
- 2 (two) outfeed top feed roller with rubber coating
- Interchangeable feed rollers
- Cutterblock and knife fitting gibs with technical specs. and instructions engraved on same with knife-setting device
Additional Features
- Thicknessing table with 2 idle rollers
- First sectional feed roller in steel alternative to the STD toothed roller
- Xylent maintenance kit
- 10 spare inserts kit (15x15x2.5) for Xylent spindle
- Seaworthy packing
[PDF Brochure](... Footprints](...显示更多
