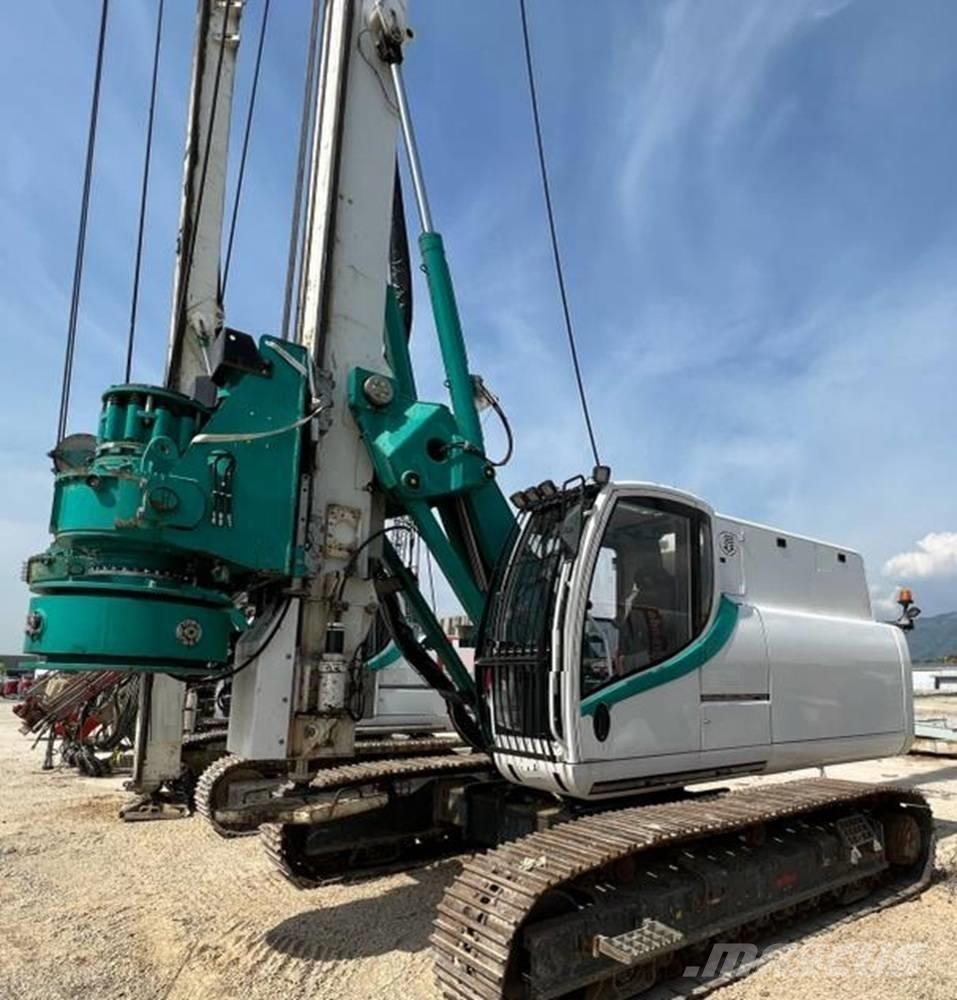

Casagrande B175XP

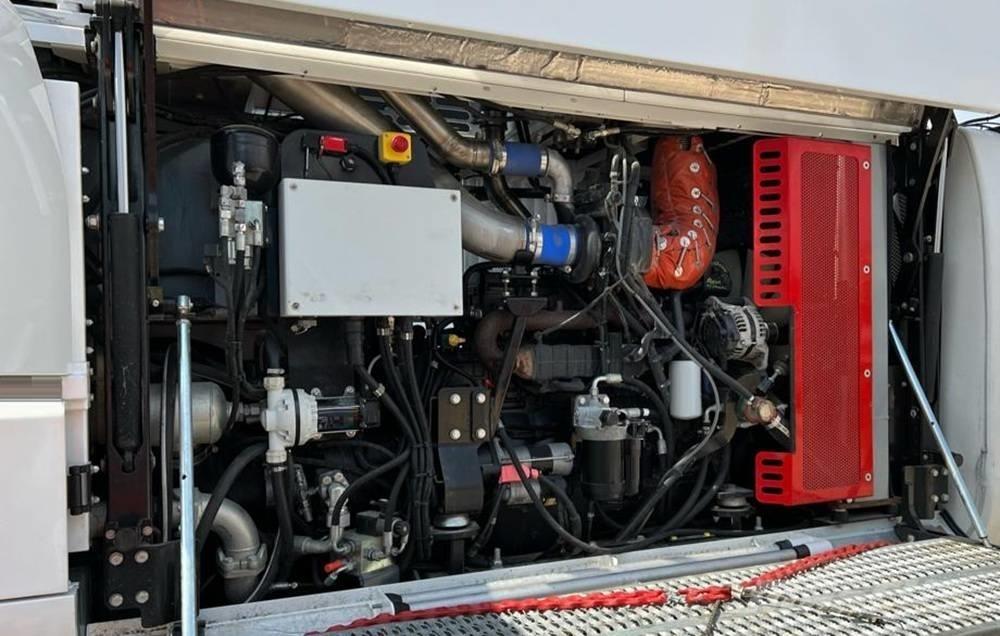

Piling rig with 4170 working hour Capable of bored piles, CFA & FDP Engine – Cummins QSB 6.7 194kW @ 2200rpm (Stage 4 / Tier 4F) Undercarriage 2500-3700mm (closed-open) Rotary head – H18 (max torque 175kNm with cardan joint) Winches – 160kN main, 70kN auxiliary Pull down winch – Crowd/extraction force 280kN, stroke 12,300mm Kelly bar – 4 x 7.5m interlocking (kelly box 130x130mm, diameter 355mm) Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R. CE Certified
