宝峨 MBF10

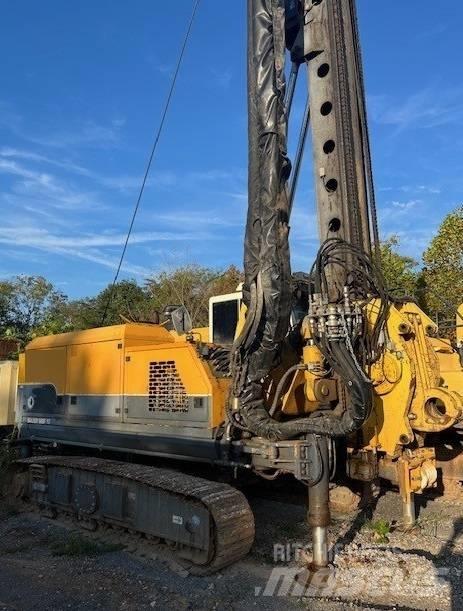

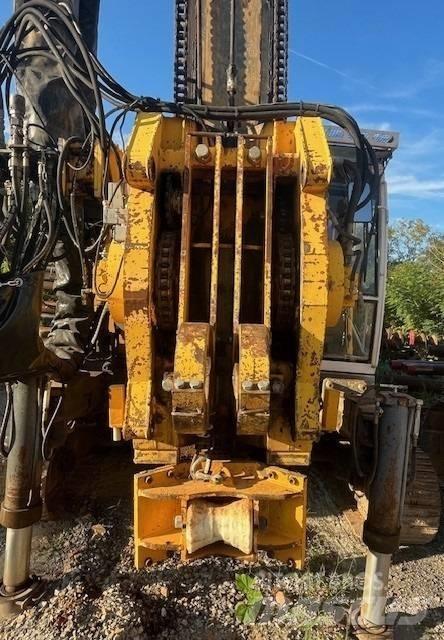

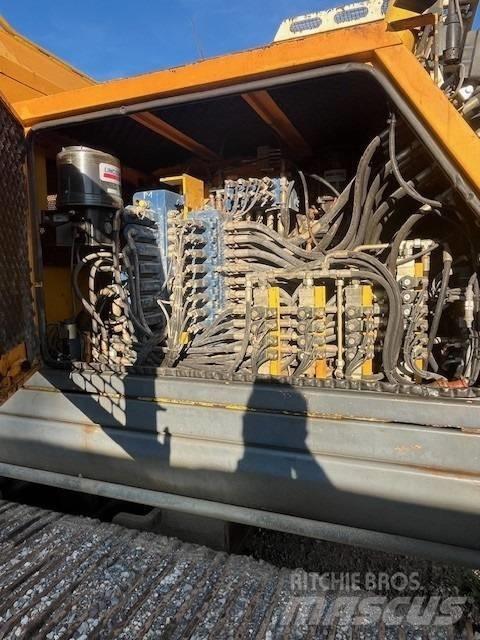

Bottom feed stone column vibro machine with 6750 operating hours Bauer MBF10 carrier with UW25 undercarriage Bauer B tronic data logging system Side dump bucket for CTL overall height 16m floor plate width 500mm overall width 2500-3300mm crawler length 4200mm width of track shoes 500mm traction force (effective) 210kN Cummins diesel engine (201kW @ 2000rpm, Tier lll) Hydraulic system – hydraulic power output 146kW oil flow 2 x 150 + 1 x 120L/min operating pressure 300bar hydraulic tank 400L 2 x TR17 vibro – max depth 10.1m, centrifugal force 193kN, eccentric moment 1.7kgm, frequency 53Hz operating weight 39.5T main winch 125kN (rope diameter 20mm) auxiliary winch 75kN (rope diameter 16mm) Ingersoll rand 375/150 air compressor - output 93kW, delivery rate 10.3 cubic metres per minute, delivery pressure 10bar Crowd system – crowd force (push/pull) 125/125kN Total pull (winch & chain) 225kN. 2 x TR17 vibro lances with hoppers
