PM 11023
不含税价格
向卖家询价
打印
信息
类别
其他起重机
品牌/型号
PM 11023
附加选项
未使用
设备所在位置
Milford, Massachusetts
国家
美国
一般等级
1
2
3
4
5
马斯客 ID
C665EA30
详细信息
附属装置
https://freecranespecs.com/PM/11023
其他信息
BOOM DETAILS
NEW – PM 11023 KNUCKLE BOOM: MANUAL OUT & DOWN STABILIZERS, 3 HYD EXTENSIONS TO 30’ HORIZONTAL REACH (42’ VERTICAL)
Horizontal Capacities:
11,680 lb ... 6’ 5”
5,490 lb ... 13’ 7”
3,541 lb ... 19’
2,480 lb ... 25’
2,050 lb ... 30’
Installed Behind the Cab on Custom, Sub-Frame by BIK, Prepped, Primed and Painted
New Air Operated PTO, Hydraulic Pump
Supply and Return Lines, Hydraulic Tank Mounted on Pedestal w/Shut-off Valve
Load Testing and Operator Orientation
Standard Features Include:
Manual Out and Hydraulic Down Outriggers w/Round Foot Pads Welded to Bottom of Stabilizers
Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
Sequential Boom Extensions
Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear and Improved Precision – 390-Degrees Rotation

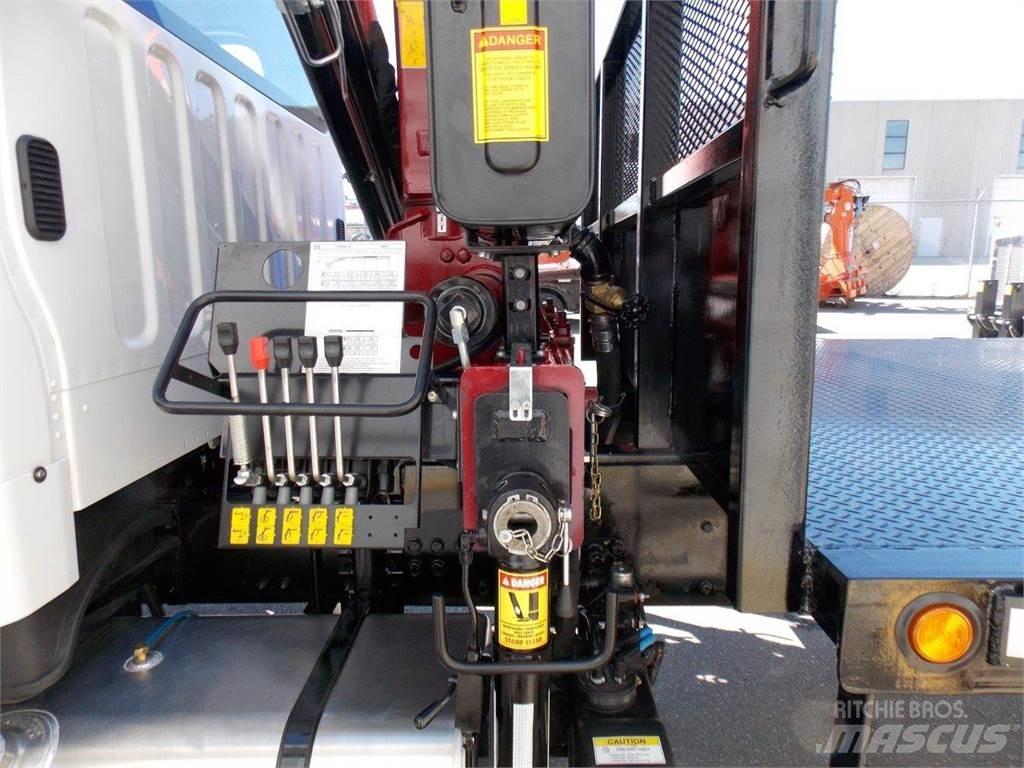

Dual Sided Ground Controls
Installed Back of Cab with Integral Sub-Frame to Meet or Exceed all CMVSS Standards
Load Tested, Stability Certification by Engineer
DECK DETAILS
NEW – 20’ X 102” STEEL FLAT DECK
Installed on Truck
48” Headboard
Steel Checker Plate Deck Surface
Conspicuity Tape and Reflectors
6 Sliding Winch Straps, Winch Bar & Holder
Dual Front Access Ladders
Headboard and all other Steel Painted Gloss Black
TRUCK DETAILS

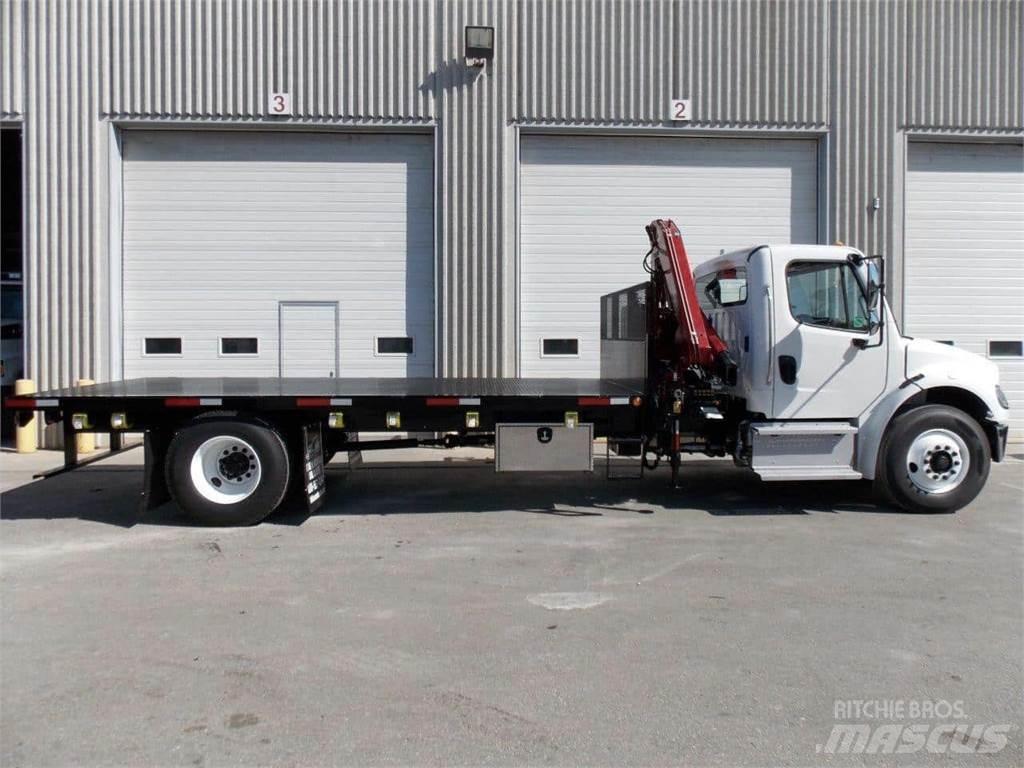

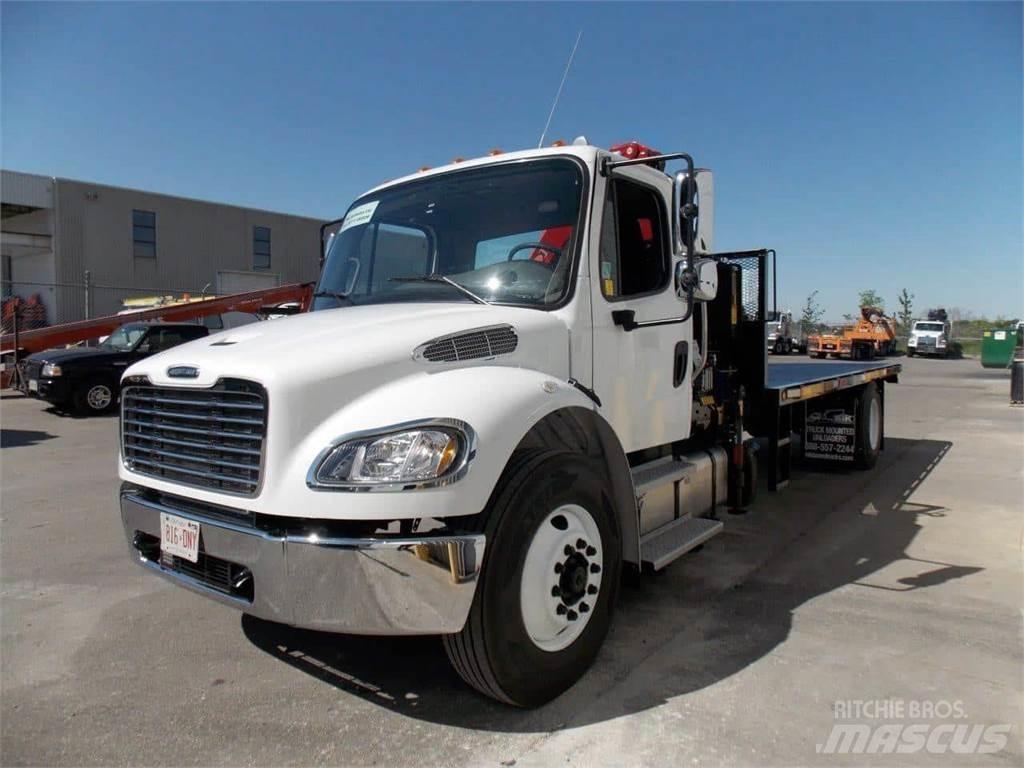

NEW – FREIGHTLINER M2-106 SINGLE AXLE DIESEL TRUCK: HYDRAULIC BRAKES – NON-CDL – 33,000 LB GVWR
Cummins Diesel – 260 hp – Allison Auto Trans
254” Wheel Base, Truck Cab White
12,000 lb Fronts, 21,000 lb Rears on Spring Suspension (33,000 lb GVWR) with 11R22.5 Tires on Steel White Rims
Hydraulic Brakes, 50-Gallon Fuel Tank, A/C, Cruise & Stereo
Painted Steel Bumper, Steel White Rim
Additional Options:
Under Body Aluminum Storage Boxes with Fold Down or Barn Doors
Self-Leveling Pallet Forks
PM 11523 with Radio Remote Control and Hydraulic Out & Down Outriggers
PVC Stabilizer Pad with Holders
